Shantui Srp90s Plus 9m Asphalt Concrete Slip Roller Road Paver
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：Field Maintenance and Repair Service
- Warranty：1 Year
- Type：Paver
- Object：Asphalt Concrete Pavement
- Moving Type：Mobile
- Mixing Method：Intermittent Compulsory
Base Info
- Model NO.：SRP90S PLUS
- Automatic Grade：Automatic
- Product Capacity：>400t,h
- Certification：ISO9001: 2000, CE
- Condition：New
- Width：9m
- Transport Package：Roro,Container,Bulk
- Specification：29000KG
- Trademark：SHANTUI
- Origin：China
- HS Code：84295100
- Production Capacity：100 Units, Month
Description
SRP90S PLUS paver is powered by China-III compliant Deeutz BF6M or SDEC SC9D turbocharged diesel engine, featuring low noise and emission, strong power, high reliability and durability, and powerful fuel adaptability.
The integrally openable engine hood and left and right doors make all repair and maintenance points, including all working pumps, control valves, and filter elements, easily accessible.
The centralized lubrication system supplies lubricating grease automatically to bearings of scraper conveyor and spiral distributor.
Shantui's latest generation paver intelligent operation management system achieves constant-speed paving and automatic changeover among diversified working conditions and incorporates the automatic malfunction diagnostic system to real-time monitor the machine.
- Specification
| Parameter name | SRP90S PLUS (Standard version) |
| Performance parameters | |
| Operating weight (Kg) | 29000 |
| Basic paving width (m) | 3-5.7 |
| Maximum paving width (m) | 9 |
| Maximum paving thickness (mm) | 350 |
| Maximum productivity (t/h) | 850 |
| Engine | |
| Engine model | SC9D/BF6M |
| Rated power/rated speed (kW/rpm) | 162/2000;159/2000 |
| Overall dimensions | |
| Overall dimensions of machine (mm) | 7800*9000*3800 |
| Driving performance | |
| Traveling speed (km/h) | 0~2.4 |
| Paving speed (m/min) | 0~18 |
| Chassis System | |
| Hopper | |
| Hopper capacity (t) | 15 |
| Working device | |
| Screed | AVS9030D |

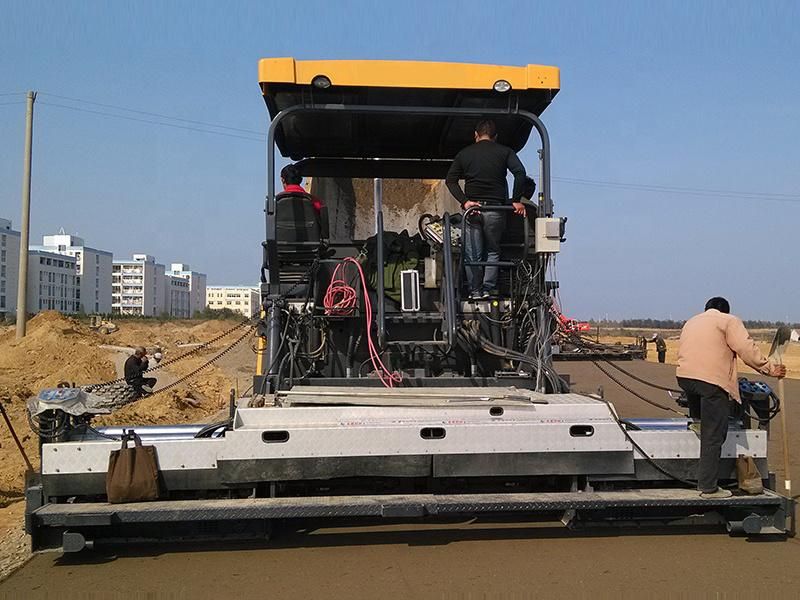

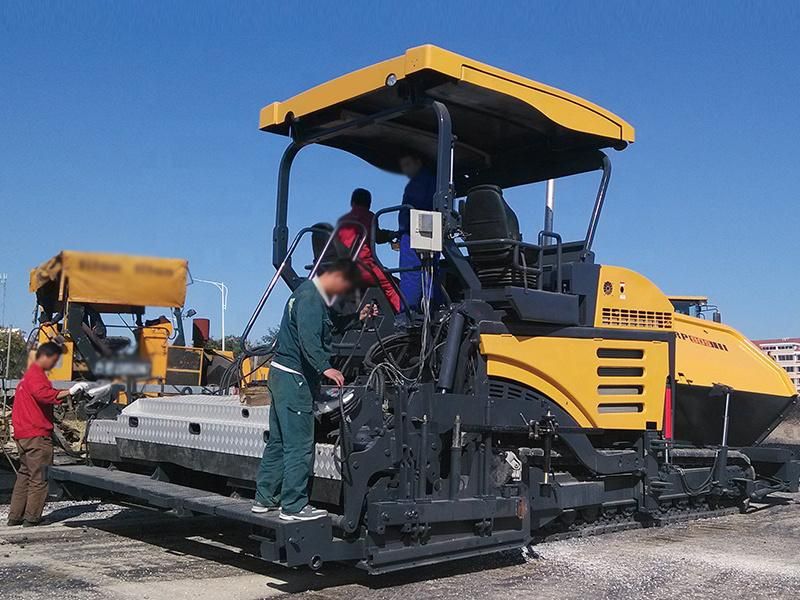

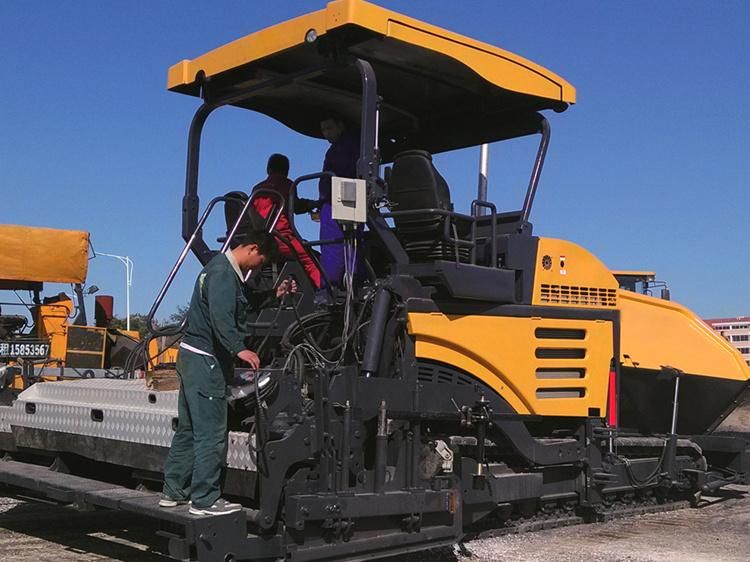

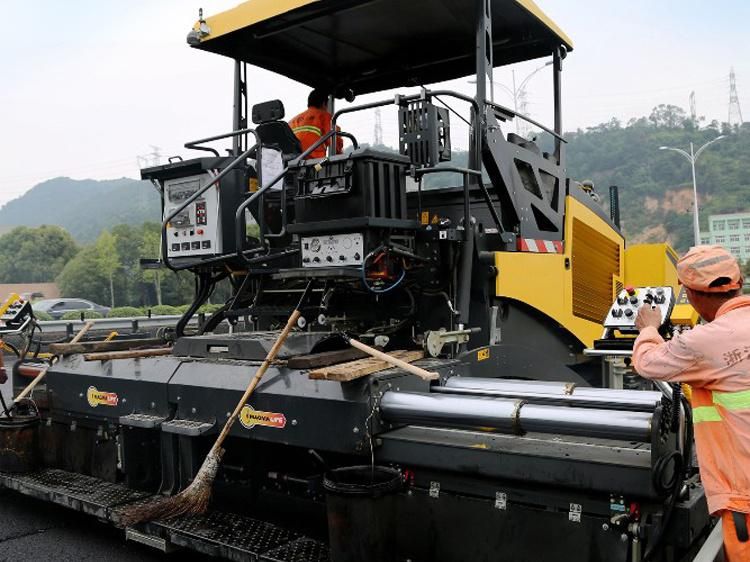

- Product Pictures
