40t 60t 80t 100t 120t 160t 200t 240t 320t 400t Stationary Asphalt Mixing Batching Plant Concrete Asphalt Production Line

HENAN SHENGMAO MACHINERY CO., LTD.
  • After-sales Service：Free Operation and Maintenance Training
  • Warranty：24 Months
  • Type：Asphalt Mixing Plant
  • Object：Asphalt Concrete Pavement
  • Moving Type：Fixed
  • Mixing Method：Continuous Mix

Base Info

  • Model NO.：LB750 LB1000 LB1200 LB1500 MDHB40 MDHB60 MDHB80
  • Automatic Grade：Automatic
  • Product Capacity：20thp-400thp
  • Certification：ISO9001: 2000, CE
  • Condition：New
  • Transport Package：Nude Packing
  • Trademark：shengmao
  • Origin：China
  • HS Code：8474320000
  • Production Capacity：20-120t,H

Description

Product Description ModelLB700LB1000LB1200LB1500LB2000Production Capacity (T/h)6080100120160Mixer Capacity (kg)7501000120015002000Dust Remove Effect (mg/Nm3)≤20≤20≤20≤20≤20Fuel Consumption (kg/t) (Oil)5.5-75.5-75.5-75.5-75.5-7Fuel Consumption (kg/t) (Coal)1010101010Aggregate Weighing Accuracy (%)±0.5±0.5±0.5±0.5±0.5Filler Weighing Accuracy (%)±0.25±0.25±0.25±0.25±0.25Bitumen Weighing Accuracy (%)±0.25±0.25±0.25±0.25±0.25

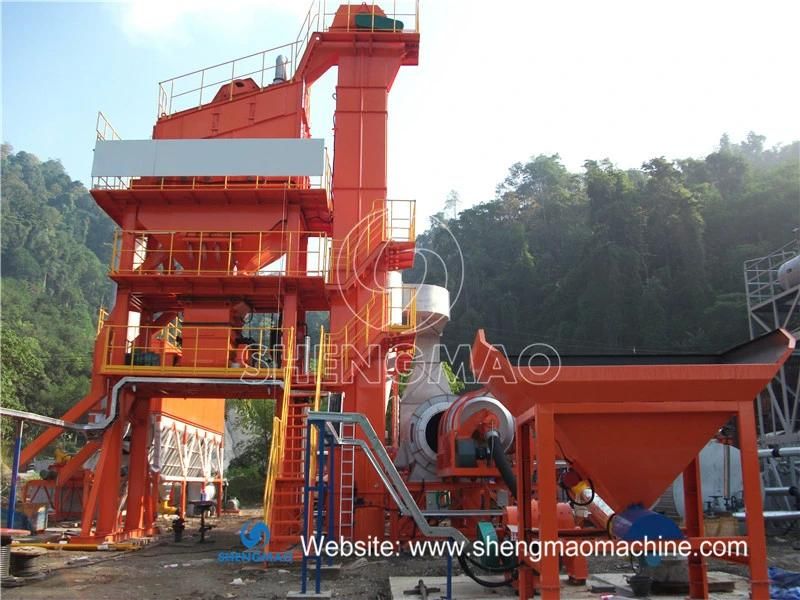

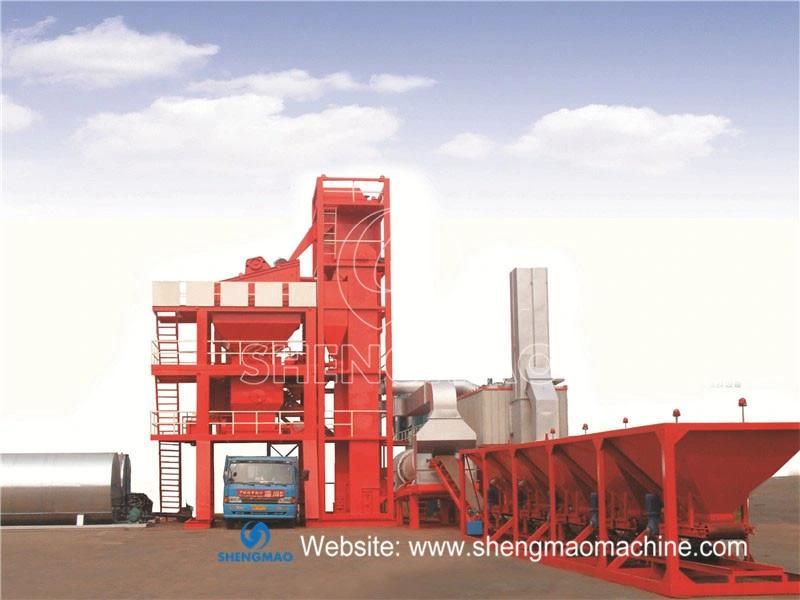

2). Pictures (LB1000)

Low Cost Lb1000 80tph Stationary Hot Mix Asphalt Mixing Plant SupplierLow Cost Lb1000 80tph Stationary Hot Mix Asphalt Mixing Plant Supplier
2. Drum type stationary asphalt mixing plant specification

1) Specification
 ModelDHB20DHB40DHB60DHB80DHB100Production   Capacity (T/h)20406080100Mixing   TypeContinuousContinuousContinuousContinuousContinuousDust   Remove Effect (mg/Nm3)≤100≤100≤100≤100≤100Fuel   Consumption (kg/t) (Oil)5.5-75.5-75.5-75.5-75.5-7Fuel   Consumption (kg/t) (Coal)10-1310-1310-1310-1310-13Aggregate   Weighing Accuracy(%)±1.5±1.5±1.5±1.5±1.5Bitumen   Weighing Accuracy(%)±1±1±1±1±1Total   Power (kw)5075128165200

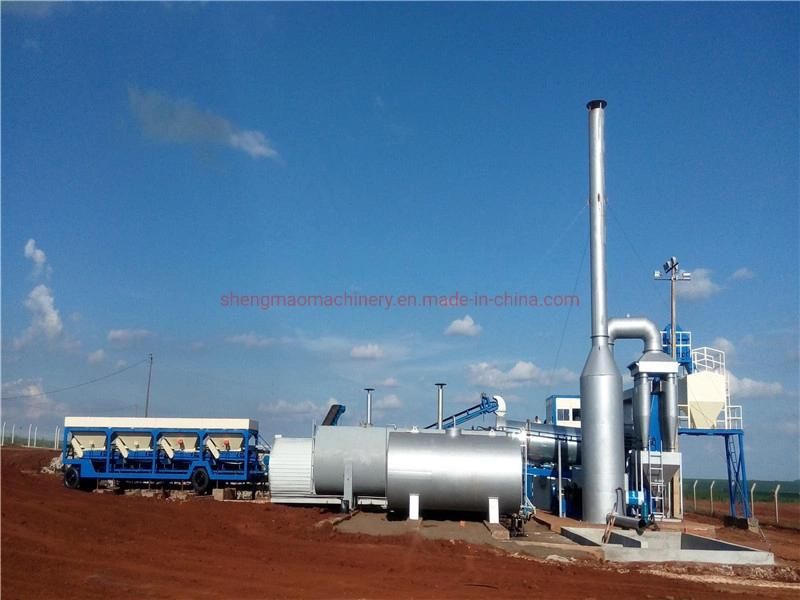

2) Pictures

40t 60t 80t 100t 120t 160t 200t 240t 320t 400t Stationary Asphalt Mixing Batching Plant Concrete Asphalt Production Line

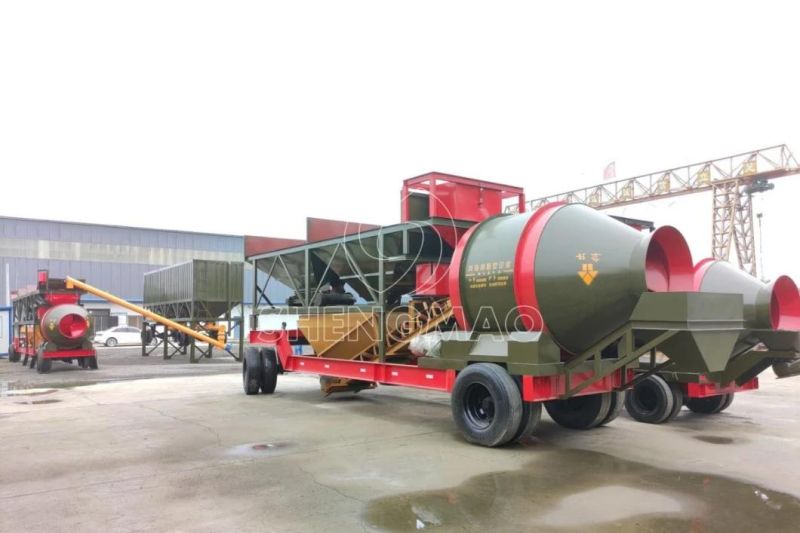

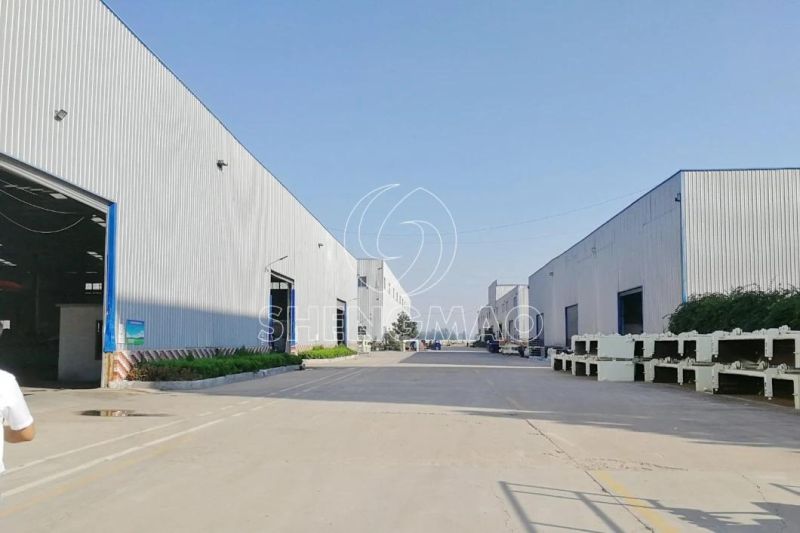

 Detailed Picture and SpecificationOur Projects20m3/H 30m3/H 60m3/H 100m3/H Ready Wet Mix Mini Small Portable Mobile Concrete Batching Mixing Plant20m3/H 30m3/H 60m3/H 100m3/H Ready Wet Mix Mini Small Portable Mobile Concrete Batching Mixing Plant Henan Shengmao Machinery Co., Ltd., founded in 2001, is located in Xingyang, Zhengzhou, Henan. Mainly engaged in the development, production, and sales of construction machinery. It covers an area of 80,000 m2 and has more than 700 employees, including 45 engineers, 80 professionals, 56 sales, and more than 500 technicians.The main products are concrete mixer, concrete batching plant, asphalt plant, horizontal cement silo, batching machine, screw conveyor, brick making machine, and other construction machinery. At present, the products are exported to more than 90 countries and regions such as Russia, Uzbekistan, Philippines, Sri Lanka, Malaysia, Indonesia, Bangladesh, Australia, USA, Chile, Argentina, etc.
