LC-Jc35/Jc40 Snow Plow Mini Skid Steer Loader Cheap Price for Sale
Guangxi Ligong Machinery Co., Ltd.- After-sales Service：Parts Replaceable
- Warranty：1 Year
- Certification：ISO, CE
- Condition：New
- Rated Load：500kg
- Transmission：Hydraulic
Base Info
- Model NO.：LC-JC35,JC40
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
- Type：Small Loader
- Max Speed(Km/H)：10
- Rated Power (Kw)：37
- Bucket Capacity (M3)：0.3
- Dumping Height(mm)：2050
- Engine Brand and Model：China Xinchai 490 Diesel Engine(Stage II)
- Driving Motor：USA Dan Foss Motor
- Cabin Model：Closed Cab
- Transport Package：by Container
- Specification：3080*1350*2000mm
- Trademark：LGMC
- Origin：Liuzhou
Description
Basic Info.
Model NO. LC-JC35/JC40 Load and Unload Mode Front Discharge Walking Mode Wheeled Type Small Loader Max Speed(Km/H) 10 Rated Power (Kw) 37 Bucket Capacity (M3) 0.3 Dumping Height(mm) 2050 Engine Brand and Model China Xinchai 490 Diesel Engine(Stage II) Driving Motor USA Dan Foss Motor Cabin Model Closed Cab Transport Package by Container Specification 3080*1350*2000mm Trademark LGMC Origin LiuzhouProduct Description

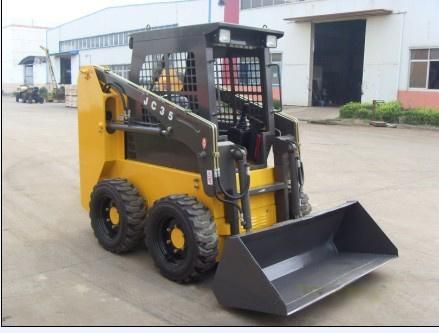

SKID STEERING LOADER(LC-JC35/JC40)Main Features1. Skid-steer loaders are typically four-wheeled or tracked vehicles with the front and back wheels on each side mechanically linked together to turn at the same speed, and where the left-side drive wheels can be driven independently of the right-side drive wheels.
2. Skid steer loaders, both wheel and track models, operate most efficiently when they are imbalanced - either the front wheels or the back wheels are more heavily loaded.
3. Unlike in a conventional front loader, the lift arms in these machines are alongside the driver with the pivot points behind the driver's shoulders
MINI SIZE, MULTIPLE FUNCTIONS
EASILY OPERATED AND FLEXIBLE
WIDELY USED IN ALL TERRAIN
CONFIGURATION ADJUSTABLE
| Model | JC35/JC40 |
| Operating load (kg) | 500 |
| Max Speed(km/h) | 10 |
| Rated flux (L/min) | 60 |
| High Flow Flux (L/min) | |
| Tire(track) model | 8.5-15 |
| Rated power (Kw) | 37 |
| Fuel tank capacity (L) | 60 |
| self weight bucket (kg) | 2300 |
| Bucket capacity (m3) | 0.3 |
| Overall operating height (mm) | 3300 |
| Height to bucket hinge pin (mm) | 2725 |
| height to top of cab (mm) | 2000 |
| Height to bottom of level bucket(mm) | 2558 |
| Overall length ithout bucket(mm) | 2300 |
| overall length with bucket(mm) | 3080 |
| Dumping angle at maximum height(° ) | 40 |
| Dumping height(mm) | 2050 |
| Dumping reach(mm) | 790 |
| Rollback o bucket on ground(° ) | 30 |
| Rollback of bucket at full height(° ) | 104 |
| Wheelbase(mm) | 897 |
| Ground clearance(mm) | 140 |
| Angleof departure(° ) | 20 |
| Front turning radins without bucket(mm) | 1098 |
| Front tuning radius(mm) | 1760 |
| Rear tuning radius(mm) | 1296 |
| Rear axle to bumper (mm) | 964 |
| ()Tread width,enterline to centerline (mm) | 1080 |
| ()Width (mm) | 1350 |
| Bucket width (mm) | 1400 |
| Engine brand and model | China Xinchai 490 diesel engine(STAGE II) |
| Main Pump | Italy Pump |
| Driving motor | USA DAN FOSS MOTOR |
| Working pump | China |
| Cabin model | closed cab |
| Travel type | Mechanical control system |
| Tire(track) model | 8.5-15 |
| Bucket size | 55" |
| Quick coupling model | hydraulic brake |
| Low temp. start systerm | low temperature start system+¥1600.00 |
LGMC (Guangxi Ligong Machinery Co., Ltd), a company that specialized in not only construction machinery, but also more than 2,000,000 machinery parts (included LIUGONG, S-D-L-G, XGMA, SHANTUI, SEM, Ko-matsu, CAT, Doosan, and so on), having all the engineering that can be used in the manufacturing industry, construction industry, general industry, and even agriculture. Those machines have been widely used everywhere with multiple functions. LGMC focuses on heavy machinery investment in research and development of small machinery, winning great popularity in aboard markets. In here you can find everything no matter what you want.
Having a great advantage of location, LGMC located in Liuzhou, a city that has extensive rail connections with the rest of China, is the home of LiuGong Company, the biggest industrial base of Guangxi Province. In line with the principle of "Honesty, High quality, Reliability, and Efficiency", LGMC has won great recognition in the market in just a few years, has gained support from major domestic manufacturers and trade organizations as well. LGMC occupied the market relies on the good product quality, good after-sales service and exported to South Asia, Southeast Asia, Africa, South America, Mid East, Eastern Europe, and other regions. 24 hours 7 days stand by with a professional selling team, solves all kinds of problems on time, and provides specialized commentary of your questions. Always ready to welcome you and help to have a great cooperation experience.
