• Material：Nm400 or Q345b
• OEM：Yes
• Color：Yellow or Any Color Could Do
• Transport Package：Plywood Box for Export
• Trademark：YTCT
• Origin：Yantai China
• HS Code：8412210000
• Production Capacity：3000

Basic Info.

Material Nm400 or Q345b OEM Yes Color Yellow or Any Color Could Do Transport Package Plywood Box for Export Trademark YTCT Origin Yantai China HS Code 8412210000 Production Capacity 3000

Product Description

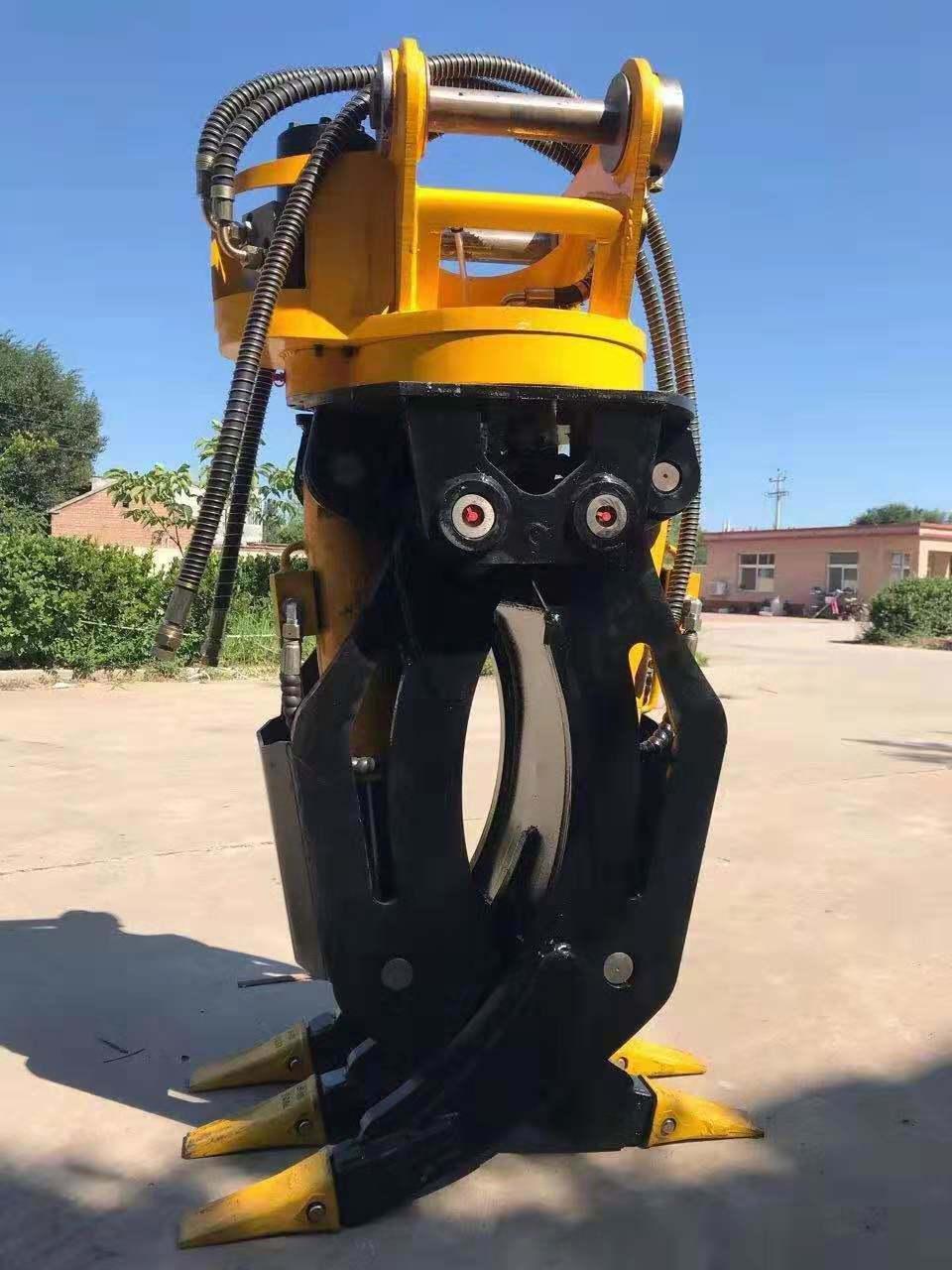

1.Products show

Wood / Stone Grapple Main Features:

1). Unlimited clockwise and anti-clockwise 360° rotatable swing bearing  system;

2). Equipped with  German-made M+S motor, more powerful and stable;

3). Using handles to operate the grapple which is more comfortable and flexible for driver;

4). Original German oil seals, balance valve, safety valve making cylinder more durable and safe;

5). Brake valve making it safer from inertia or accidents.

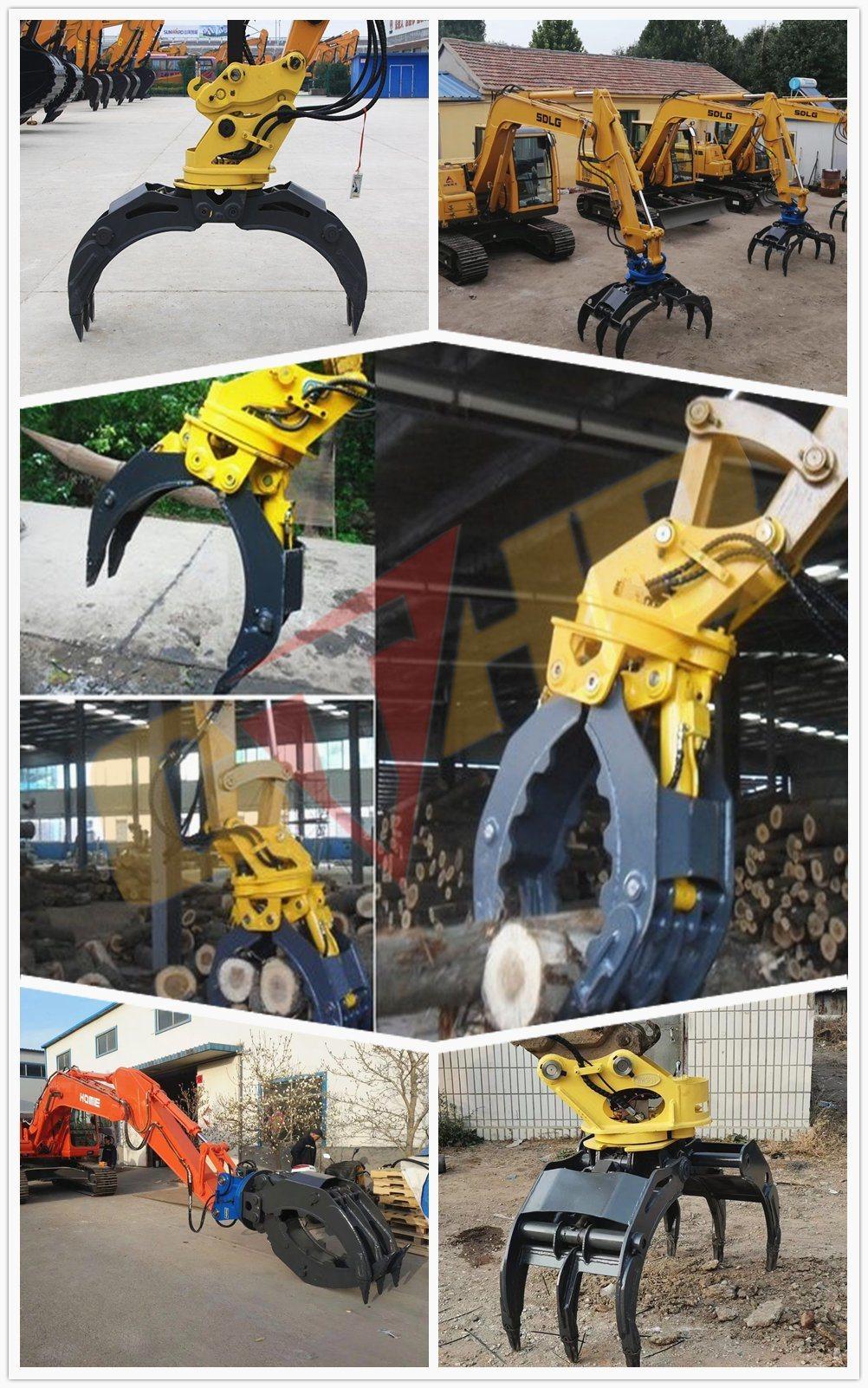

2.Working sence




3.ROTAING WOOD GRAPPLE

Applications

Wood and other large scraps handing,moving,loading and organizing.

Main features

Driven by M+S motor with brake valve;cylinder with USA safety valve (USA SUN brand).

3+2,4+3,5+4 fingers for yours option

Thorttle,pressure reducing valve,relief valve(all the valves are USA SUN brand)are in electrical and hydraulic control system,making it safer and much more stable and durable in use.


Category	Unit	YTCT-02	YTCT-04	YTCT-06	YTCT-08	YTCT-10	YTCT-17
Max jaw opening	mm	1300	1400	1800	2300	2500	2500
Oil pressure	kg/cm²	110-140	120-160	150-170	160-180	160-180	180-200
Operating flow	lpm	30-55	50-100	90-110	100-140	130-170	200-250
Max.cylider force	ton	4.0*2	4.5*2	8.0*2	9.7*2	12*2	121*2
Weight	kg	320	390	740	1380	1700	1900
Carrier	ton	4-6	7-11	12-16	17-23	24-30	31-40

3.Our certificate



4.Packing &Spare parts &delivery

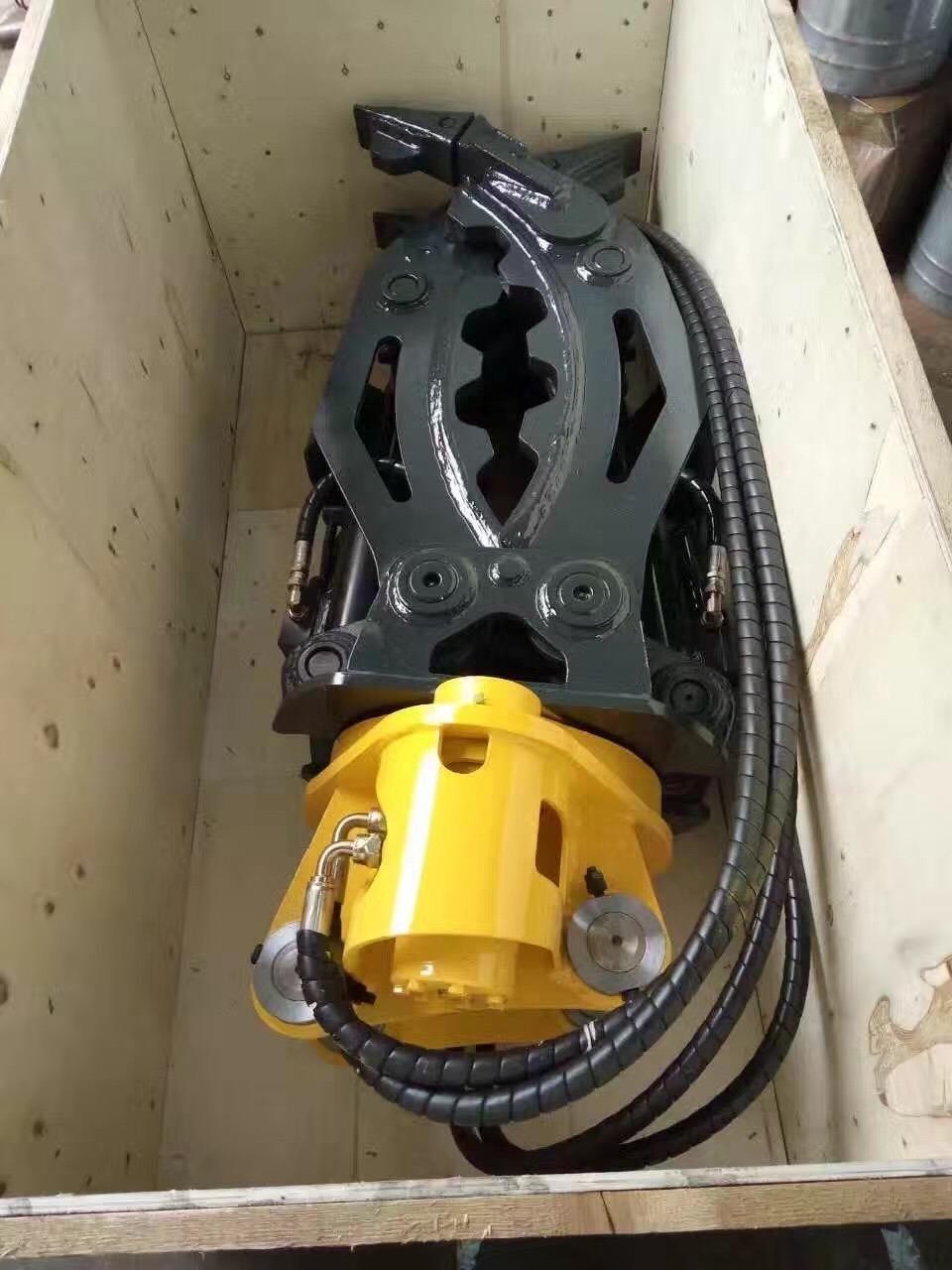

5.Packing

1. Standard export package by poly-wood case

2. Loading port from Qingdao or any port of China



6.After-service

1. 14 months warranty after delivery

2. Enough stock for wear parts

3. Competitive maintenance cost

4. High efficiency after-service respone
