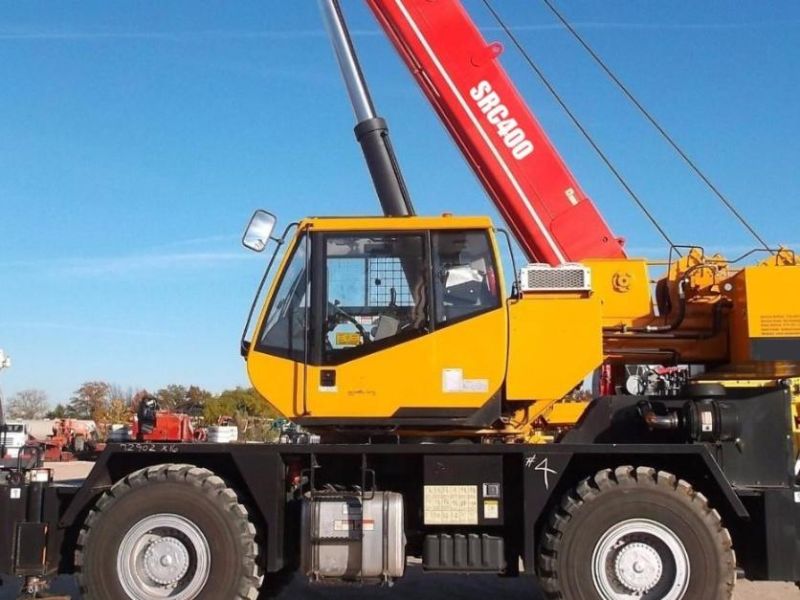

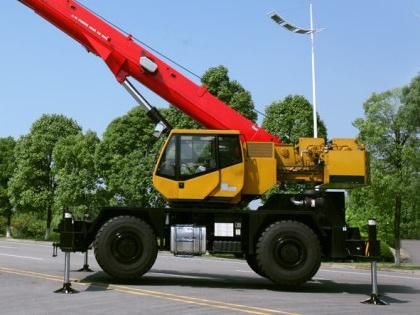

Src400c 40t Rough Terrain Truck Mounted Crane
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service:Online Support
- Warranty:Online Support
- Overall Length:12200mm
- Transport Package:1*40fr+10*40hq
- Specification:15530*4000*2800mm
- Trademark:SINOMADA
Base Info
- Model NO.:SRC400C
- Origin:China
- Production Capacity:50000PCS,Year
Description
Dimensions and Weights Model of engine
QSB6.7Rated engine power
119/2500
hp/rpm Max. engine torque 730 N.m/1500 rpm Max. travelling speed 25 km/h Working fuel consumption per hour 17 l/h Turning radius,min 6200 mm Min. turning radius of boom head 12200 mm Wheel formula 4×4 Min. ground clearance 450 mm Approach angle 15,5° Departure angle 15.2° Max. gradeability 105% Standard toolbox included Fire extinguisher included Heating system in cab included Max. rated lifting capacity 40 t Min. rated range 2,5 m Tail slewing radius of swingtable 1828 mm Boom section 4 Boom shape U-shaped Base boom
Full-extended boom
Full-extended boom+jib 10 m
31,5 m
45,2 m Outrigger span (Longitudinal x Transversal) 6150 x 6150 mm Jib offset 0° 15° 30° Max. single rope lifting speed of main winch (no load) 130 m/min Max. single rope lifting speed of auxiliary winch (no load) 130 m/min Full extension/retraction time to boom 36/36 s Full lifting/descending time to boom 50/60 s Slewing speed 2.8 r/min Temperature range -25°C till +40°C High Voltage Detector included
QSB6.7
hp/rpm
Crane Superstructure
Full-extended boom
Full-extended boom+jib
31,5 m
45,2 m
