• Size：Small-Scale
• Certification：CE, ISO9001: 2000, EPA
• Condition：New
• Engine：Laidong, Yanmar,Kubota
• Engine Power：19.6kw,34kw
• Climbing Gradient：30°
• Total Length：4200 mm
• Total Width：1500 mm
• Total Height：2200 mm
• Crawler Length：2300 mm
• Crawler Width：250 mm
• Maximum Digging Depth：2500 mm
• Maximum Dumping Height：2600 mm
• Maximum Digging Radius：4040 mm
• Warranty：1 Year
• Multifunction：Auger, Hammer, Rake, Ripper, Gripper
• Other Product：Backhoe Loader, Self Loading Concrete Mixer
• Product Usage：Digging Machine
• Transport Package：Container
• Specification：HX35
• Trademark：HIXEN
• Origin：China
• HS Code：84295212
• Production Capacity：200units,Month

Basic Info.

Size Small-Scale Certification CE, ISO9001: 2000, EPA Condition New Engine Laidong/ Yanmar/Kubota Engine Power 19.6kw/34kw Climbing Gradient 30° Total Length 4200 mm Total Width 1500 mm Total Height 2200 mm Crawler Length 2300 mm Crawler Width 250 mm Maximum Digging Depth 2500 mm Maximum Dumping Height 2600 mm Maximum Digging Radius 4040 mm Warranty 1 Year Multifunction Auger, Hammer, Rake, Ripper, Gripper Other Product Backhoe Loader, Self Loading Concrete Mixer Product Usage Digging Machine Transport Package Container Specification HX35 Trademark HIXEN Origin China HS Code 84295212 Production Capacity 200units/Month

Product Description

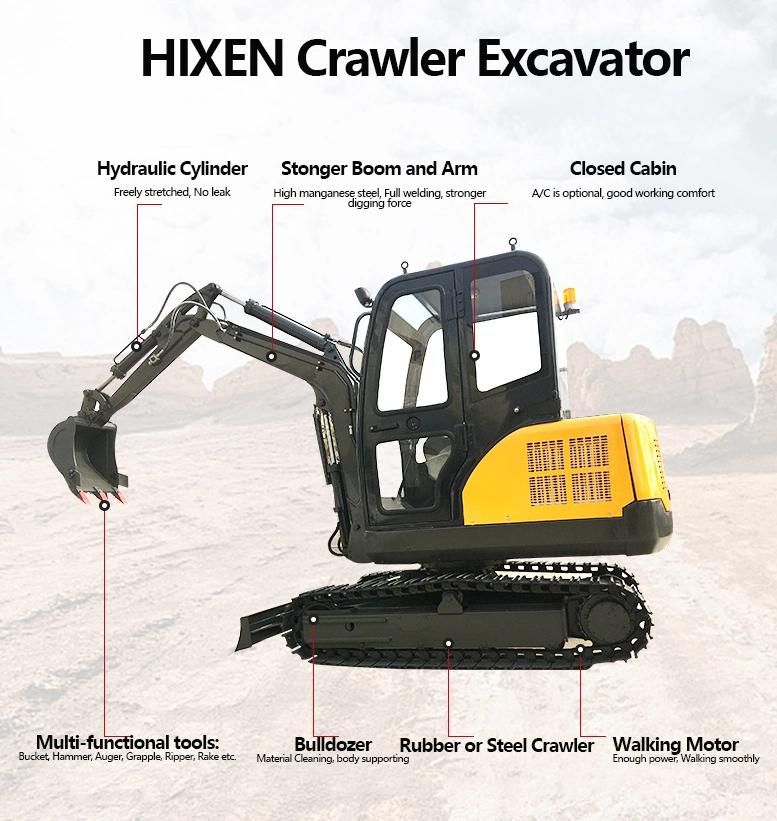

 HIXEN  3.5 Ton mini  Excavator Machine

1. Optional Yanmar (EPA certified) / Changchai / Laidong engines, meeting the environmental protection standard .
2. It adopts the high-precision 8-way multi-way valve. The valve core has its own buffer function and is controlled
by ECU computer, which makes the action more flexible. 3. It is fully hydraulic pilot control, making the whole machine more flexible.4. Adopting Japan NACHI / American EATON hydraulic motor, small size, light
weight, high efficiency and long service life.5. The boom can swing from side to side with high flexibility to meet the needs of
small space operations. 6. The standard engineering rubber track with wear-resistantance and durance, Steel track is optional.

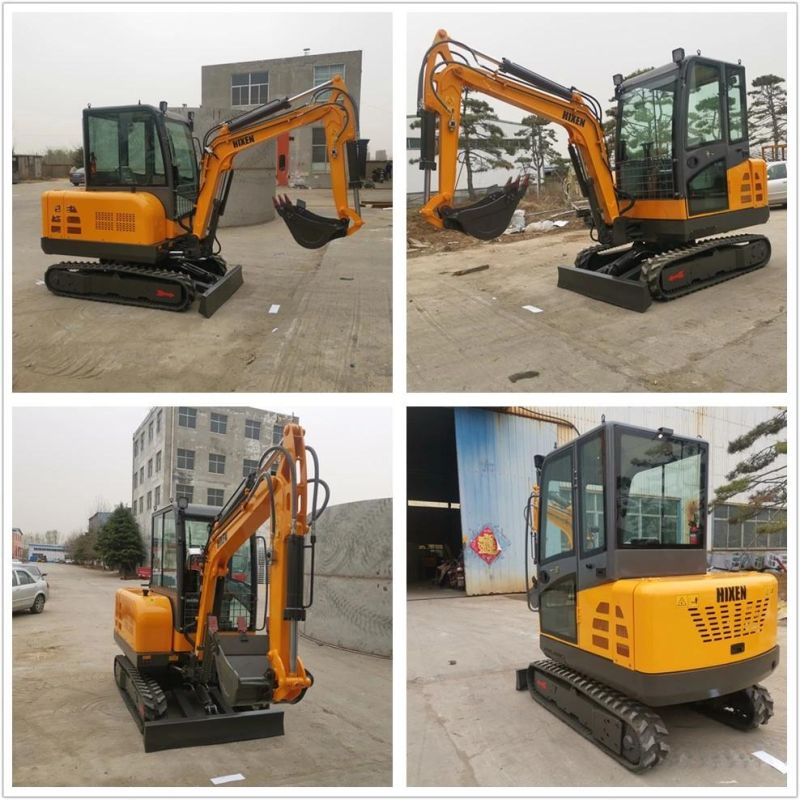

Here is the HX35 model mini digger with open cabin,  the right choice for you.
HX35 Technical Specification

1	Name	Crawler Excavator
2	Model	HX35
3	Bucket capacity	0.1m³
4	Engine	Yanmar 3TNV88,   19.6KW/ Laidong, 22.1Kw
5	Walking speed	2.7 Km/h
6	Rotation speed	10r/min
7	Total length	4200 mm
8	Total width	1500 mm
9	Total height	2200 mm
10	Crawler length	2300 mm
11	Crawler width	250 mm
12	Body width	1350 mm
13	Maximum digging height	3900 mm
14	Maximum dumping height	2600 mm
15	Maximum digging depth	2500 mm
16	Maximum digging radius	4040 mm
17	Platform clearance to ground	458 mm
18	Swing angle	360°
19	Climbing gradient	30°

Product Display:

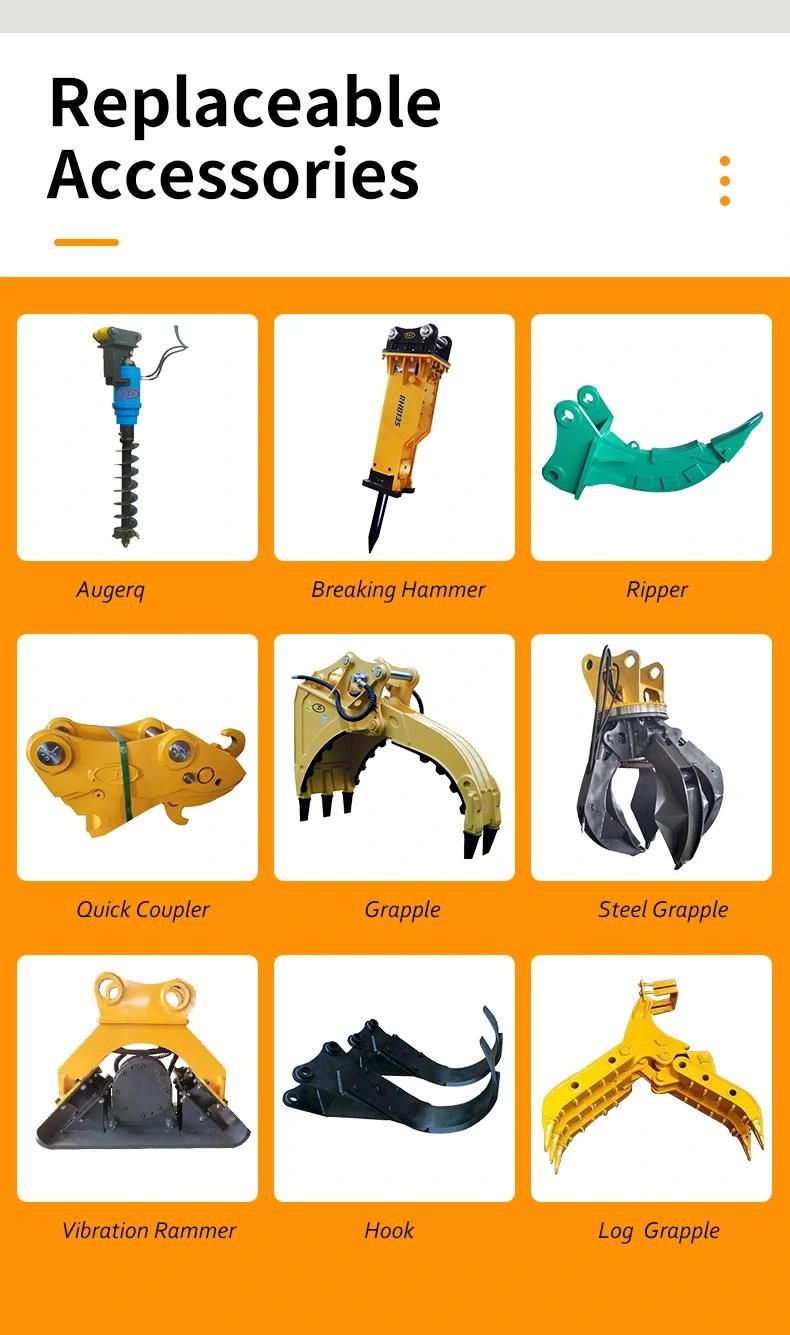

HIXEN crawler excavator is equipped with the backup hydraulic oil pipeline, in which a lot of tools
can be fitted. It's mainly including but not limited as the following: Breaking hammer, auger, rake,
grapple, fork, bucket etc.

>> FAQ:

Q1. What is the delivery period?
 After receiving the initial payment, the goods will be ready for delivery within 5 days. The rest time depends on the distance and transport method which need to be negotiated.

Q2. What is the payment terms can you accept?
 30% initial payment, 70% balance payment when the goods are ready for delivery by T/T.

Q3. How long is the product guarantee?
 We provide one year quality guarantee.

Q4. What kind of service could you provide?
 1) Pre-sale service: we could assist you finding the suitable equipment according to your requirement.
 2) On-sale service: we strictly follow the commercial rules, contract signing, following the production process, controlling the goods quality, tracking the goods delivery, guaranteeing you receive the qualified goods safely.

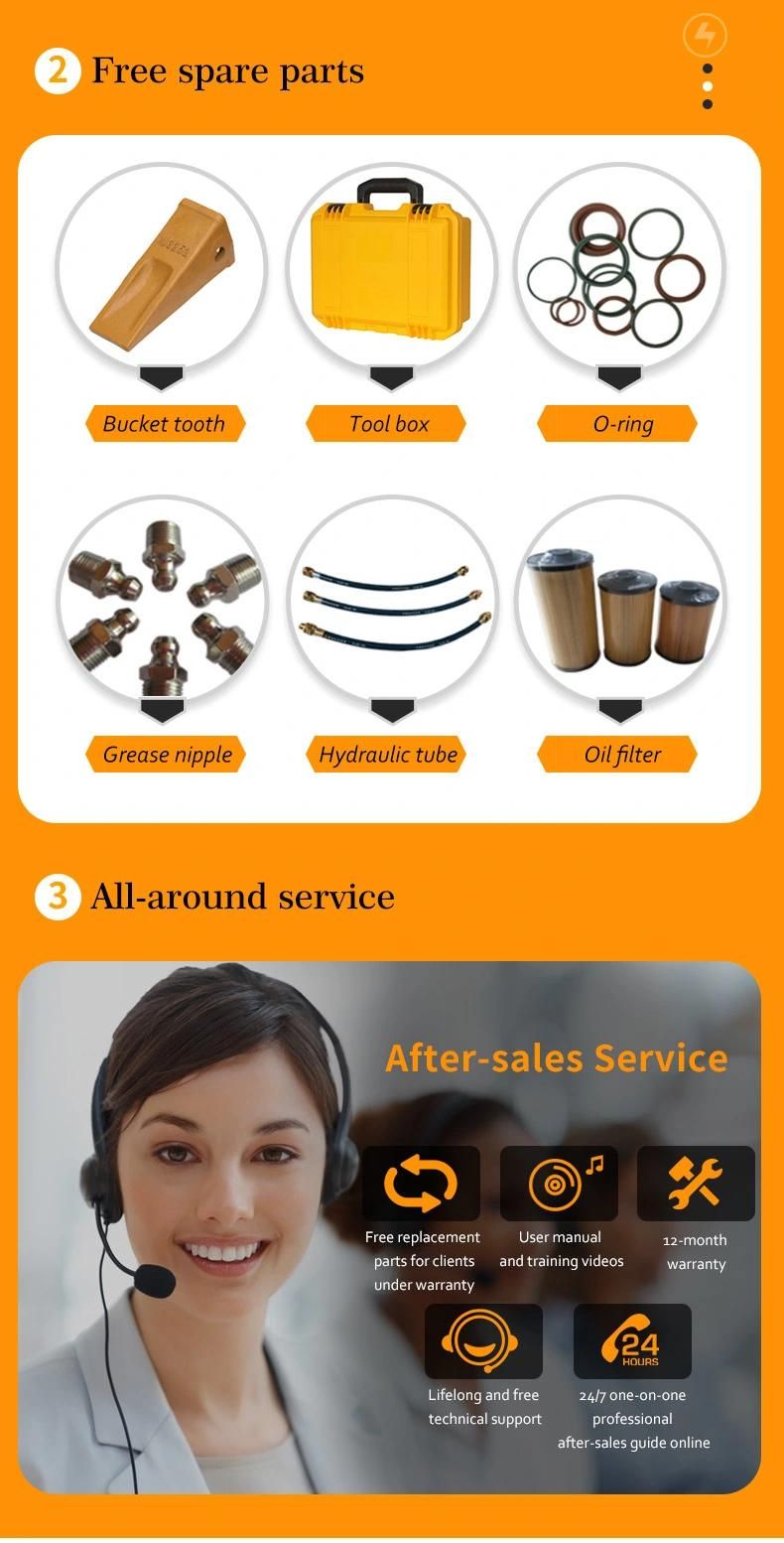

 3)After-sale service: we provide some consumables with the equipment;
  We have operation manual for instructing the basic installation and operation; video guidance for trouble shooting; engineers ready for field maintenance and repairing when necessary.

Q5. Can we have the special order like specification change, logo making?
Yes, we accept the customization. We can make it clear in the contract and then our technical start design and production as per your requirement.

For more questions, please feel free to contact us. We sincerely welcome all friends paying visits to us and reach a mutual success!
