• Model NO.：SE215
• Drive Type：Electric Drive
• Bucket Capacity：0.1~0.5m³
• Size：Small-Scale
• Certification：CE, ISO9001: 2000
• Condition：New
• Transport Package：Nude Package
• Specification：13500kg
• Trademark：SHANTUI
• Origin：China
• HS Code：84295212
• Production Capacity：500units,Year

Basic Info.

Model NO. SE215 Drive Type Electric Drive Bucket Capacity 0.1~0.5m³ Size Small-Scale Certification CE, ISO9001: 2000 Condition New Transport Package Nude Package Specification 13500kg Trademark SHANTUI Origin China HS Code 84295212 Production Capacity 500units/Year

Product Description

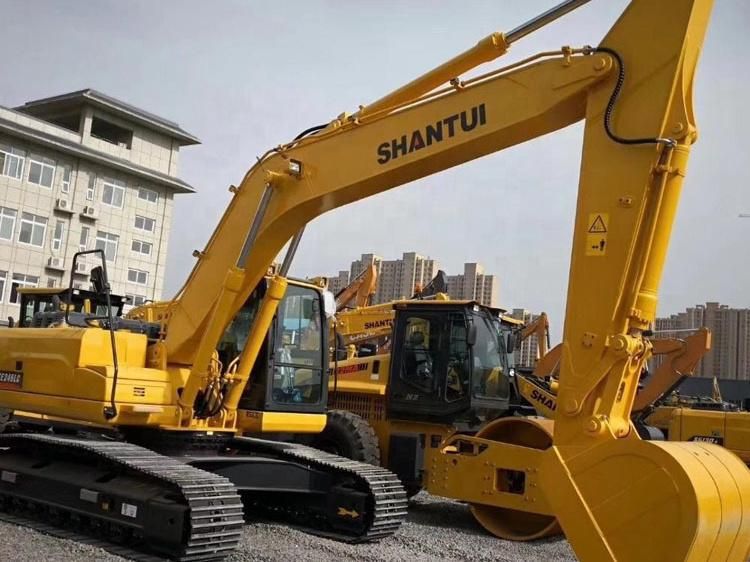

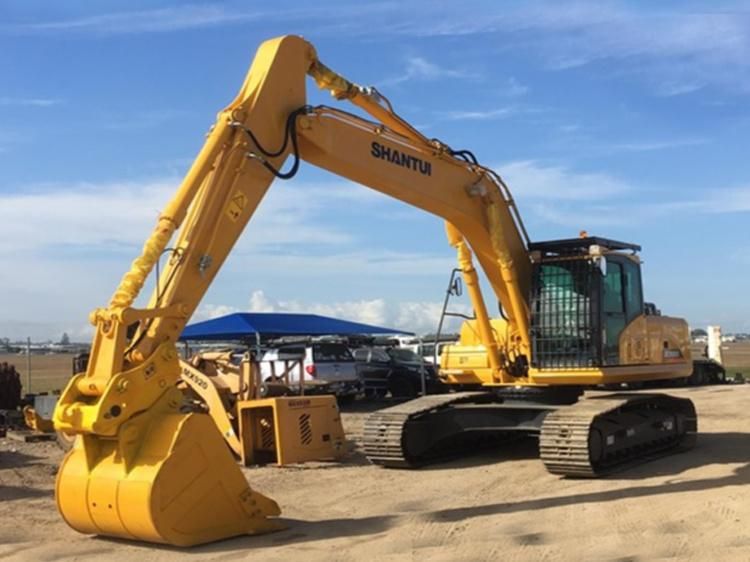

SE135 Crawler Excavator


Medium-size hydraulic Excavator

High-end Configuration and Excellent Performance

Imported engine with original packing

More powerful

Low oil consumption and environmental friendly

Optimize the comprehensive performance


Engine:

The imported engine with original packing has more forceful power and low fuel consumption. The optimized match of system guaranties that the overall performance gives full play to the full unit.

Hydraulic system:

The imported hydraulic parts with high-level configuration are of rational and high quality match and excellent performance.


Up-to-date fuel filter:

By use of an up-to-date fuel filter,the filtration performance has been improved,the oil-taking quality guaranteed and the operation reliability of engine under severe operation conditions enhanced.

High quality driving enjoy

Protection against shocks

By use of an liquid sealed shockproof rubber,the oscillation and noise in cab have been further reduced and the fatigue of operating personnel relieved. The application of high-strength enclosed structure increases the strength and rigidity of whole cab.


Large cab space

The indoor space of new luxury cab has been enlarged for 360°view, which can build up a pleasant working environment for the operator.


Seat

The seat designed on the basis of ergonomics concept considerably enhances the comfortable sensation. The suspension bag can adjust the height of seat according to the weight adjustment,making the operation more comfort.

Sturdy, efficient and durable

 Parameters


Comparative item	SE135 (Standard version)	SE135W(Weichai engine version)
Overall dimensions
Overall length (mm)	7860	7860
Ground length (During transport) (mm)	4320	4320
Overall height (To the top of boom) (mm)	2800	2800
Overall width (mm)	2500	2500
Overall height (To top of cab) (mm)	2855	2855
Ground clearance of counterweight (mm)	915	915
Minimum ground clearance (mm)	425	425
Tail turning radius (mm)	2380	2380
Track length (mm)	3645	3645
Track gauge (mm)	2000	2000
Track width (mm)	2500	2500
Standard track shoe width (mm)	500	500
Turntable width (mm)	2490	2490
Distance from slewing center to tail (mm)	2375	2375
Working range
Maximum digging height (mm)	8495	8495
Maximum dumping height (mm)	6060	6060
Maximum digging depth (mm)	5490	5490
Maximum vertical digging depth (mm)	4625	4625
Maximum digging distance (mm)	8300	8300
Maximum digging distance at ground level (mm)	8175	8175
Working device minimum turning radius (mm)	2445	2445
Maximum lifting height of bulldozer blade (mm)	-	-
Maximum digging depth of bulldozer blade (mm)	-	-
Engine
Model	QSF3.8T(China III)	WP4.1(China III)
Type	4-cylinder inline and water-cooled and turbocharged	Inline 4-cylinder, high pressure common rail, and water-cooled and turbocharged
Displacement (L)	3.76	3.76
Rated power (kW/rpm)	86/2200	92/2200
Hydraulic system
Type of hydraulic pump	Variable displacement duplex plunger pump	Variable displacement duplex plunger pump
Rated working flow (L/min)	2x130	2x130
Bucket
Bucket capacity (m³)	0.4~0.65(0.55)	0.4~0.65(0.55)
Swing system
Maximum swing speed (r/min)	11.3	11.3
Brake type	Mechanically applied and pressure released	Mechanically applied and pressure released
Digging force
Bucket arm digging force (KN)	70	70
Bucket digging force (KN)	97	97
Operating weight and ground pressure
Operating weight (kg)	13500	13500
Ground pressure (kPa)	41.5	41.5
Traveling system
Traveling motor	Axial variable displacement plunger motor	Axial variable displacement plunger motor
Traveling speed (km/h)	3.25/5.2	3.25/5.3
Traction force (KN)	118	118
Gradeability	70%(35°)	70%(35°)
Tank capacity
Fuel tank capacity (L)	220	245
Cooling system (L)	20	20
Engine oil capacity (L)	12	12
Hydraulic oil tank/system capacity (L)	177/205L	177/205L
