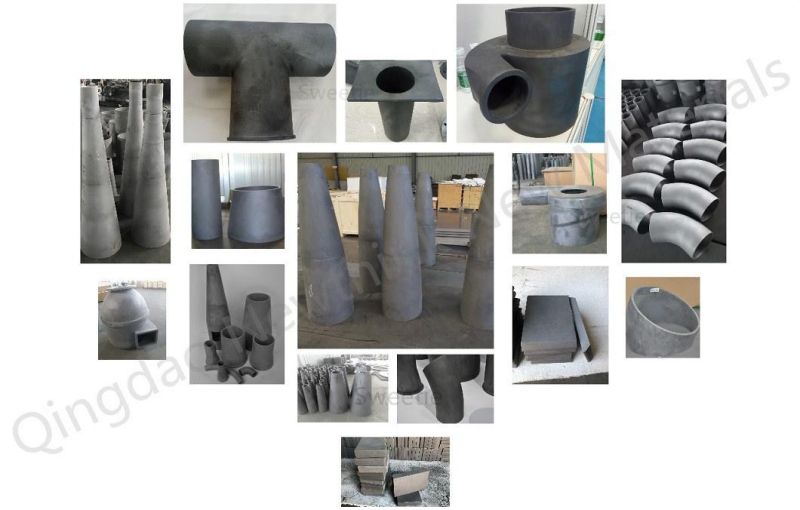

Sic Silicon Carbide Rbsic Reducer Tube Wear Resistant Liner for Mineral Transport Pipe
Qingdao Newthink New Materials Co., Ltd.- After-sales Service：According to The Specific Situation of The Custome
- Warranty：Normally 1 Year
- Certification：ISO, CE
- Condition：New
- Rated Load：>9t
- Transmission：Hydraulic - Mechanical
Base Info
- Model NO.：customized
- Load and Unload Mode：Rotary
- Walking Mode：Crawler
- Type：Wear Resistant Parts
- Vickers Hardness：2115 Hvi
- Rockwell Hardness：91 Hra
- Moh′s Hardness：10
- Density：3.01
- Volume Wear：0 M3
- Abrasive Resistance：Perfect
- Open Porosity：Less Than 0.1
- Color：Black , Grey
- Applicable Industry：Mining Industry
- Applicable Machinery：Mineral Transport System
- Sic Content：92%
- Coefficient of Thermal Expansion：4.5K-1*10-6
- Acid Alkaline-Proof：Excellent
- Bending Strength：280(1200 C)
- Product Name：Silicon Carbide Pipe Sic Wear Liner , Rbsic Reduce
- Transport Package：Plywood Box with Foam Inside
- Specification：50*100*400mm
- Trademark：Newthink
- Origin：China
- HS Code：6903900000
- Production Capacity：15 Tons , Month
Description

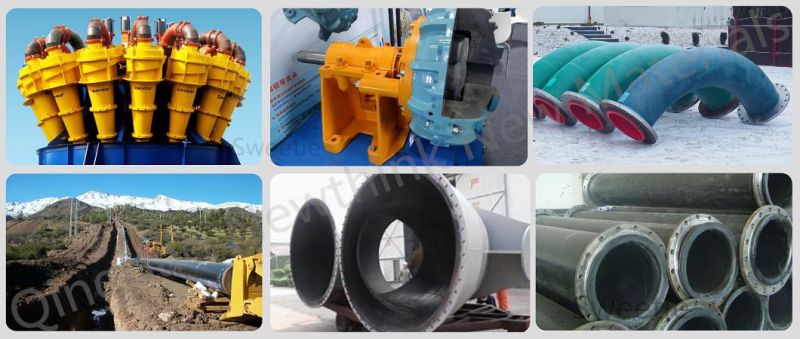

Industry application:
Silicon carbide bushings are widely used in mining, ore crushing, screening, and transportation of high-wear and high-corrosive fluids. They are mainly used in copper mines, gold mines, iron ore, nickel mines and other non-ferrous metal mining equipment, use as a bushing, play a role of high wear resistance. Mine filling, ore concentrate and tailings transportation cause serious wear to the pipeline. The service life of the ore powder transportation pipeline used in the past is less than one year, and the service life of the silicon carbide bushing can be greatly improved.

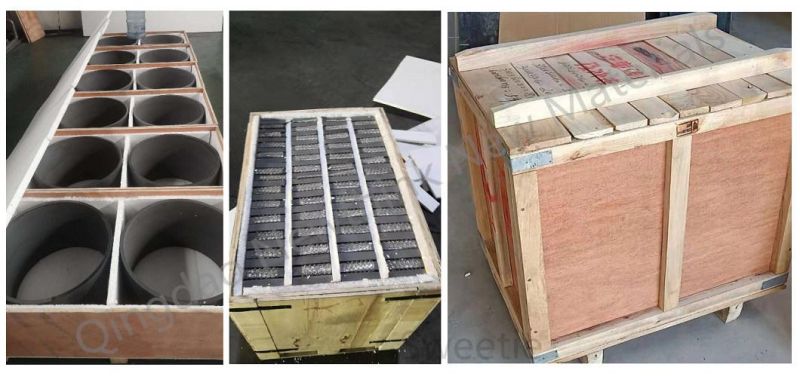

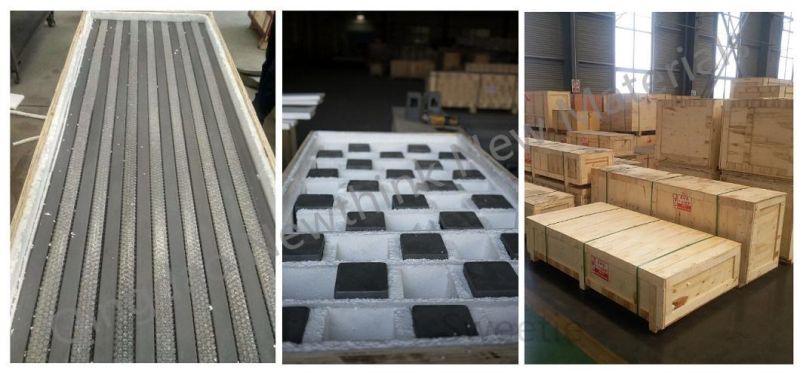

Product Packaging:
We have two packaging methods, one is plywood box packaging, and the other is pure solid wood packaging. The pure solid wood packaging box will be certified for fumigation. We will choose the right packaging box according to the product.
The inside of the packing box is filled with foam. Generally, other companies use 2cm foam, but we choose 3cm foam and fix it with chain riveting. The outside is usually wrapped with packing tape to ensure the safety of product transportation.
Wear-resistant Product Recommendation:
Mining Industry Knowledge:
Selection criteria for silicon carbide lined pipes:
According to the nature of the conveyed materials and the different media conditions, it is important to choose products suitable for their own working conditions. When selecting wear-resistant materials, you must first determine your own working conditions, including the hardness of the conveying material, particle size, flow rate, conveying volume, conveying medium, etc., and then select the appropriate wall thickness silicon carbide wear-resistant material according to the specific situation.
Exhibition:
Customer Visit:
FAQ:
Q: Are you a trading company or a manufacturer?
A: We are a manufacturer.
Q: Can you provide technical support?
A: Yes, we can provide technical support, and we can also provide door-to-door service for orders with a value of more than 1 million US dollars.
Q: Do you provide samples? Is it free?
A: We can provide samples. For conventional products, samples are free. Customized samples need to be paid. Buyers need to bear the international express fee.
Q: How long is the delivery time?
A: The stocked products are generally 3-7 days, or the production time is 25-50 days, however, the specific time needs to be based on the order quantity and production scheduling situation.
Q: What's the MOQ?
A: Determined according to the specific situation, if there is inventory, there is no limit.
Q: How to solve the quality problems?
A: If the product is inconsistent with the provided samples or quality problems occur, our company will be responsible for compensation based on sufficient evidence.
