Solar PV Project Pile Foundation Ramming Machine
Xuzhou Hengxing Jinqiao Machinery Technology Co., Ltd.- Warranty：12 Months
- Type：Hydraulic Hammer
- Pressure Pile Driver Type：Hydraulic Pile Driver
- Pile Hammer Type：Hydraulic Hammer
- Power Source：Diesel
- Motor Power：70kw
Base Info
- Model NO.：HXR5
- Noise：With Noise
- Certification：CE, ISO 9001:2008
- Condition：New
- Color：Customized
- Impact Power：1300j
- Post Diameter：210mm
- Post Length：6m

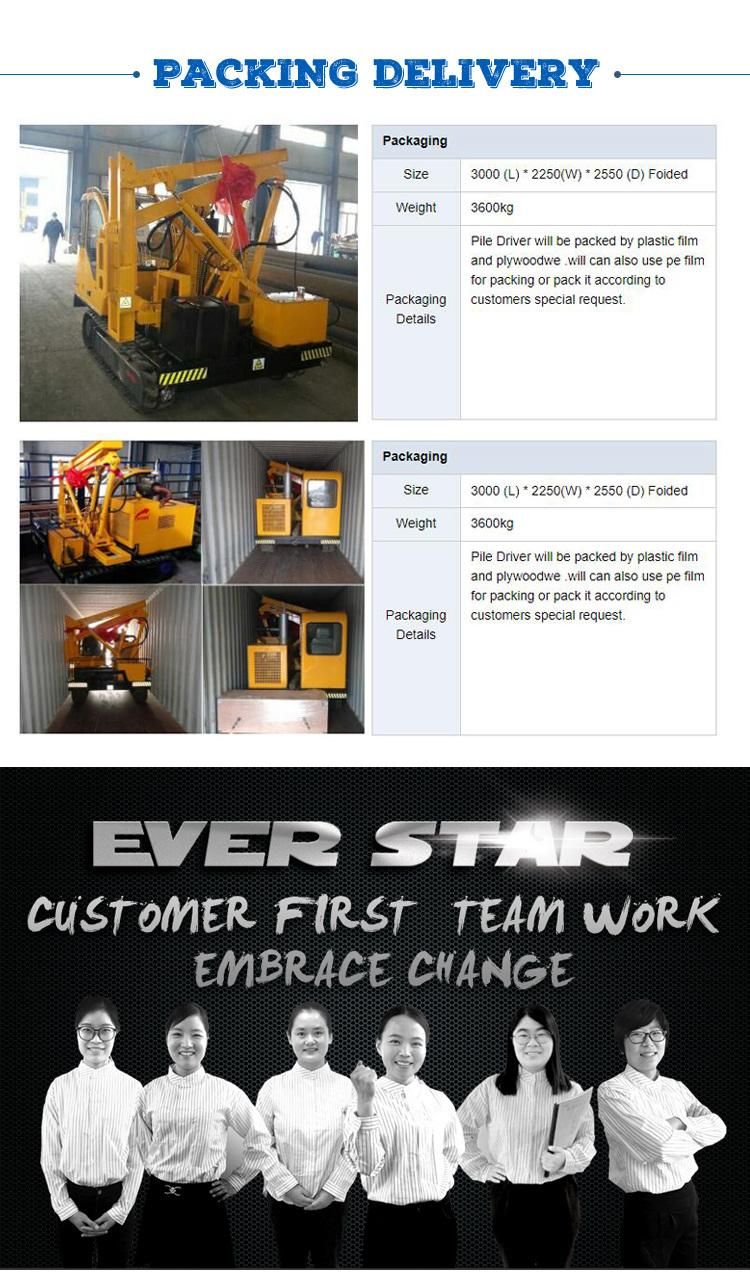

- Transport Package：Main Machine Nude
- Trademark：HXING
- Origin：China
- HS Code：843010000
- Production Capacity：1000
Description
HXR5 TECHNICAL PARAMETERSNO Item Value Unit 1 Dimension(L*W*H) 2600*2250(working2650)*2550 mm 2 Weight 2600 kg 3 Hydraulic hammer model YC260/YC360 4 Hydraulic hammer working flow rate 50-90/50-90 l/min 5 Impact frequency 400-800/400-800 bpm 6 Rod diameter 75/85 mm 7 Hydraulic hammer impact powder 6-8/7-14 T 8 piling efficency 2000/2500 mm/min 9 Engine powder 39 KW 10 Walking motor torque(max) 1950 Nm 11 Impact drill rotary motor torque 800-1800 Nm 12 Mast route 2000 mm 13 Drilling depth 1700 mm 14 Drilling diameter 0-300 mm 15 Max inclination angle of sliding rail rack(left/right) left30/ right10 ° 16 Angular adjustment of frame(forwards/backwards) fowards10/ backwards8 ° 17 Hydraulic system pressure 16-20 Mpa 18 Travelling speed 10-15 km/h 19 Pulling speed <=30 m/h 20 Sliding route(left/right) 0-450 mm 21 Grade ability <30 ° 22 Hydraulic oil tank 80 L 23 Diesel oil tank 40 L 24 Model HX26D-1,-2,-3,-4,-5 HX36D-1,-2,-3,-4,-5
