• Model NO.：250X52.5X78
• Links：78
• Length：4095mm
• Warranty：Rubber and Steel
• Color：Black
• Material：Rubber
• Transport Package：Wood Pallet or Bare Packaging
• Specification：250X52.5X78
• Trademark：No
• Origin：Shanghai, China
• HS Code：8431499900
• Production Capacity：5000 Pieces,Month

Basic Info.

Model NO. 250X52.5X78 Links 78 Length 4095mm Warranty Rubber and Steel Color Black Material Rubber Transport Package Wood Pallet or Bare Packaging Specification 250X52.5X78 Trademark No Origin Shanghai, China HS Code 8431499900 Production Capacity 5000 Pieces/Month

Product Description

Characteristics

1). Rubber track with Less damage to the ground surface
2). Low noise
3). High running speed
4). Less vibration
5). Low ground contack specific pressure
6). High tractive force
7). Light weight
8). Anti-vibration


Extreme Durability & Performance

Our joint free track structure, Special designed tread pattern, 100% virgin rubber,and one piece forging insert steel result extreme durability & performance and longer service life for construction equipment use. Our tracks perform a high level of reliability and quality with our latest technology in mold tooling and rubber formulation.

Specification & application:


size width*pitch	links	size width*pitch	links	size width*pitch	links
130*72	29-40	250*109	35-38	B350*55K	70-88
150*60	32-40	260*52.5	74-80	350*56	80-86
150*72	29-40	260*55.5K	74-80	350*72.5KM	62-76
170*60	30-40	Y260*96	38-41	350*73	64-78
180*60	30-40	V265*72	34-60	350*75.5K	74
180*72	31-43	260*109	35-39	350*108	40-46
180*72K	32-48	E280*52.5K	70-88	350*109	41-44
180*72KM	30-46	280*72	45-64	Y320*107K	39-41
180*72YM	30-46	V280*72		400*72.5N	70-80
B180*72	31-43	Y280*106K	35-42	400*72.5W	68-92
H180*72	30-50	300*52.5N	72-98	Y400*72.5K	72-74
T180*72		300*52.5W	72-92	KB400*72.5K	68-76
V180*72K	30-50	300*52.5K	70-88	400*72.5KW	68-92
190*60	30-40	300*52.5KW	72-92	400*73	64-78
190*72	31-41	E300*52.5K	70-88	400*74	68-76
200*72	34-47	KB300*52.5	72-92	400*75.5K	74
200*72K	37-47	KB300*52.5N	72-98	Y400*107K	46
Y200*72	40-52	JD300*52.5N	72-98	400*78
230*48	60-84	300*53K	80-96	K400*142	36-37
230*48A	60-84	300*55	70-88	400*144	36-41
230*48K	60-84	300*55YM	70-88	Y400*144K	46-41
230*72	42-56	300*55.5K	76-82	450*71	76-88
B230*72K	34-60	300*71K	72-76	DW450*71	76-88
230*72K	42-56	300*72	36-40	450*73.5	76-84
V230*72K	42-56	BA300*72	36-46	450*76	80-84
W230*72		300*109N	35-42	450*81N	72-80
230*96	30-48	300*109W	35-44	450*81W	72-78
230*101	30-36	K300*109	37-41	KB450*81.5	72-80
250*47K	84	300*109WK	35-42	K450*83.5	72-74
250*48.5K	80-88	320*52.5	72-98	Y450*83.5K	72-74
250*52.5	72-78	320*54	70-84	K450*163	38
250*52.5N	72-78	B320*55K	70-88	485*92W	74
250*52.5K	72-78	Y320*106K	39-43	K500*71	72-76
250*72	47-57	350*52.5	70-92	500*92	72-84
B250*72	34-60	E350*52.5K	70-88	500*92W	78-84
B250*72B	34-60	350*54.5K	80-86	K500*146	35
250*96	35-38



AX20UR	250X52,5X78
MX202	250X52,5X78
EX20UR	250X52,5X78
EX20UR.2C	250X52,5X78
PC20MR	250X52,5X78
PC20MR.1	250X52,5X78
PC20MR2	250X52,5X78
PC20MRX	250X52,5X78
PC20UU	250X52,5X78
PC20UU3 ADVANCE	250X52,5X78

How to confirm a replacement rubber track size:

First try to see if the size is stamped along the inside of the track.
If you can't find the rubber track size stamped on the track, Pls inform the blow information to us:

1. The make, model, and year of the vehicle

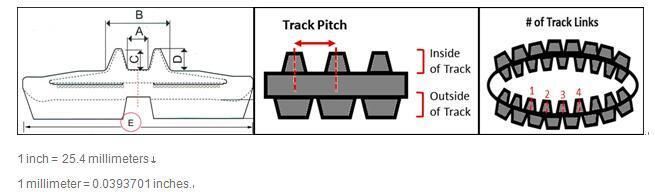

2. The Rubber Track Size = Width(E) x Pitch x Number of Links (described below)

Product Warranty
All our rubber tracks are made with a serial Number, we may trace the product date against the serial Number.

It's normally 1 year factory warranty from production date, or 1200 working hours.

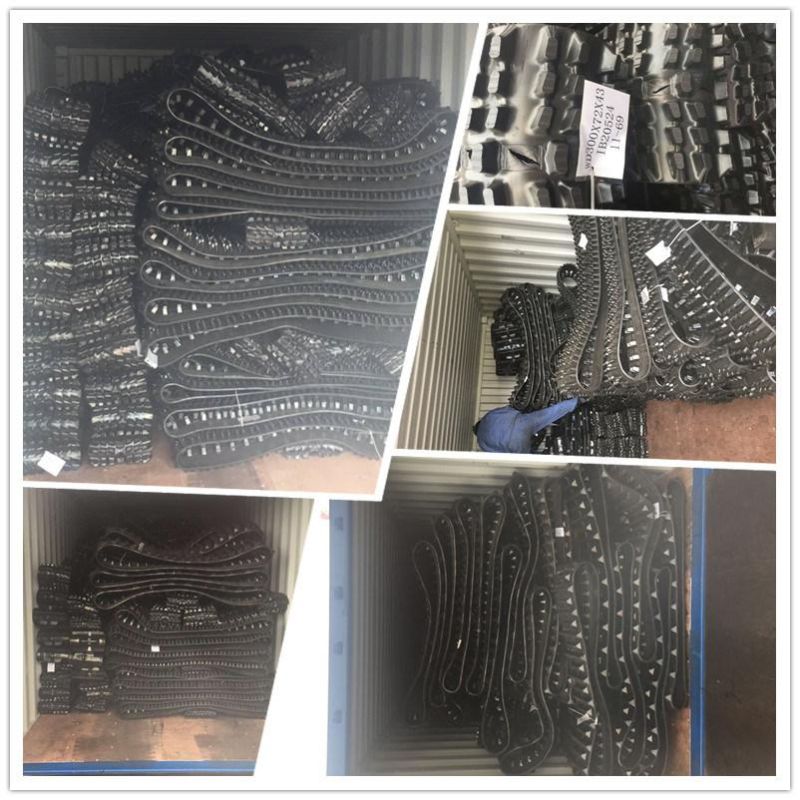

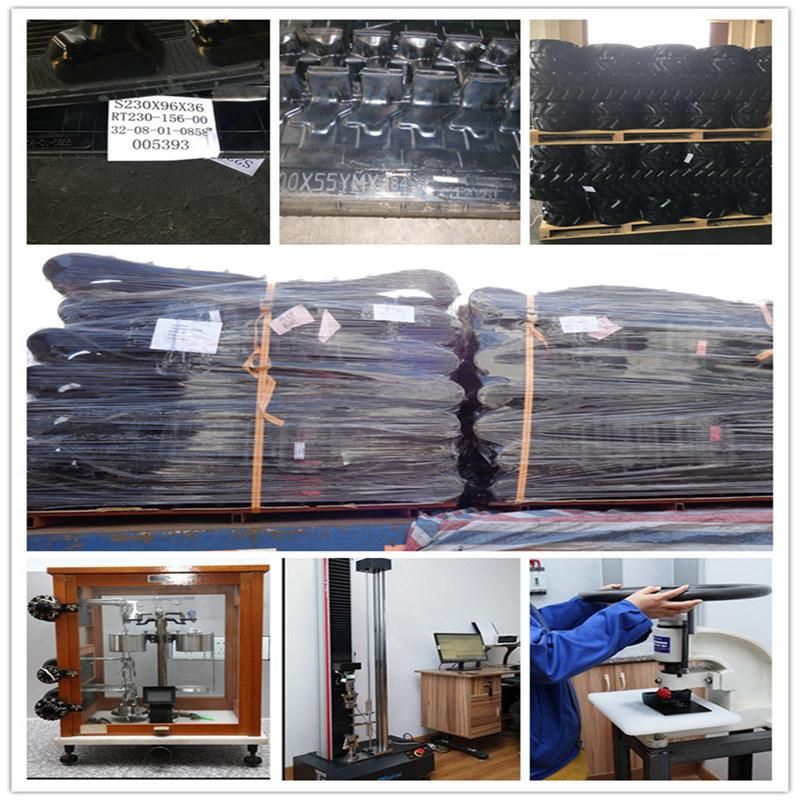

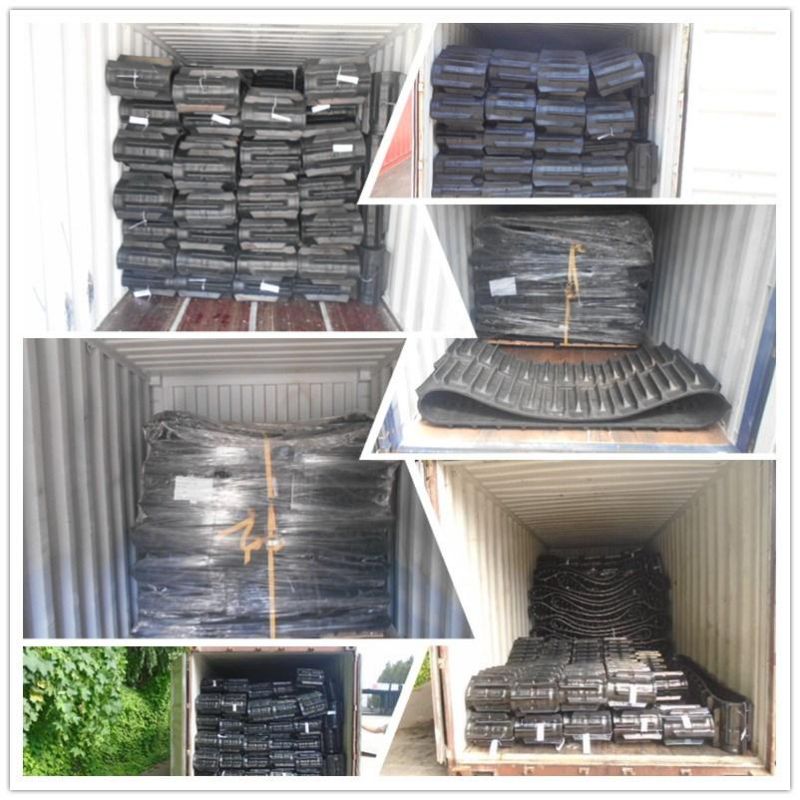

Other photos for reference
