• Model NO.：950F
• Type：Medium-sized Loader
• Make：Caterpillar
• Weight：10236 Kg
• Dimension(L*W*H)：7548mm*2750 *3520
• Gross Power：159.6 HP 119 Kw
• Displacement：427.2 Cu in 7 L
• Usage：Special Type
• Scraper Type：Tractor-Scraper
• Load and Unload Method：Front Discharge
• Transport Package：Container , Bulk , Roro
• Specification：86 m3
• Trademark：CAT
• Origin：Japan
• HS Code：8429510000
• Production Capacity：5 Units ,Month

 Operational    Operating Weight34321.6 lb  15568 kg  Fuel Capacity 58.6 gal 222 L  Hydrauilc System Fluid Capacity 40.4 gal 153 L Static Tipping Weight 22566.5 lb 10236 kg  Turning Radius 22.7 ft in 6918 mm  Tire Size 23.5-25  12PR

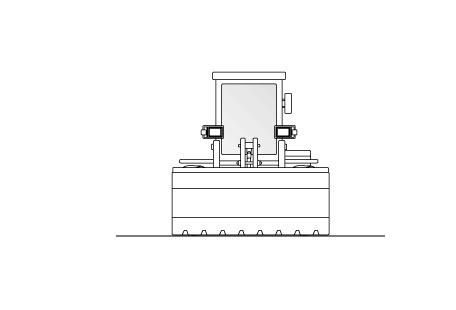

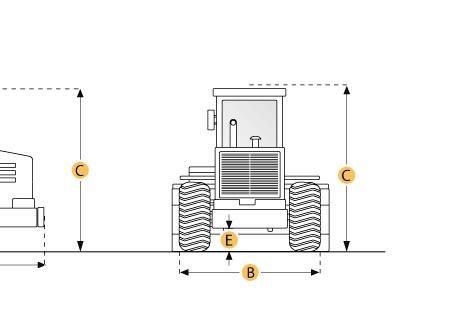

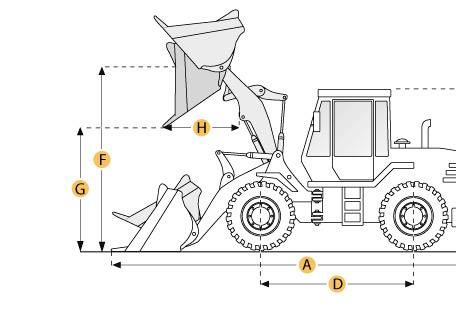

Selected Dimensions

BucketG. Dump Clearance at Max Raise9.6 ft in2941 mmDimensionsA. Length with Bucket on Ground25.2 ft in7689 mmB. Width Over Tires9 ft in2753 mmC. Height to Top of Cab11.5 ft in3520 mmD. Wheelbase10.4 ft in3180 mmE. Ground Clearance1.6 ft in474 mmF. Hinge Pin - Max Height13 ft in3953 mmH. Reach at Max Lift and Dump3.6 ft in1103 mm
1)Service
Pick you up from the airport
Book hotel for you
Guide you to visit Shanghai



2)Payment and shipment
In good working condition
Price: Negotiable
Locate in shanghai,China
Package: In bulk or by container
Deliver in 1-7 days after confirmation
