• Model NO.：T300*86K*46
• Link：46
• Color：Black
• Warranty：12 Months Under Normal Use
• Material：Rubber and Steel
• Transport Package：Bare Packing or Wooden Pallets
• Specification：300*86*46
• Trademark：No Marks or As Buyer′s Requests
• Origin：Shanghai, China(Mainland)
• HS Code：8431499900
• Production Capacity：1000 Pieces Per Month

Basic Info.

Model NO. T300*86K*46 Link 46 Color Black Warranty 12 Months Under Normal Use Material Rubber and Steel Transport Package Bare Packing or Wooden Pallets Specification 300*86*46 Trademark No Marks or As Buyer′s Requests Origin Shanghai, China(Mainland) HS Code 8431499900 Production Capacity 1000 Pieces Per Month

Product Description

Commodity: LOADER TAKEUCHI TL12 Rubber Track 300*86*46

Size: width 300mm*pitch 86mm*46links
Overall Length:3956mm
Weight:137.54kg
Guarantee 12 months under normal use.



PRODUCT INFO

Mini skid steer loader, wheel or crawler

Transmission: Hydraulic transmission

Control system: Hydraulic system

Steering: 360° Steering

Driven: 4 wheels

Overall Dimension: 2206*1100*1233mm(with 1 standard bucket)

1. With importedengine: Briggs&Stratton gasoline engine From USA, 21/23HP


2. China/Italy pump, china mortor, valve

3. Rated load: 300Kg

4. With Engineering tires /Rubber track

5.0.15M^3 bucket capacity


Skid Steer Loader	TS50
Rated Operating Capacity	700
Tipping load(Kg)	1400
Bucket Capacity(m3)	0.3
Lifting Force(Kg)	1950
Hydraulic Pump Flow(L/min)	40
Engine power(HP)	50
Weight(Kg)	2800
Max.Travel Speed(km/h)	8
Grade ability(deg.)	20
Fuel/hyd.Oil capacity(L)	50/50

Products features

(1). Less round damage

Rubber tracks cause less damage to roads than steel tracks, and less rutting of soft ground than either steel tracks of wheel products.

(2). Low noise

A benefit to equipment operating in congested areas, rubber track products less noise than steel tracks.

(3). High speed

 Rubber track permit machines to travel at a higher speed than steel tracks.

(4). Less vibration

 Rubber tracks insulate machine and operator from vibration, extending the machine's lifetime and lowering operate fatigue.

(5). Low ground pressure

The ground pressure of rubber tracks equipped machinery can be fairly low, about 0.14-2.30 kg/ cmm , a major reason for its use on the wet and soft terrain .

(6). Superior traction

The added traction of rubber, track vehicles permits them to pull twice the load of wheel vehicles of the sane weight.

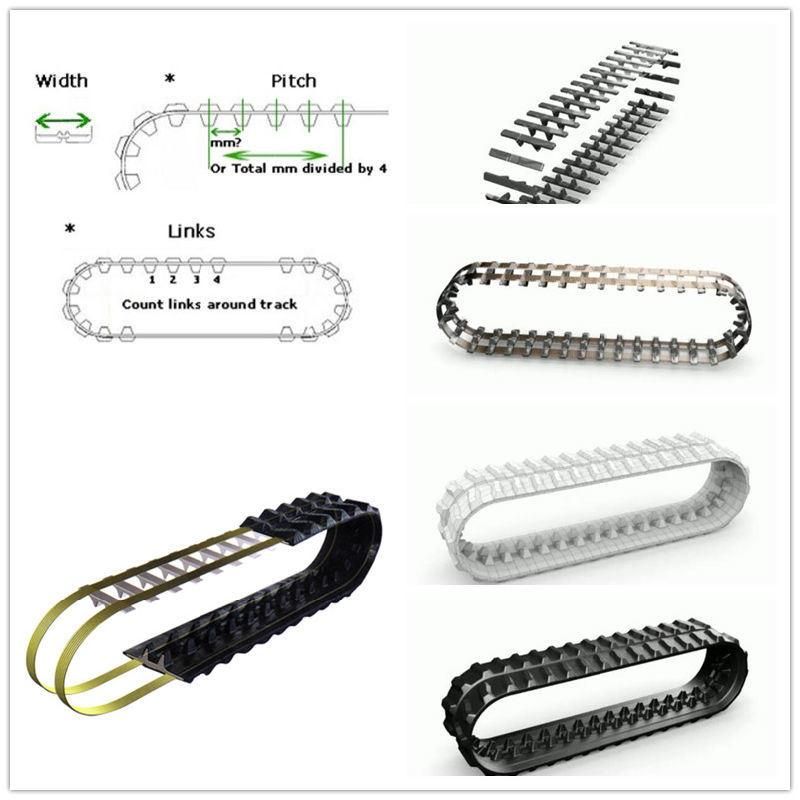

Parameters:

Width*Pitch length(mm)	Number of Links	Width*Pitch length(mm)	Number of Links	Width*Pitch length(mm)	Number of Links
130*72	28-53	300*52.5K	72-84	400*72.5KW	68-92
150*60	28-49	300*52.5KW	72-92	400*74	68-76
150*72	29-40	KB300*52.5	72-92	400*75.5K	74
170*60	30-40	KB300*52.5N	72-98	B400*86	52-55
180*60	30-40	JD300*52.5N	72-98	400*90	42-56
180*72	30-58	300*53K	80-84	Y400*142	36-37
180*72K	30-37	300*55	70-86	400*144	36-41
B180*72K	34-51	300*55.5K	76-82	Y400*144K	36-41
B180*72A	30-51	300*71K	72-55	420*100	50-58
H180*72	30-50	300*109N	25-42	450*71	76-88
190*60	30-40	K300*109	37-41	DW450*71	76-88
190*72	34-39	300*109WK	35-42	450*73.5	76-84
200*72	34-47	B300*84	78-52	450*76	80-84
200-*72K	37-47	T300*86K	48-52	450*81N	72-80
230*48	60-84	320*52.5	72-98	450*81W	72-78
230*48K	60-84	B320*52.5	68-98	KB450*81.5	72-80
230*72	42-56	320*54	70-84	K450*83.5	72-74
230*72K	42-56	B320*86	49-52	B450*84	53-56
230*96	30-48	320*90	52-56	B450*86	52-55
230*101	30-36	320*100	38-54	450*90	58-76
250*47K	84	320*100W	37-65	KU450*90	58-76
250*48.5K	80-88	Y320*106K	39-43	T450*100K	48-65
250*52.5K	72-78	350*52.5	70-92	K450*163	38
250*72	47-57	350*54.5K	80-86	485*92W	74
B250*72	34-60	B350*55K	77-98	500*90	76-82
B250*72B	42-58	350*56	80-86	500-92	72-84
E250*72	37-58	350*75.5K	74	500*92W	78-84
250*96	35-38	350*90	42-56	500*100	71
250*109	35-38	350*100	46-60	K500*146	35
260*55.5K	74-80	350*108	40-46	600*100	76-80
Y260*96	38-41	350*109	41-44	600*125	56-64
260*109	35-39	Y370*107K	39-41	700*100	80-98
280*72	45-64	400*72.5N	70-80	750*150	66
Y280*106K	35-42	400*72.5W	68-92	800*125	80
300*52.5N	72-98	Y400*72.5K	72-74
300*52.5W	72-92	KB400*72.5K	68-76

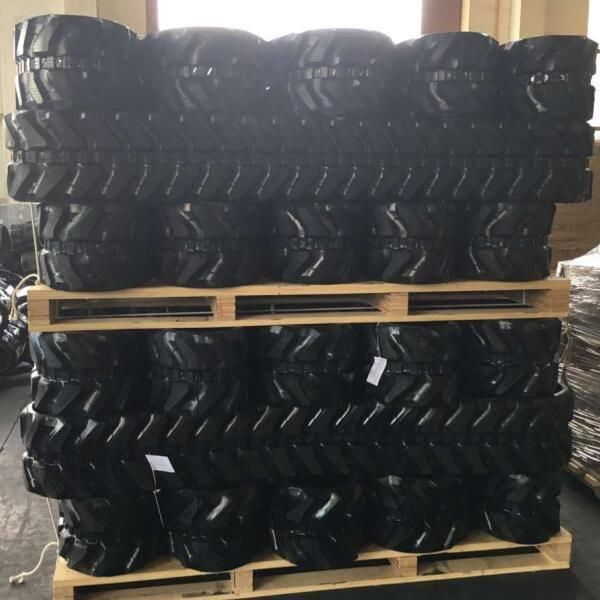

Warehouse:
