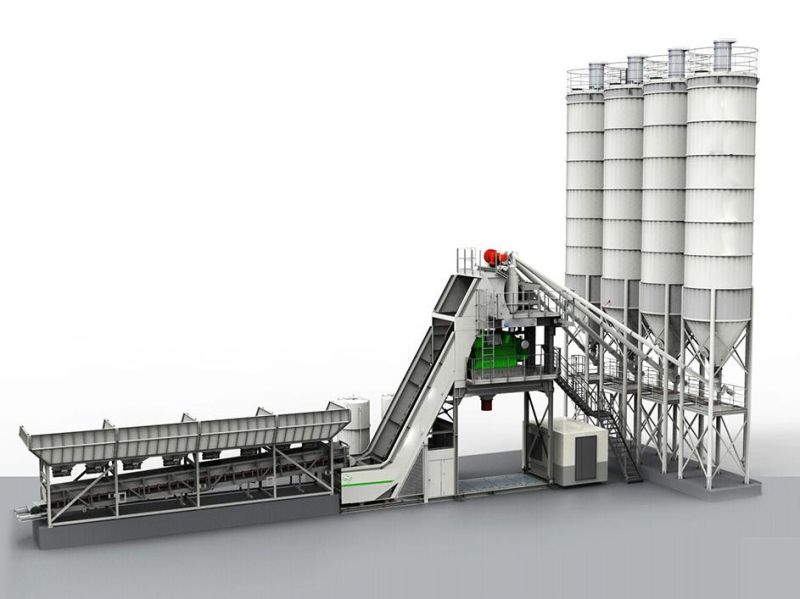

Hzs40 Small Concrete Mixing Plant 40m3/H Mobile Concrete Batching Plant
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：Field Maintenance and Repair Service
- Warranty：1 Year
- Type：Concrete Mixing Plant
- Shotcrete Type：Wet
- Machining Process：Welded Molding Machine
- Structure：Cylinder Type
Base Info
- Model NO.：HZS40
- Productivity：40cbm,H
- Feeding Height：4m
- Vibrating Amplitude：2.2mm
- Certification：ISO9001: 2000, CE
- Condition：New
- Color：White
- Power：30kw
- Transport Package：Roro,Container,Bulk
- Specification：10000KG
- Trademark：SINOMADA
- Origin：China
- HS Code：84295100
- Production Capacity：100 Units, Month
Description
Product Description
MODEL
UNIT
HZS40VY
Theoretical production rate
M³/h
40
Discharge height
m
4
Mixer type
JS750
Mixer power
kW
30
Nominal volume of mixer
L
750
Production period
S
60
Max. diameter of aggregate
mm
≤60
Max. diameter of aggregate
m³
4×5
Volume of powder silo (optional)
t
--
Burdening capability of burdening plant
L/Silo
1200
Conveying capability of loader elevator
t/h
90
Productivity of spiral conveyer
t/h
--
Standard installed capacity
kW
69
Measuring range and accuracy of sand and stone
kg
(500~2500)±2%
Cement measuring range and accuracy
kg
(100~500)±1%
Water measuring range and accuracy
kg
(40~200)±1%
Additive measuring range and accuracy
kg
(10~30)±1%
