Hydraulic MIDI Size 6 Ton Crawler Digger Excavator with Closed Cabin
JINING HENGWANG CONSTRUCTION MACHINERY CO., LTD.- After-sales Service：Provide
- Warranty：1 Year
- Type：Crawler Excavator
- Usage：GM Excavator
- Bucket：Backhoe
- Transmission：Hydraulic Transmission
Base Info
- Model NO.：6 ton
- Drive Type：Internal Combustion Drive
- Bucket Capacity：0.1~0.5m³
- Size：Medium-Sized
- Certification：CE, ISO9001: 2000
- Condition：New
- Total Weight：5950kg
- Rated Power：35.5kw
- Max Digging Radius：6155mm
- Max.Digging Depth：3820mm
- Max.Digging Height：5760mm
- Max.Dumping Height：4030mm
- Digging Foce：37.7kn
- Boom Length：3000mm
- Arm Length：1600mm
- Wheelbase：1480mm
- Track Gauge：1990mm
- Total Width of Undercarriage：1880mm
- Width of Track Shoe：400mm
- Ground Clearance：355mm
- Gradeability：70
- Transport Package：40hq
- Specification：5855*1880*2580mm
- Trademark：HW
- Origin：China
- HS Code：8429521200
- Production Capacity：200 Units ,Month
Description
Model
Unit
HW-60
Total weight
kg
5950
Working device mode
/
Backhoe
Bucket capacity
m³
0.21
Rated power
Kw
35.5
Dimensions(LxWxG)
mm
5855*1880*2580
Max digging radius
mm
6155
Max.digging depth
mm
3820
Max.digging height
mm
5760
Max.dumping height
mm
4030

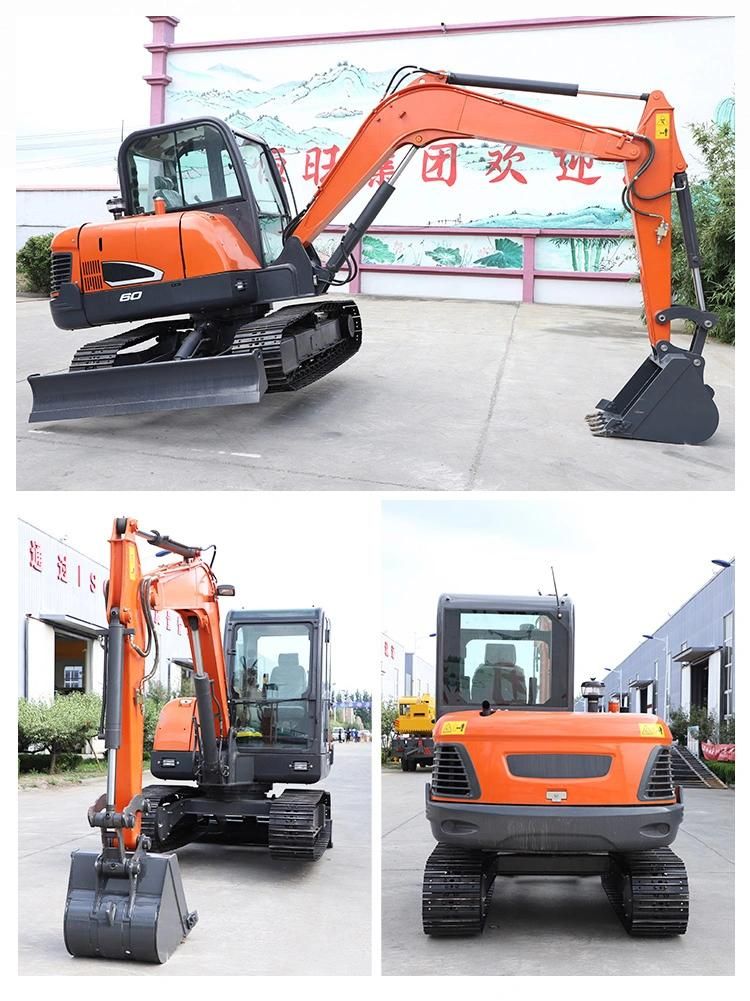

HW-60 6 ton Crawler Mini Excavator Details :
Engine :
Our 6 ton crawler mini excavator install Yanmar diesel engine, providing 35.5 kW of engine power at 2200 rpm, a massive 22% increase over the previous generation models.
Hydraulic pump:
As well as the huge increase in engine power, another of the stand-out features on the 6 tonne excavators is the hydraulic performance.The hydraulic system incorporates a load sensing system which guarantees high hydraulic performance and allows smooth and efficient combined operations.
Cab:
A high capacity heating and air conditioning system is standard, with fully adjustable vents installed at both the front and rear of the operator's seat to maximise efficiency.

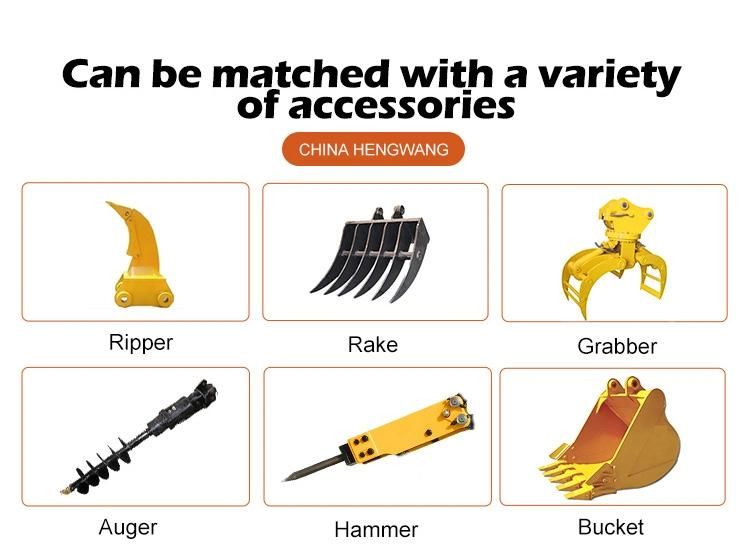

HW-60 6 ton Crawler Mini Excavator Can be equipped with various kinds of accessories such as hammer breaker ,auger drill , rake ,ripper ,different sizes of bucket etc., for different jobs .
HW-60 6 ton Crawler Mini Excavator Application:Midi or mid-sized excavators are a good choice for those who work in small spaces but need more reach and power than a mini excavator can provide. Midis can also be used on more standard projects like building construction and landscaping while still providing the advantage of increased maneuverability thanks to their smaller size.
HW-60 6 ton Crawler Mini Excavator Certificate :
HW-60 6 ton Crawler Mini Excavator Company Profile :
