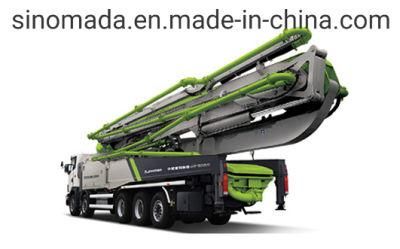

New Condition 49m Concrete Truck Mounted Pumps 49X-6rz for Sale

Sinomada Heavy Industry (Changsha) Co., Ltd.

Type：Concrete Pump
Shotcrete Type：Semi-Dry
Machining Process：Hydraulic
Structure：Cylinder Type
Productivity：240m²,h
Feeding Height：1400mm

Base Info

Model NO.：49X-6RZ
Vibrating Amplitude：2.6mm
Certification：ISO9001: 2000, CE
Condition：New
Color：White
Stroke Length：1700 mm
Filling Height：1540 mm
Pumping Frequency：24,15min-1
Hopper Capacity：550L
Transport Package：Nude
Specification：10740x2500x3886 mm
Trademark：ZOOMLION
Origin：China
HS Code：87059090
Production Capacity：100 Units, Month

Description

Distribution valveS-valveMax. Concrete Outputm³/h170/120Max. Concrete PressureMPa8.3/12Delivery Cylindermm260Stroke Lengthmm2100Strokes1/min25/18.5Hopper CapacityL600Filling heightmm1540Hydraulic SystemOpenHydraulic oil coolingDouble fansHigh/Low Press. SwitchAutomaticLubrication on pumpAutomaticLubrication on hopperAutomaticGPS Data ManageOptionalBoom Control ValveProportionalNumber of Arms 6Folding System RZMax. Reach Verticalm49Max. Reach Horizontalm45Max. Reach Depthm34.1Min. Unfolding Heightm9.5End Hose Lengthm3PipelineDN125/5.5Slewing Range±270°Slewing Motor2 MotorRemote Control SystemRadioWater Pump20L/min, 60barTool kits with boxStandard
New Condition 49m Concrete Truck Mounted Pumps 49X-6rz for Sale

New Condition 49m Concrete Truck Mounted Pumps 49X-6rz for Sale

New Condition 49m Concrete Truck Mounted Pumps 49X-6rz for Sale

Category

Concrete Machinery

Engineering & Construction Machinery Parts

Mortar Spray Machine

Other Engineering & Construction Machinery

Paving Machinery

Pipe Jacking Machine

Rendering Machine

Recommended

Zoomlion 40m Truck Mounted Concrete Pump 40X-5rz for Sale
Distribution valveS-valveMax. Concrete Outputm3/h140/90Max. Concrete Pressurebar70/110Delivery Cylindermm230Stroke Lengthmm2100Strokes1/min27/17Hopper CapacityL550Filling heightmm1540Hydraulic SystemOpenHydraulic oil coolingDouble fansHigh/Low Press. SwitchManualLubrication on pumpAutomati
Gasoline Engine Compactor Machine C77/C90/C120, Plate Compactor Price
70*54*67cmMain Features:1) High efficiency and less cost.2) Folding handle for easy transportaion and storage.3) The open plate provides self cleaning.4) Sealed belt cover to prevent sand and soil in.5) Gasoline power system, more powerful force, better compaction effect.Company InformationCertifica
Honda Plate C77/C90/C120 Compactor for Sale
70*54*67cmMain Features:1) High efficiency and less cost.2) Folding handle for easy transportaion and storage.3) The open plate provides self cleaning.4) Sealed belt cover to prevent sand and soil in.5) Gasoline power system, more powerful force, better compaction effect.Company InformationCertifica
Hydraulic Double Direction Vibratory Diesel Reversible Plate Compactor Vibratory Plate Compactor
78*48*109(without extension plate)78.5*48*109(without extension plate)
W50 and W50DC W35 Asphalt Milling Machines Gearbox 2544944 Part 2544545
Basic Info. Model NO. 2544944
400K Ohm Chip Resistor 1000W 8 Ohm on Surface Mount for Tower Crane
Tower Crane Resistance Panel Control Box for Tower Crane ResistorsRated Single Rope Tension KN2025253040Magnification44444Rated Power of the motor KW334151.551.551.5Working Frequency Hz5050505050Hoisting Speed m/min20/4021/4225/5012/615/30Hoisting Capacity t8/410/510/512/616/8Rope capacity3285005505
Boom Concrete Pump Zoomlion New 36m Pump Truck 36X-5z
Overview Product DescriptionProduct ParametersModelUnit36X-5ZPump UnitMax. Theor. outputm3/h120/80Max. Theor. concrete output PressureMPa7/11Rated working pressureMPa35Pumping frequencymin-124/15Hopper capacityL550Filling heightmm1540Hydraulic system typeopened loopDistribution v

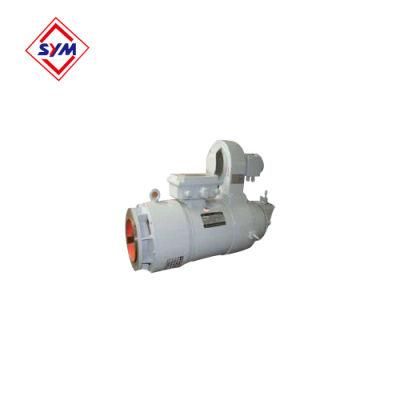

Spare Parts Jack Stand Motor Electric for Tower Crane with Unite Motor
