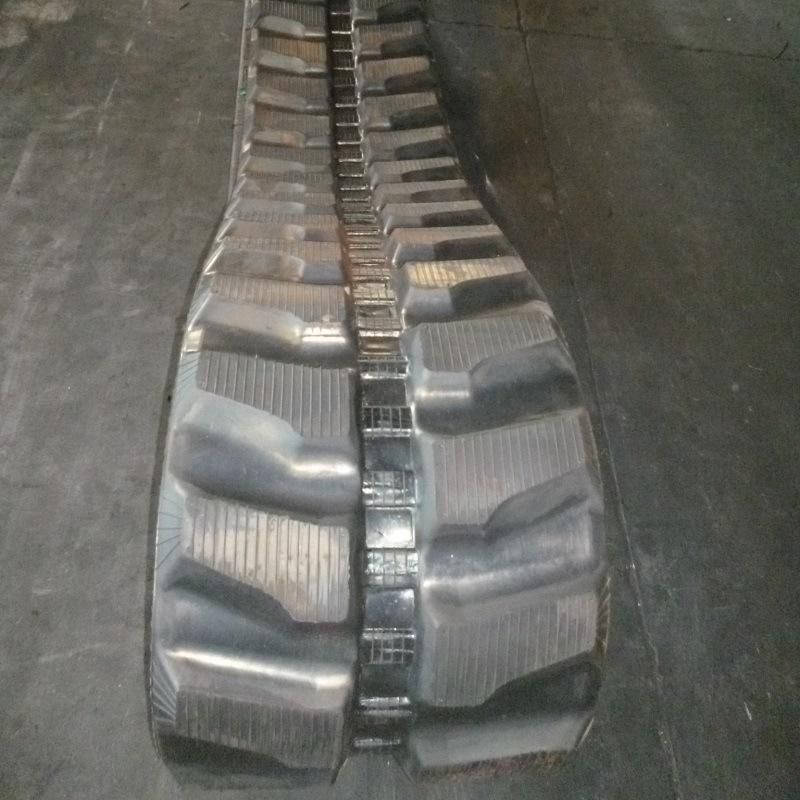

Rubber Track for Komatsu PC75 / PC 75r2 (450*76*80)
Shanghai Puyi Industrial Co., Ltd.- Type：Rubber Tracks
- Application：Excavator
- Certification：ISO9001: 2000
- Condition：New
- Place of Origin：Shanghai, China (Mainland)
- Model No：450X76X80
Base Info
- Model NO.：450x76x80
- Width：450mm
- Pitch：76mm
- Link：80
- Length：6080mm
- Warranty：1 Year for Normal Usage
- Net Weight：421.6kg
- Export Markets：Global
- Transport Package：Bare Packing
- Specification：450x76x80
- Trademark：POOYERT , OEM
- Origin：Shanghai, China
- HS Code：8431499900
- Production Capacity：1000 Per Month
Description
2.Application
Rubber track with size 450mm wide, 76mm pitch and 80 links, can be applied on the construction machinery as follow:
3.Special Features of the POOYERT Rubber Tracks
- 3 Metal Cores Wound Up: Higher durability & Better flexibility
- Smaller Contact Surface (Smaller Lug): Better grip & traction
- Bi Directional: Tracks are Interchangeable
- Reinforced Edges Between Lugs: Decreasing the chance of slicing
- Jointless: Track is much stronger than the joint type
4. State of art technology
Thanks for endless our clients believe us and place the order to us. So we have enough found to invest on R&D every year.
With several years research, we applied the Continuous Rubber Track inside the rubber track.
Continuous rubber track means the steel inside the rubber in process is coherent which means there are no weld joint between the steel. Comparing with common rubber track, Continuous Rubber track has some Performance Advantages as follow:
1: Good tensile strength
The framework of the continuous rubber track is wind-up by one, single steel wire which offers a uniform a uniform tensile strength for which increase the whole track's tensile stength.
2: Low elongation
Cause of the continuous structure of the track, the steel wire internal hard to be elongated so that gives the track a very low elongation.
3: Good anti-slip ability for steel wire internal
The steel wire under the continuous structure forced uniform during the process of manufacture which makes the steel wire internal has a good ability of anti-slip during the rubber track's working.
4: Stable dimension for pitch
The continuous structure assures low elongtion for rubber track which makes the dimension of the pitch more stable.
5. Steel wire not easy to break
The continuous structure can offer a uniform tensile strength for the steel wire internal which makes the steel wire not easy to break and appear on the surface of the rubber track.
Since years, POOYERT makes use of the continuous steel-cable technology in order to enlarge strength and resistance. POOYERT rubber tracks are 40% stronger and long lasting, and the costs for the customers are reduced.
5.Why choose rubber track?
*Less ground damage
Rubber tracks cause less damage to roads than steel tracks, and less rutting on soft ground than steel tracks.
*Low Noise
A benefit to equipment operating in congested areas, rubber tracks make less noise than steel tracks.
*High speed
Rubber tracks permit machines to travel at a higher speed than steel tracks.
*Less vibration
Rubber tracks insulate machine and operator from vibration, extending the service life of machine and decreasing operator's fatigue.
*Low ground pressure
The ground pressure of rubber tracks equipped machinery can be fairly low, about 0.14-2.30kg/m2, a major reason for its use on wet and soft terrain.
*Superior traction
The added traction of rubber tracked vehicles permits them to pull twice the load of wheeled vehicles of the same weight.
*Light machinery weight
Rubber track's pulling performance being twice that of wheels, it permits the lighter vehicles equip with rubber track to do the same pulling work than that of wheeled vehicles.
10.About Us

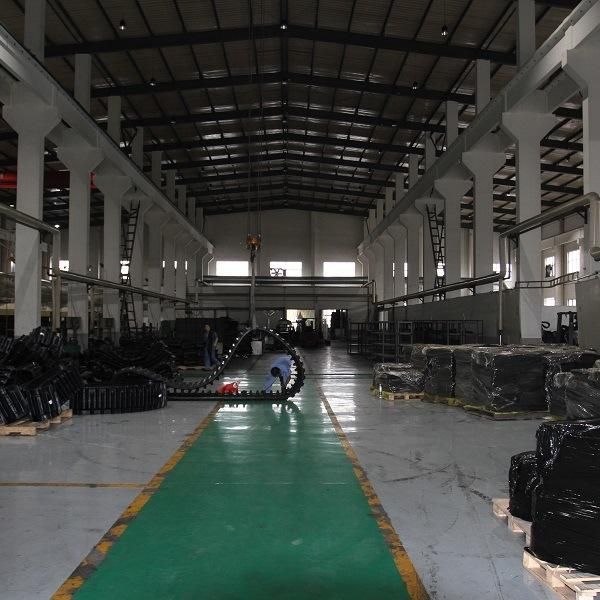

Shanghai Puyi Industrial Co., Ltd mainly produce Rubber Tracks in China. With rubber factory in Shanghai, we are strong in offering various of rubber tracks for crawler, bulldozer, excavator, asphalt paver, (mini)harvester, snowblower, snowmobile, wheelchair, robot…ect. Yanmar, Terex, Kubota, Bridgestone Rubber Tracks… OEM is available.
What you can get from us?
1.24 hours 7 days online service for you.
Although we have holidays or weekends, we will try our best to reply to you upon receiving your requirement.
2. Offer a special plan for you not just sell the product.
We can make a special product plan according to your requirement. More, we will advise you the optimal trade way according to your condition. Our belief is, sell the optimal product and save money for our clients.

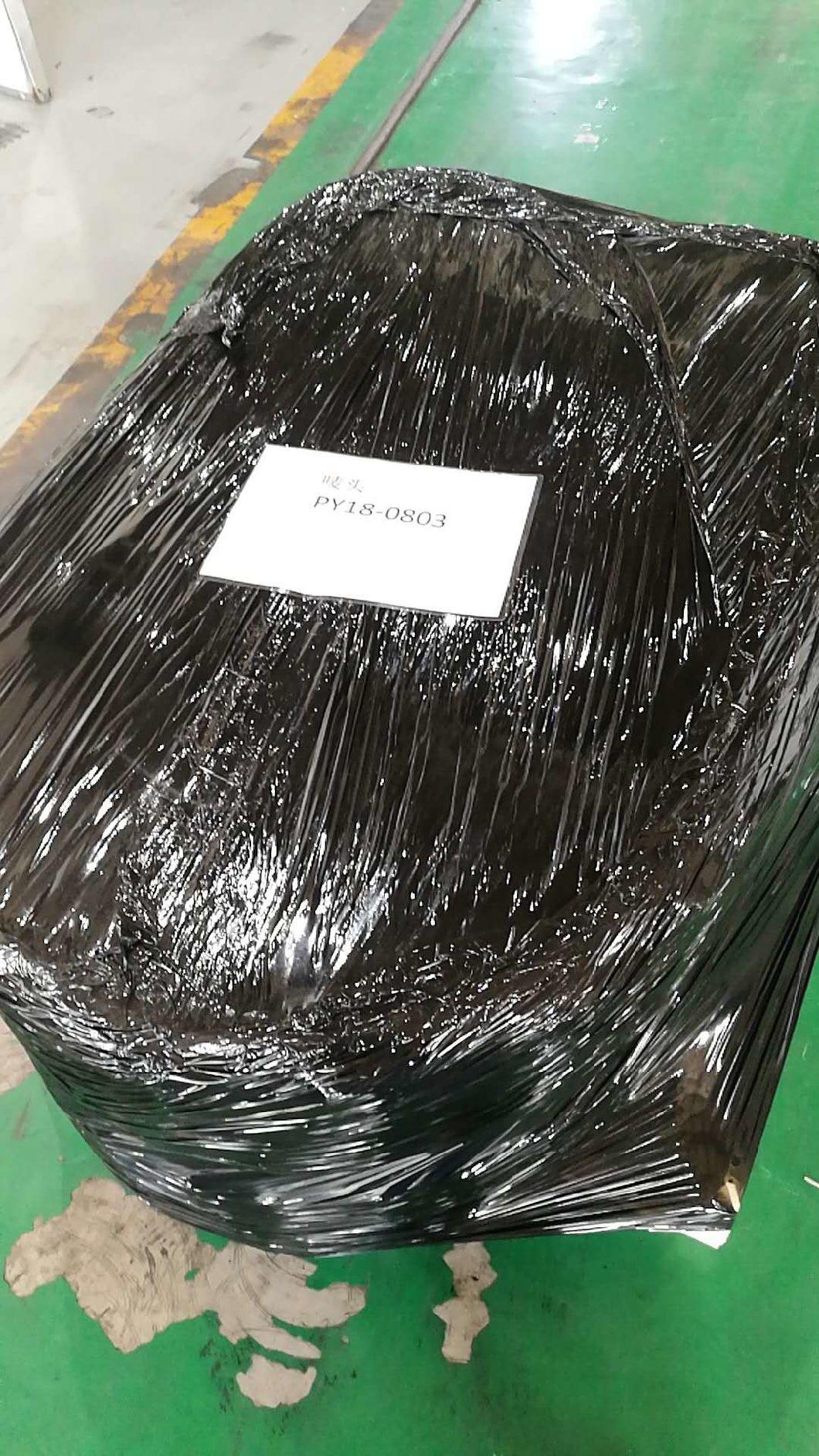

11. Packing
