• Model NO.：XG806F
• Drive Type：Internal Combustion Drive
• Bucket Capacity：0.1~0.5m³
• Size：Small-Scale
• Certification：CE, ISO9001: 2000
• Condition：New
• Transport Package：Nude Package
• Specification：5900*2000*2680mm
• Trademark：XGMA
• Origin：China
• Production Capacity：100 Units,Month

Overview

Product Description

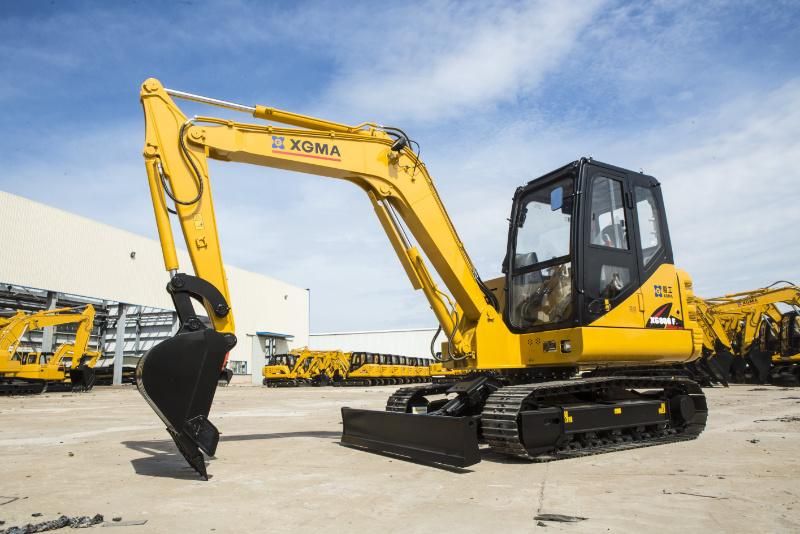

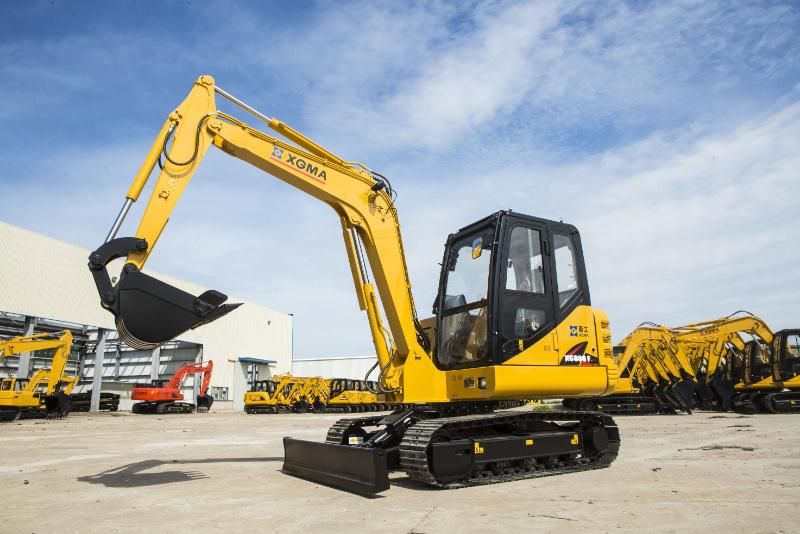

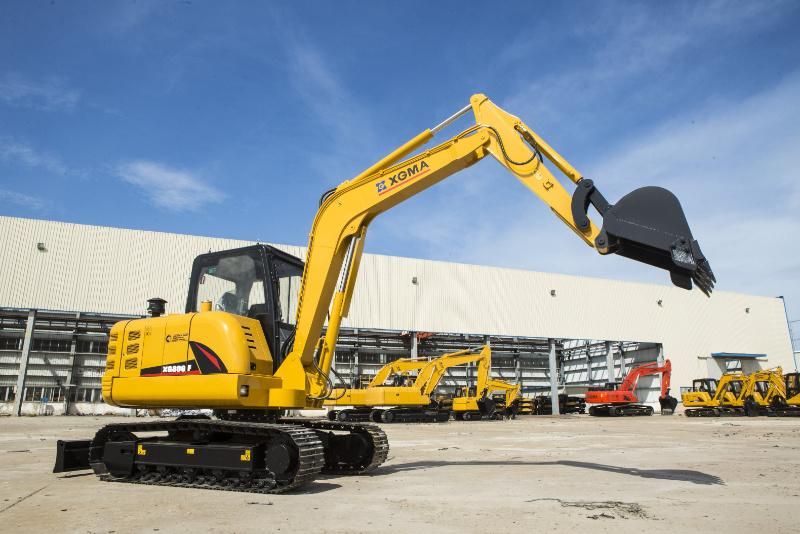

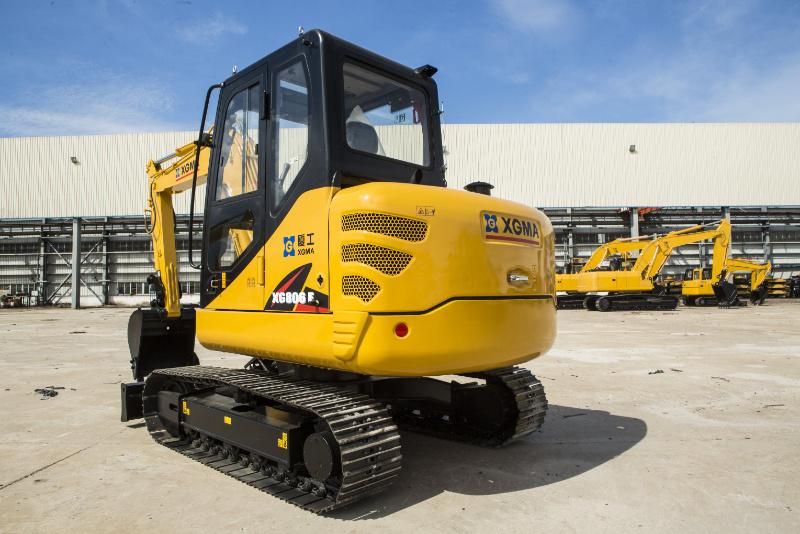

Detailed Photos

Product Parameters

DescriptionUnitXG806FXG808FXG809FBasic parametersStandard bucket capacitym30.210.30.35Operating Weightt5.858.18.1EngineModelV2607-DI-T-E3BV2607-DI-T-E3BV3800DIPiston displacementL2.6152.6153.77Maximum drawbar pullNm/rp225.8/1600225.8/1600310/1600Rated power/speedkW/(r/min)43/200043/200061.6/2200Implement CircuitsMPa24.527.527.5System Operating PressureSwing CircuitsMPa2320.620.6Travel CircuitsMPa2127.527.5Maximum Rated Flow of main pumpsL/min114206206Average Ground PressureKpa3234.534.5Working  range parametersBoommm300037203720Armmm160016201620Maximum digging Radiusmm610063256325Maximum Digging Depthmm382041604160Maximum Vertical digging depthmm320035503550Maximum digging heightmm575071607160Maximum dumping heightmm410050805080Max.excavating force(arm/bucket)kN33.8/4540/5540/55Performance parameters of the whole machineTravel Speed (high/low)km/h4.5/2.55.1/3.25.1/3.2Grading  capacity°/ %35°/70%35°/70%35°/70%Max.tractionkN566161Overall dimensions(L×W×H)mm5900*2000*26806080*2222*26006080*2222*2600Overall  dimensionsTrack Gaugemm160017501750Minimum Foreside Swing Radiusmm232516901690Minimum Tail Swing Radiusmm171017501750Hydraulic Oil Filling CapacityL1008888Hydraulic Oil Tank CapacityL120107107Fuel Tank CapacityL100135135
