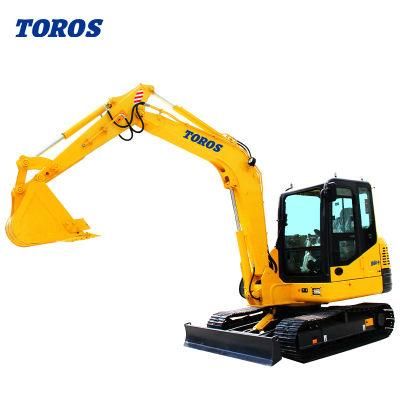

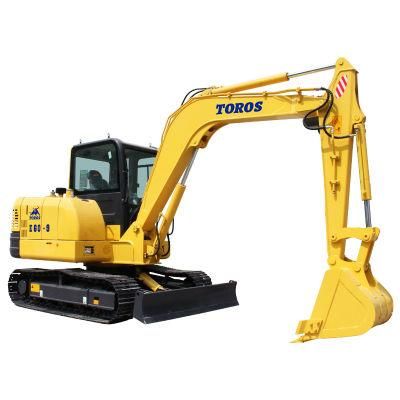

Hot Sale China 6 Ton 6t Cheap Yanmar Engine Mini Cabin Excavator Digger with Closed Cabin/Hydraulic/Crawler/CE/for Agriculture
Shandong TOROS Machinery Co., Ltd.- After-sales Service：Provide a Lifelong Online Problem Solution
- Warranty：12 Months Warranty Service
- Type：Crawler Excavator
- Usage：Mining Excavator, GM Excavator
- Bucket：Backhoe
- Transmission：Hydraulic Transmission
Base Info
- Model NO.：TE60
- Drive Type：Internal Combustion Drive
- Bucket Capacity：0.22cbm
- Size：Small-Scale
- Certification：CE, ISO9001: 2000
- Condition：New
- Engine Model：Yanmar 4tnv98
- Power(Kw/R/Min)：44,2200kw,R,Min
- Volume of Fuel Tank：100L
- Traveling Speed：4.2,2.2km,H
- Slew Speed：9.5r,Min
- Bucket Excavating Force：38.5kn
- Bucket Rod Length：1630mm
- Length of Swing Arm：3000mm
- Ground Pressure：33.5kpa
- Hydraulic Oil Tank Volume：80L
- Counterweight Ground Clearance：700mm
- Total Weight：5.85 Ton
- Maximum Excavating Distance：6170mm
- Maximum Excavating Depth：3860
- Overall Dimension ( Lxwxh)：5960*1960*1995mm
- Transport Package：FCL and LCL
- Specification：5960*1960*1995mm
- Trademark：TOROS
- Origin：Shandong, China
- HS Code：8429521200
- Production Capacity：5000sets,Month
Description
TE60 Mini ExcavatorTotal weight (TON) 5.85 A- Overall length (mm) 5960 O-Maximum excavating height(mm) 5750 Bucket capacity(m3) 0.22 B- Overall width (mm) 1960 P-Maximum unloading height(mm) 3980 Engine model YANMAR 4TNV98 C- Total height(Swing arm top)(mm) 1995 Q-Maximum excavating depth(mm) 3860 Power(kw/r/min) 44/2200 D- Total height(Cab roof)(mm) 2690 R- Maximum vertical wall excavating depth(mm) 3040 Volume of fuel tank (L) 100 E-Counterweight ground clearance (mm) 700 T- Maximum excavating distance 6170 Traveling speed (km/h). 4.2/2.2 F- Min. ground clearance (mm) 360 U- Maximum excavating distance at ground level(mm) 6045 Slew speed (r/min) 9.5 G- Turning radius of vehicle tail(mm) 1700 V- Minimum turning radius(mm) 2380 Gradeability(%) 70 H- Ground contact length of track(mm) 2000 W- Maximum height at minimum turning radius(mm) 4395 Bucket excavating force (KN) ISO 38.5 J- Track shoe length (mm) 2560 X- Distance between the center of gyration and the rear end side(mm) 1700 Bucket rod length(m) 1630 K- Track gauge(mm) 1560 Z- Counterweight height(mm) 1685 Length of swing arm (m) 3000 L-Track shoe width (mm) 1960 A1- Ground contact length(during transportation)(mm) 3370 Ground pressure(KPa) 33.5 M- Track shoe width(mm) 400 Hydraulic oil tank volume (L) 80 N-Rotary table width(mm) 1906
