• Model NO.：SD6NLGP
• Engine Power：74~147kw
• Certification：CE, ISO9001: 2000
• Condition：New
• Color：Yellow
• Track Gauge(mm)：1980
• Min.Ground Clearance(mm：404
• Ground Pressure(Kpa)：71.9
• Blade Width(mm)：3500
• Max.Digging Depth(mm)：498
• Engine Type：Weichai
• Rated Revolution(Rpm：2200
• Max.Torque(N.M/Rpm)：570,1450
• Forward Km/H：0-10.5
• Backward Km/H：0-10.5
• Transport Package：by Container
• Specification：5677*3500*3402mm
• Trademark：HBXG
• Origin：China
• HS Code：8429119000
• Production Capacity：100,Month

Blade

Straight and Tilting

Operation weight:(kg)

23800(without ripper)

Ground pressure:(kpa)

71.9

Track gauge(mm)

1980

Min. ground clearance:(mm)

404

Gradient:

30°/25°

Dozing capacity:(m3)

8.4

Blade width:(mm)

3500

Max. digging depth:(mm)

498

Overall dimensions:(L×W×H)(mm)

5677×3500×3402

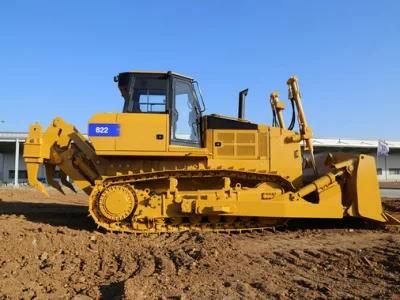

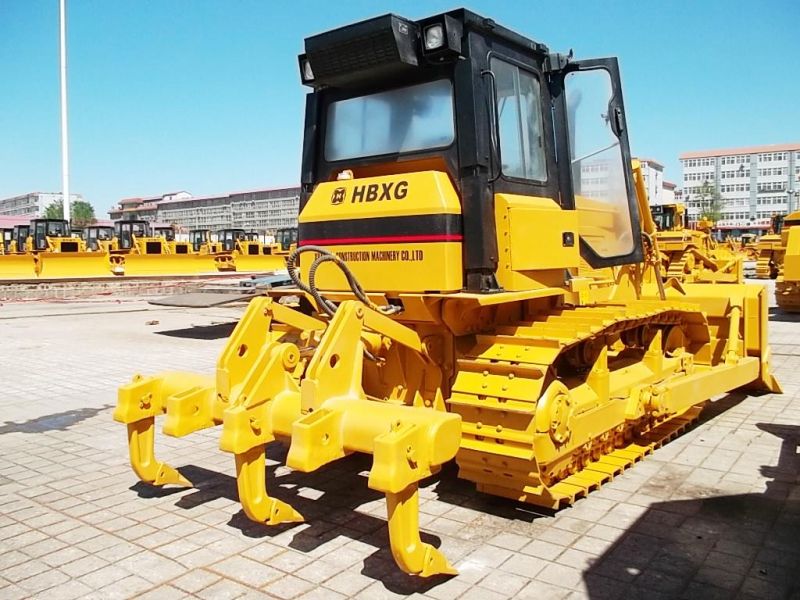

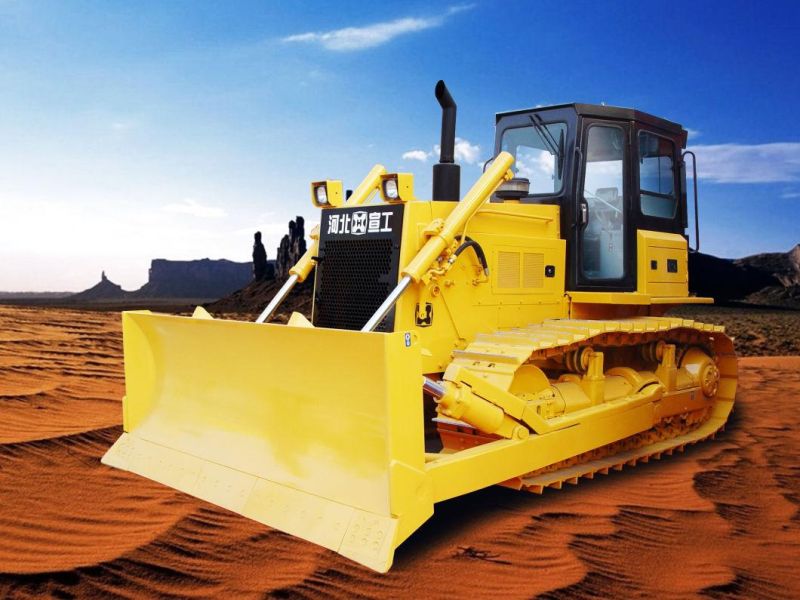

Pictures
