• Model NO.：LG946
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Small Loader
• OEM：Available
• Tire：17.5-25
• Operating Weight：7200kg
• Bucket Capacity：1.3cbm
• Transport Package：Nude Carbo
• Specification：6540*2150*3100mm
• Trademark：LuGong
• Origin：China
• HS Code：8429510000
• Production Capacity：40000

Basic Info.

Model NO. LG946 Load and Unload Mode Front Discharge Walking Mode Wheeled Type Small Loader OEM Available Tire 17.5-25 Operating Weight 7200kg Bucket Capacity 1.3cbm Transport Package Nude Carbo Specification 6540*2150*3100mm Trademark LuGong Origin China HS Code 8429510000 Production Capacity 40000

Product Description

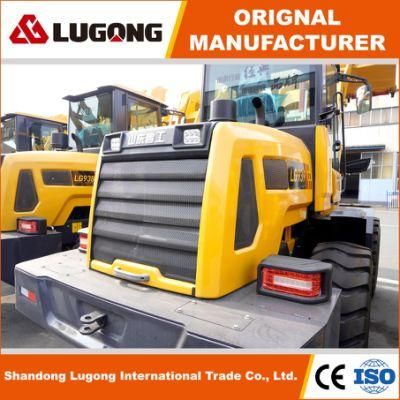

Lugong Hot Sale Agriculture Construction Eqipment LG946  Front End Wheel Loader Mini Loader Small Wheel Loader Backhoe Loader

The parameter of LG939


	LG930	LG938	LG939	LG940	LG946
bucket capacity	0.90m³	1.0m³	1.0m³	1.0m³	1.3m³
rated load	1800kg	2000kg	2200kg	2200kg	2500kg
operating weight	3500kg	4500kg	4950KG	5750kg	7200kg
overall dimension	5340X1900X2750mm	6000X2050X2950mm	6200X2150X2950mm	6250X2150X2950mm	6540X2150X3100mm
bucket width	1900mm	2000mm	2200mm	2200mm	2400mm
Max. dumping height	3200mm	3500mm	3500mm	3800mm	3800mm
Max. dumping distance	650mm	750mm	800mm	800mm	650mm
turning radius	4900mm	4500mm	4500mm	6000mm	6000mm

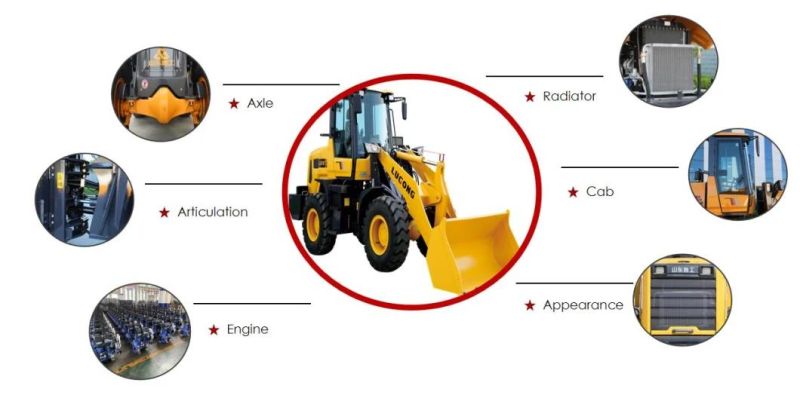

Advantages of LG939 Wheel Loader


1.Engine

•Famous brand opption:CUMMINS, DEUTZ, YUNNEI;
•Better cost-effective and best cooperation with brands:WEICHAI-HF, YUCHAI,SIDA

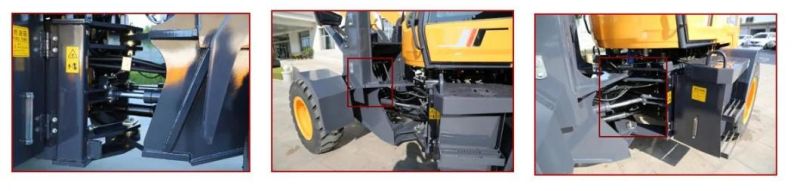

2.Articulaiton

•Three-layer articulation design uniform stress and prevent deformation.
• Extended and widened plate charges in column,more strengthfull.
•Trajectory coincidence technology reduce tire wear and machine load capacity, turning radius is small and more flexible.

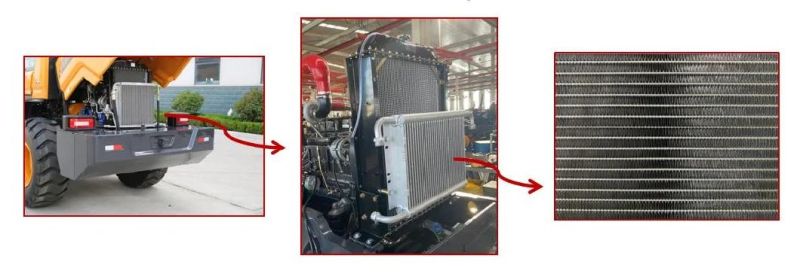

3.Cooling systerm

•High level water tank gets better radiation effect.
•Water and oil cooling systerm separately.
•Large hole grid and widen 32mm double-row pipes increases radiation effect and prevent blocked;

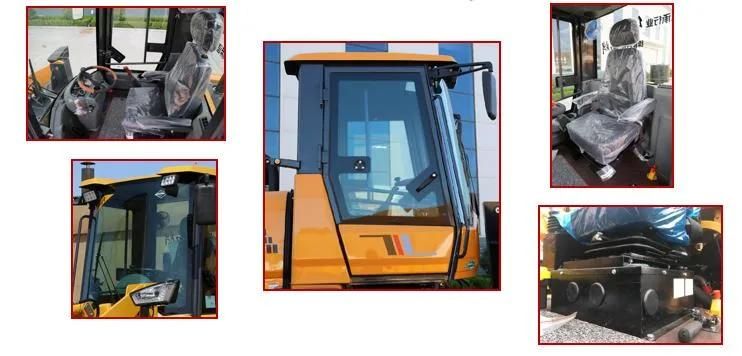

4.Cab

•Drawing stamping process gets high structural strength and big space for cab;
•Air-damping luxury seat , more comfortable and reduce exhaustion of long time driving;
•One-piece curved window shield gets better driving vision;
•Optional air conditioner improves driving comfort.

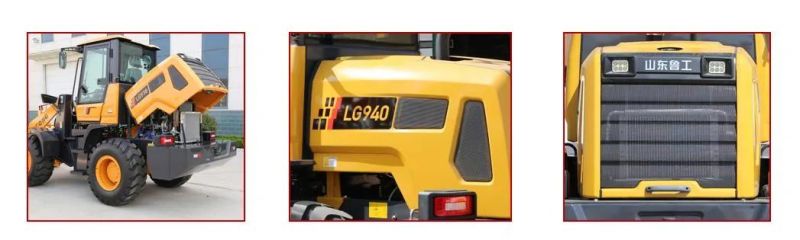

5.Appearance

•Drawing stamping process gets high structural strength and arc design gets good visual effect;
•Large open angle is convenient for repair;
•Electro-painting prevents metal from getting rusted soon.
•Stamping engineering gets more durable performance for grid plate.Small and narrow hole on it prevent dirties and crops into it.

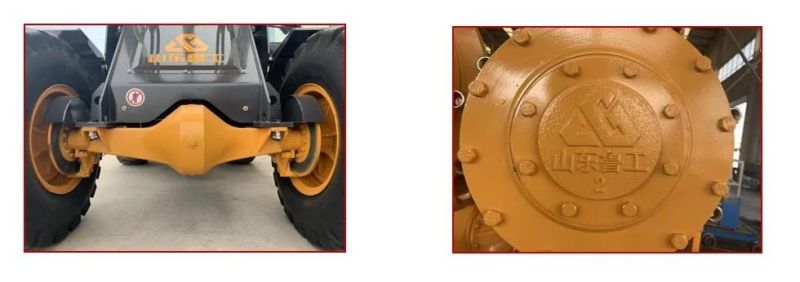

5.Axle
•Special patented axle with big hub reduction.
•Speed ratio 7:41, large torque and more power, speed acceleration fast.
•Casting steel, 200kg heavier than other brands. Stronger and more durable.
•Used on light-heahy trucks, high precision and low failure rate.

Other Details

• Shanghai "Steel" brand tire and made of 18PR Nylon;
•H type joint with two sealing rings ensures no oil leakage;
•Front and rear brake pumps separated design prevents brake failure;
• Quick-change connector on air reservoir is convenient for inflation;
•LED lights are more bright and have longer life;

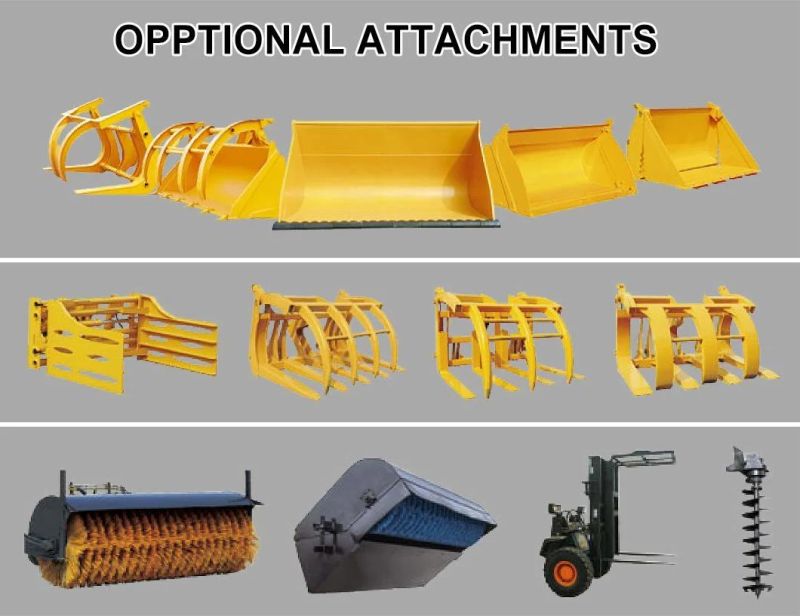

Optional Attachements

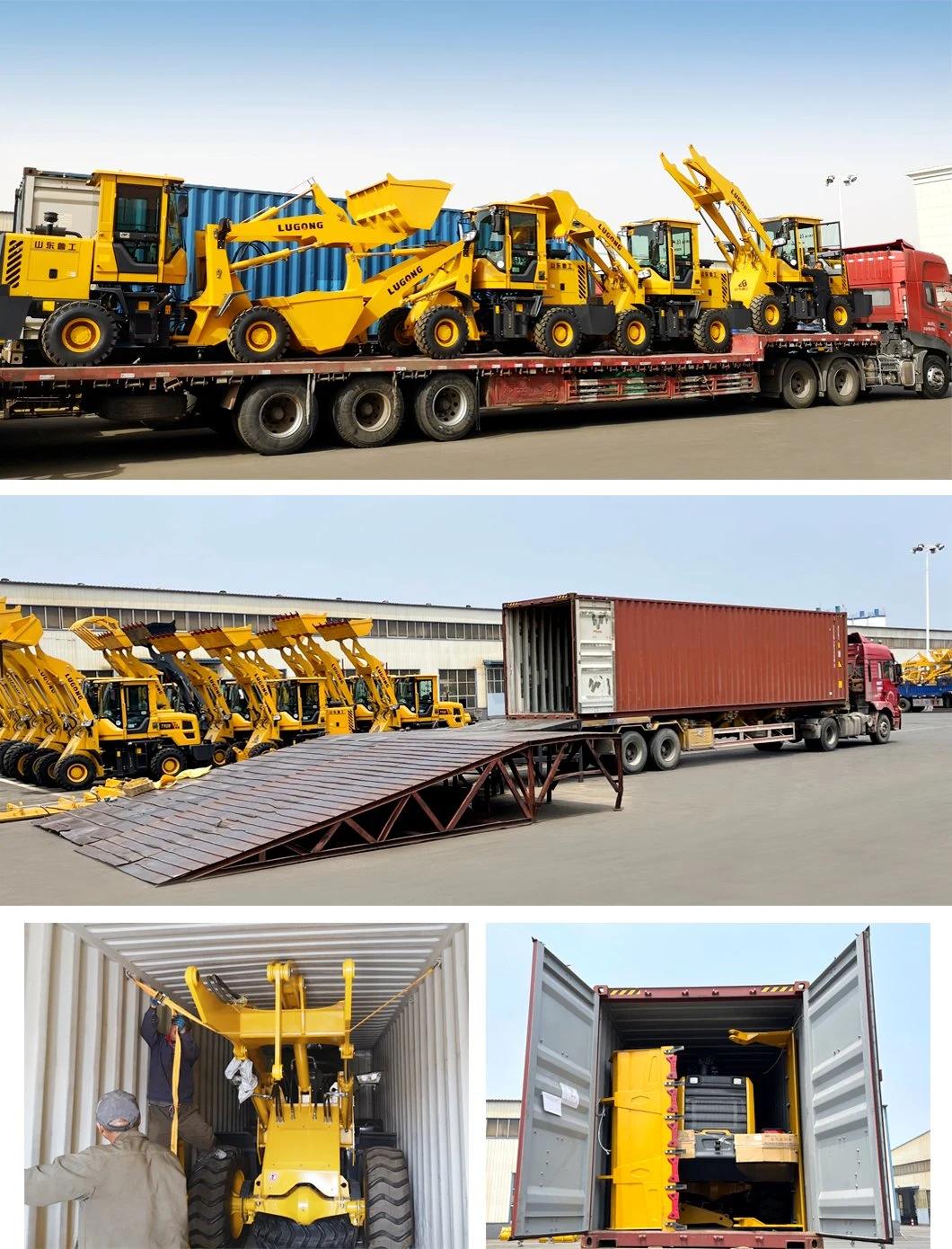

Packing & Delivery

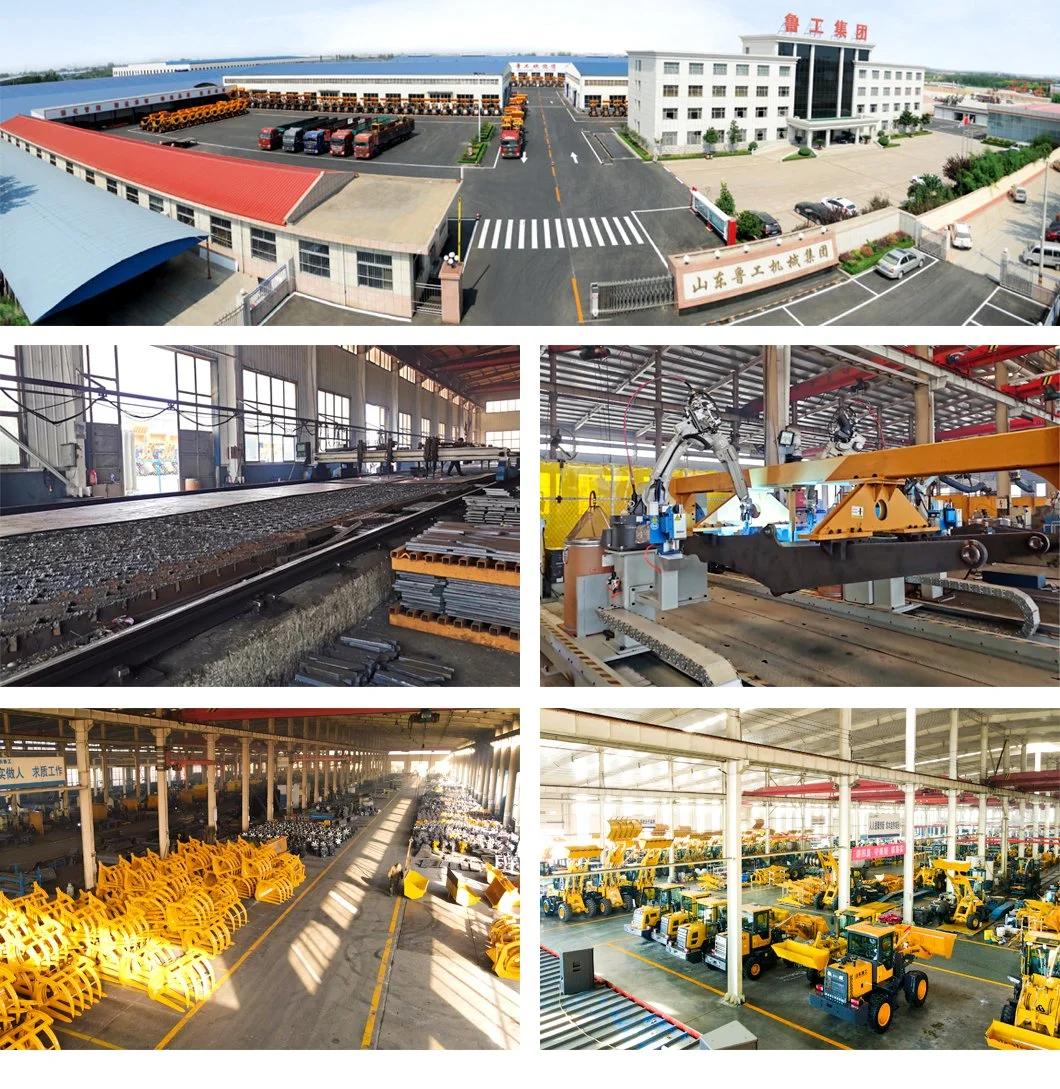

The Company Profile•Founded in 2000.
•Covers a land of 200,000 square meter.
•1100 employees,88  engineers.
•Compact wheel loaders are in leading position in demestic market.
•40,000 set of machines sold out on average last year

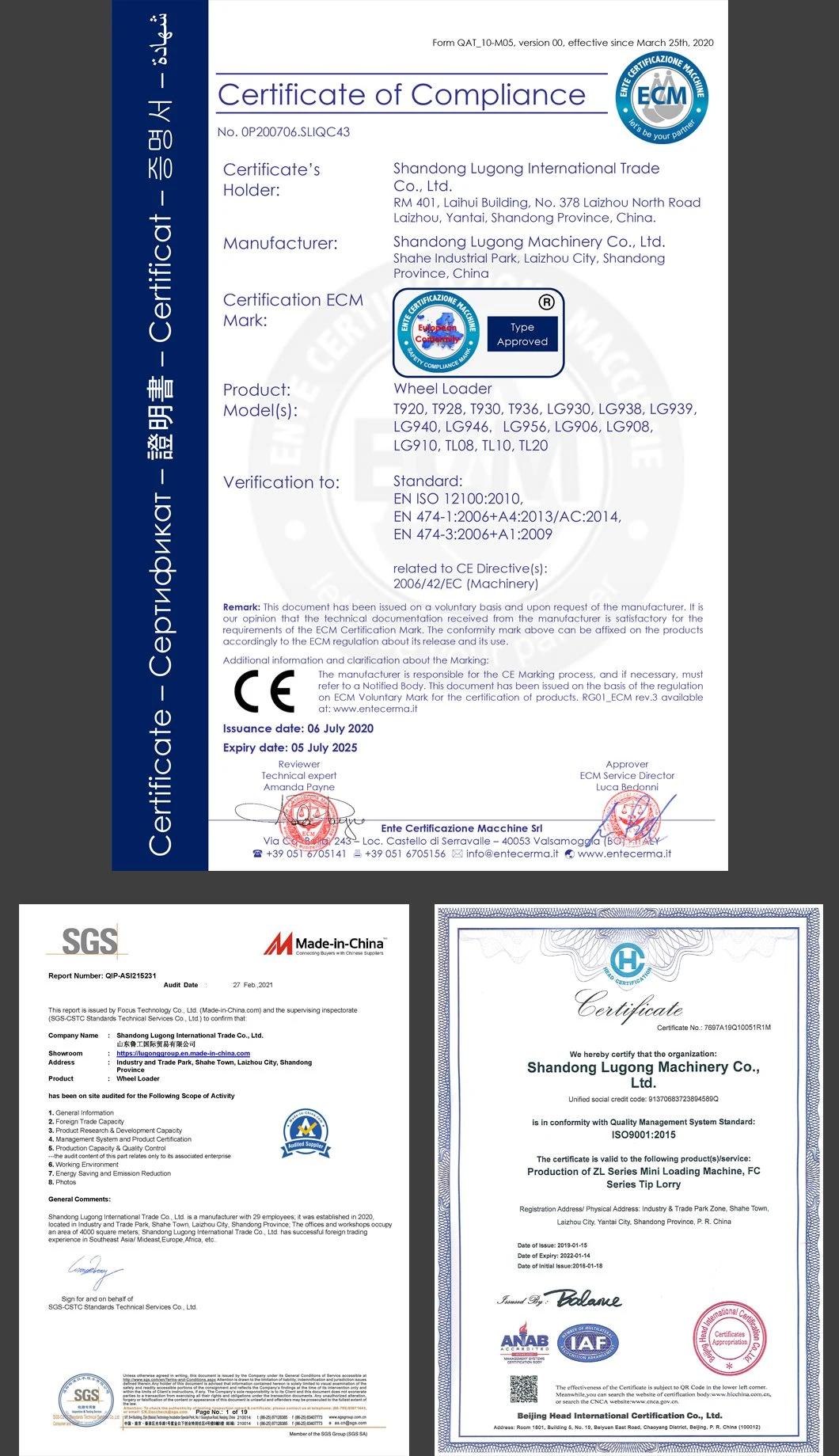

Basic Qualification
