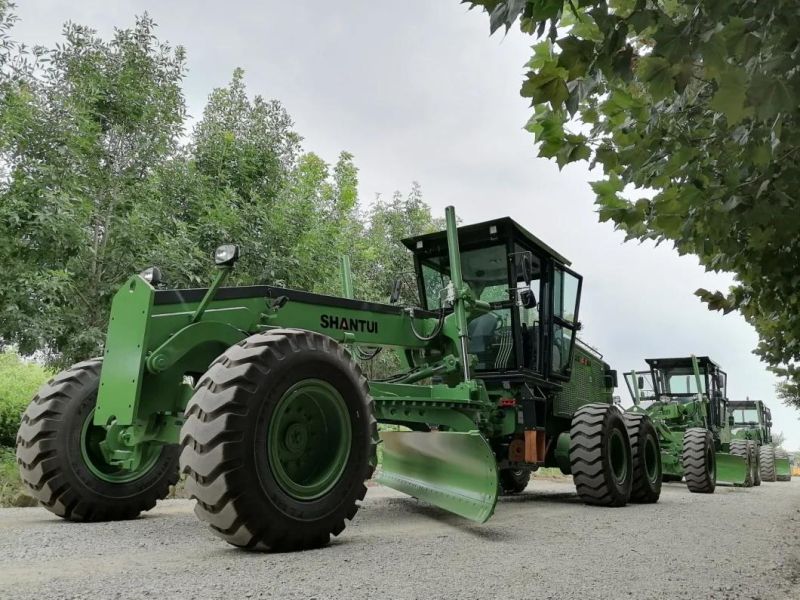

Shantui Motor Grader Sg16-3 160HP Good Quality

Evangel Industrial (Shanghai) Co., Ltd.
  • After-sales Service：1-5
  • Warranty：1 Year or 2000h
  • Certification：ISO, CE
  • Condition：New
  • Transmission：Hydraulic
  • Walking Mode：Crawler

Base Info

  • Model NO.：SG16-3
  • Type：Medium-sized Grader
  • Transport Package：Roro
  • Specification：8900*2625*3420
  • Trademark：SHANTUI
  • Origin：China
  • Production Capacity：1000,Year

Description

Basic specificationEngine model6CTA8.3Rated power/speed  160kW/2200rpmDimension(LxWxH)9105×2625×3470mmOperating weight(Standard)16500kg

Performance specification

Travelling speed ,forward5,8,11,16,26,38 km/hTravelling speed ,reverse5,8,11,16,26,38 km/hTractive force(f=0.75)98KNMax. gradeability20%Tire inflation pressure260 kPaWorking hydraulic pressure16 MPaTransmission pressure1.3~1.8MPa

Operating specification

Max. steering angle of front wheels±50°Max. lean angle of front wheels±17°Max. oscillation angle of front axle±15°Max. oscillation angle of balance box15Frame articulation angle±27°Min. turning radius using articulation7.3mBladeMaximum lift above ground450mmMaximum depth of cutting500mmMaximum blade position angle90°Blade cutting angle28°-70°Circle reversing rotation360°Moldboard width X height4270×610mmShantui Motor Grader Sg16-3 160HP Good QualityShantui Motor Grader Sg16-3 160HP Good QualityShantui Motor Grader Sg16-3 160HP Good QualityShantui Motor Grader Sg16-3 160HP Good QualityShantui Motor Grader Sg16-3 160HP Good QualityShantui Motor Grader Sg16-3 160HP Good QualityShantui Motor Grader Sg16-3 160HP Good QualityShantui Motor Grader Sg16-3 160HP Good QualityShantui Motor Grader Sg16-3 160HP Good QualityShantui Motor Grader Sg16-3 160HP Good QualityShantui Motor Grader Sg16-3 160HP Good Quality
