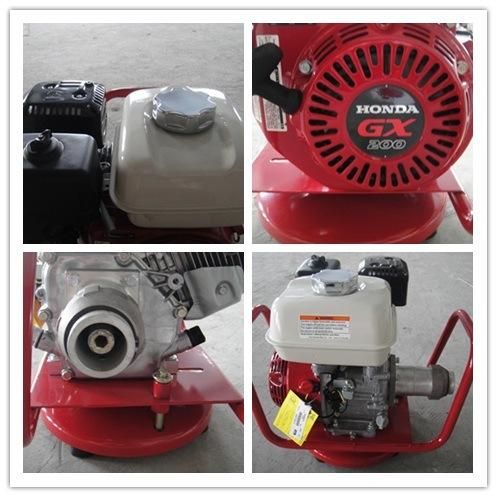

Honda Concrete Vibrator with International Warranty Service

Ningbo Ace Machinery Co., Ltd.

Type：Concrete Vibrator
Shotcrete Type：Semi-Dry
Machining Process：Assembly
Structure：Cylinder Type
Productivity：60m²,h
Feeding Height：1370mm

Base Info

Model NO.：GX160
Vibrating Amplitude：1.1mm
Certification：CE
Condition：New
Color：Red
Name：Honda Concrete Vibrator
Model：Gx160 (European Standard )
Power：5.5HP
Speed：3600rpm
Transport Package：Carton
Specification：GX160
Trademark：KZW
Origin：China
HS Code：84306100
Production Capacity：5000 PCS,Month

Description

ItemGasoline engine vibratorModelZXHZXH2Engine ModelHONDA GX160HONDA GX200Engine type4-stroke 25° Single-cylinder with Air-cooledBorex stroke68*45mm1-67*52mmDisplacement163 cm3183cm3Compression Ratio8.5:18.5:1Max power5.5hp/3600rpm6.0hp/3600rpmRecommded power using4.8hp/3600rpm5.0hp/3600rpmFuel Tank capacity3.6L3.6LFuel consumption230g/hp-hr (313g/kwh)230g/hp-hr (313g/kwh)packing size53*39*43cm53*39*43cmN..W/G.W.20kgs/22kgs20kgs/22kgs
Concrete vibrator shaftModel¢(mm)ZX35ZX-38ZX-45ZX-50ZX-60ZX-70Diameter of head¢(mm)353845505070Length of headL (mm)380420420480410450Vibrating Frequency(HZ)183185185200200200Vibrating Ampitude(mm)0.9111.21.151.151.35Dia of flexiable hoseD(mm)303032363636Diaof flexiable shaftD(mm)101010131313Weight (6mtr)(kg)141516202124packing sizeCM75*75*5.5

Category

Concrete Machinery

Engineering & Construction Machinery Parts

Mortar Spray Machine

Other Engineering & Construction Machinery

Paving Machinery

Pipe Jacking Machine

Rendering Machine

Recommended

Mini Tower Crane Hook New
F0/23BH3/36BH25/14CH20/14CK30/30H40/40C1.The purchase of hooks shall be used by technical documents such as the certificate of the manufacturer;The lifting hook, such as railway, port, etc., must be strictly inspected (inspection).2. The lifting hook shall not have any defects affecting the safe use
Tower Crane Part Control Joystick Scm Yongmao Fo/23b H3/36b
1 ApplicationQTXXX series hoisting console is mainly used to control the starting,speed,braking and steering of tower crane hoist.2 Structure characteristicThis product imported F0/23B,H3/36B tower crane hoisting console device from aFrench company which widely apply for various products and operati
Qtf2 Joysticks for Tower Crane Cabin Control
1 ApplicationQTXXX series hoisting console is mainly used to control the starting,speed,braking and steering of tower crane hoist.2 Structure characteristicThis product imported F0/23B,H3/36B tower crane hoisting console device from aFrench company which widely apply for various products and operati
High-Speed Indonesia Type Gasoline Concrete Vibrator (Honda GX160)
High-frequency vibrator shaftModel¢(mm)ZX-35ZX-45ZX-50Diameter of head¢(mm)354550Length of headL (mm)330390410Vibrating Frequency(HZ)200200200Vibrating Ampitude(mm)0.911.21.3Diameter of flexiable hoseD(mm)303030Diameter of flexiable shaftD(mm)101010

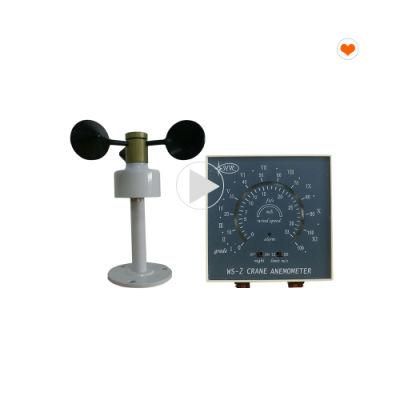

3 Cup Hot Wire Anemometer Used for Tower Crane
