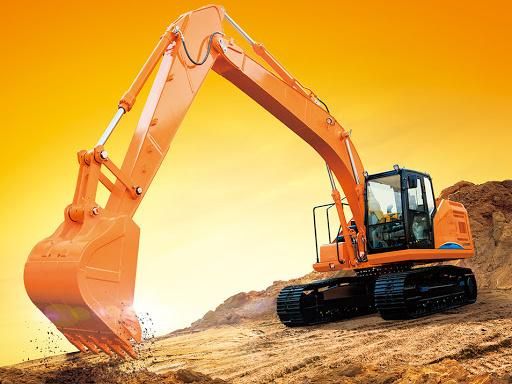

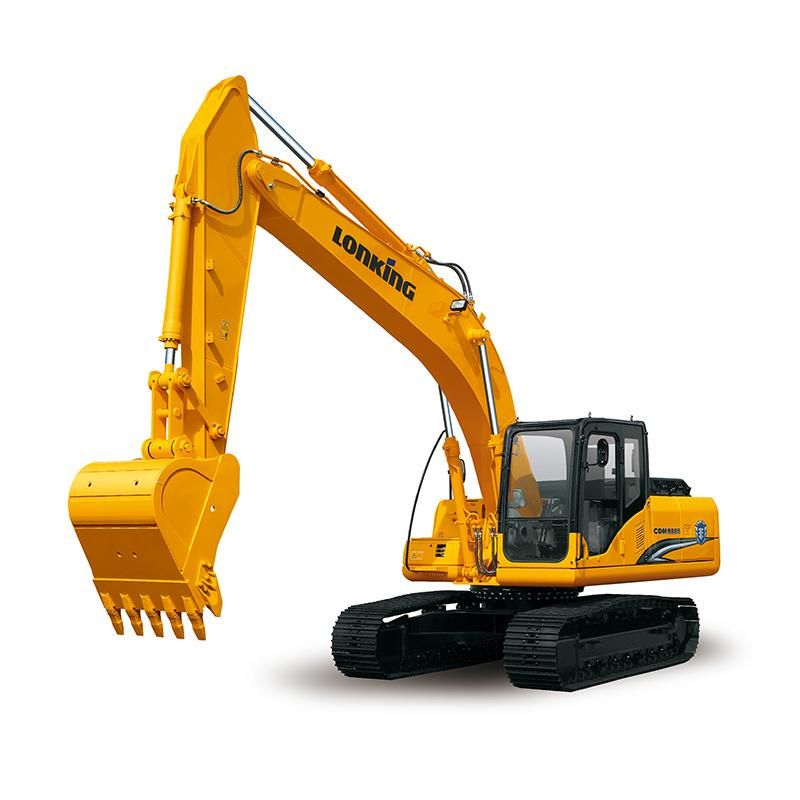

Lonking 22 Ton Hydraulic Telescopic Crawler Excavator (Cdm6225)
Sinomada Heavy Industry (Changsha) Co., Ltd.- Type：Crawler Excavator
- Usage：Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
- Bucket：Grab Shovel
- Transmission：Hydraulic Transmission
- Drive Type：Internal Combustion Drive
- Bucket Capacity：1.0~1.5m³
Base Info
- Model NO.：CDM6225
- Size：Medium-Sized
- Certification：CE, ISO9001: 2000
- Condition：New
- Rated Power：112kw
- Boom Length：5675mm
- Arm Length：2920mm
- Bucket Radius：1452mm
- Transport Package：Nude,Container
- Specification：21800kg
- Trademark：LONKING
- Origin：China
- HS Code：8429521200
- Production Capacity：100units,Month
Description
Overview
Product DescriptionModel CDM6225 General Operating weight( kg) 21800 Standard bucket(m³) 1.1 Bucket range(m³) 0.8-1.1 Ground pressure(kPa) 51 Travel speed(km/h) 3.33/5.54 Swing speed (rpm) 11.6 Gradeability 35° (70%) Engine Model Cum.mins 6BTAA5.9-C (Euro II) Rated power(Kw(hp)/rpm) 112 (150) /1950 Displacement (L) 5.9 Fuel tank(L) 380 Hydraulic System Max.pressure of Implements(MPa) 34.3 Max. flow of system( L/min) 208×2 Hydraulic oil tank(L) 280 Working Device Boom length(mm) 5675 Arm length(mm) 2920 Bucket radius(mm) 1452 Digging Force Max. arm digging force (SAE/ISO)(kN) 102/105 Max. bucket digging force (SAE/ISO)(kN) 135/158
