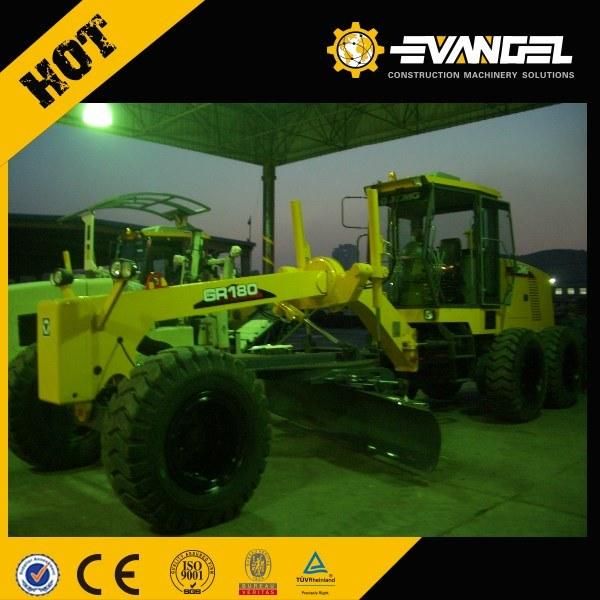

Motor Grader Gr180 with Imported Engine 180HP Motor Grader for Sale

Evangel Industrial (Shanghai) Co., Ltd.
  • Certification：ISO9001: 2000
  • Condition：New
  • Transmission：Power Transmission
  • Walking Mode：Wheeled
  • Type：Motor Grader
  • Weight：15400 Kg

Base Info

  • Model NO.：GR180
  • Dimension：8900X2625X3470mm
  • Forward Speed(Km/H)：38
  • Reverse Speed(Km/H)：23
  • Usage：Special Type
  • Scraper Type：Tractor-Scraper
  • Load and Unload Method：Front Discharge
  • Engine Power：147~515kw
  • Color：Yellow
  • Transport Package：Nude Package
  • Specification：ISO, CE
  • Origin：Jiangsu, Nanjing
  • HS Code：84292010
  • Production Capacity：500 Set,Month

Description


Basic specification
Engine model6CTAA8.3 D6114Rated power/speed138kW/2200  140kW/2300rpmDimension(LxWxH)8900×2625×3470mmOperating weight(Standard)15400kg
Performance specification
Travelling speed ,forward5,8,11,19,23,38 km/hTravelling speed ,reverse5,11,23 km/hTractive force(f=0.75)79KNMax. gradeability20%Tire inflation pressure260 kPaWorking hydraulic pressure16 MPaTransmission pressure1.3~1.8MPa
Operating specification
Max. steering angle of front wheels±50°Max. lean angle of front wheels±17°Max. oscillation angle of front axle±15°Max. oscillation angle of balance box15Frame articulation angle±27°Min. turning radius using articulation7.3mBiadeMaximum lift above ground450mmMaximum depth of cutting500mmMaximum blade position angle90°Blade cutting angle28°-70°Circle reversing rotation360°Moldboard width X height3965×610mm
