Hengwang Concrete Mixer Truck Cement Mixer with Truck Loading
JINING HENGWANG CONSTRUCTION MACHINERY CO., LTD.- After-sales Service：Provide
- Warranty：One Year
- Type：Concrete Mixing Truck
- Shotcrete Type：Wet
- Machining Process：Hydraulic
- Structure：Spiral Type
Base Info
- Model NO.：3.5cbm
- Productivity：25cbm,H
- Feeding Height：3000mm
- Vibrating Amplitude：0.8mm
- Certification：ISO9001: 2000, CE
- Condition：New
- Color：White and Blue
- Actual Mixing Capacity：3.5cbm
- Rotary Drum Capacity：3.6cbm
- Slump of Concrete：70-260mm
- Tank Capacity：540L
- Reducer Ratio：01:24
- Rated Power：91kw
- The Wheelbase：3000mm
- Max Running Speed：24km,H
- Min Steering Radius：4500mm
- Climbing Capacity：26
- Tire：16,70-20
- Driving Way：4*4
- Weight：7500kg
- Maximum Load Capacity：7800kg
- Whole Machinery Weight：15300kg
- Transport Package：Nude Package
- Specification：6650*2600*3200mm
- Trademark：HW
- Origin：China
- HS Code：8705400000
- Production Capacity：300sets,Month
Description
The main performance parameters of the chassis and the main performance parameters of the engine
Engine type / displacement
L
CF4C100T-Z-13B2
model
Straight injection type four-stroke water-cooled supercharged diesel engine
Rated power
kw/r/min
91KW/2600
Max torque
N.m/r/min
380/1500-1800
Max running speed
km/h
24
Min steering radius
mm
4500
Climbing capacity
%
26
Tire
16/70-20
Driving way
4×4
Weight
kg
7500
Maximum load capacity
kg
7800
Whole machinery weight
kg
15300
Overall size(L*W*H)
mm
6650*2600*3200
The wheelbase
mm
3000
Bucket capacity
m³
0.6

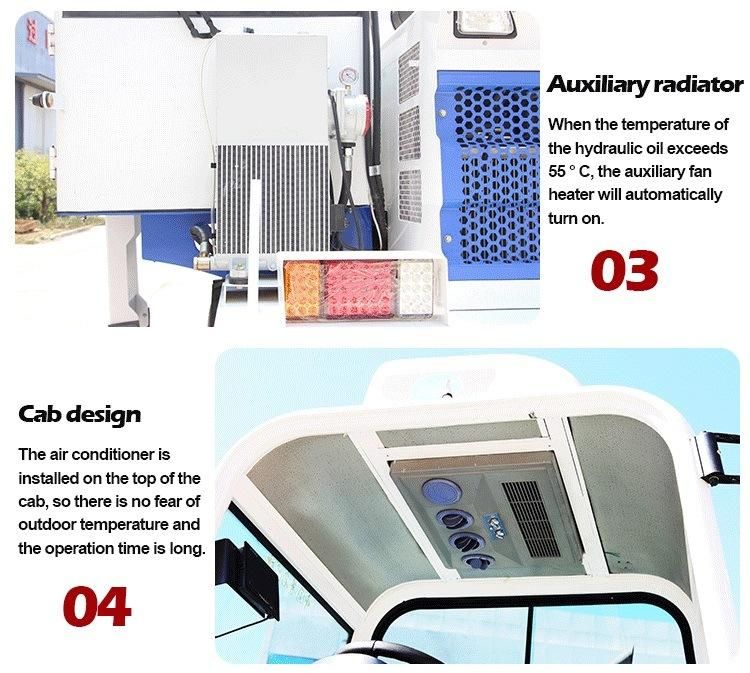

Product Details

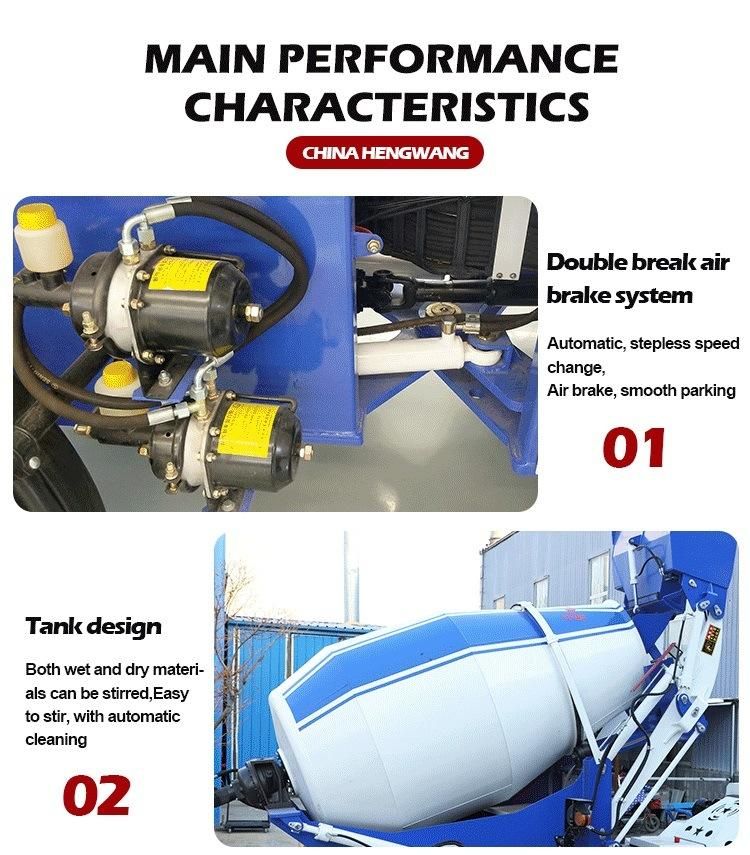

Mixer truck adapted air brake, more safety.
Automatic feeding concrete mixer truck Product details

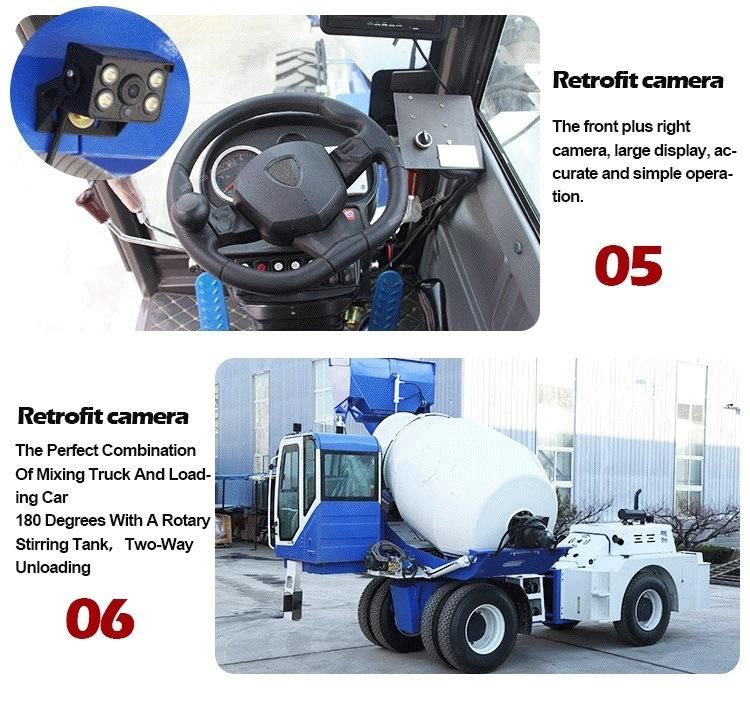

Self Loading concrete mixer truck 3.5cbm

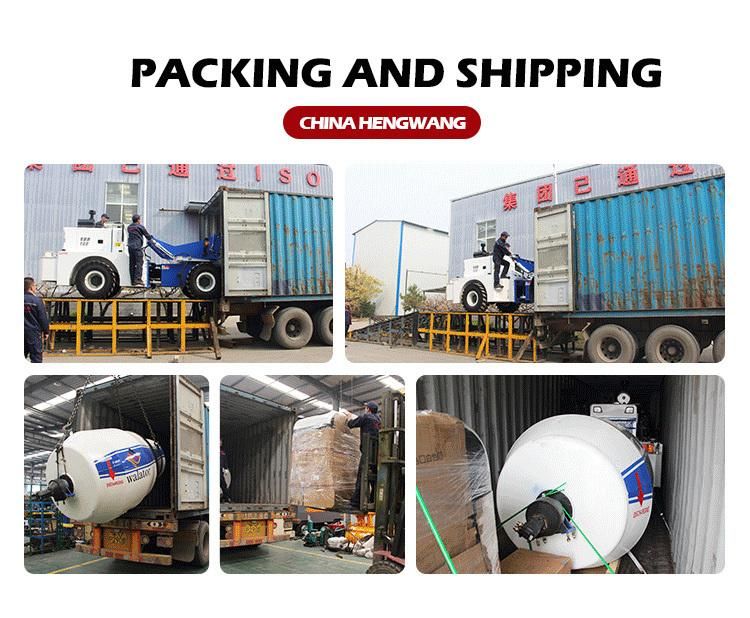

One set of 3.5cbm concrete mixer truck can be loaded in 40HQ container

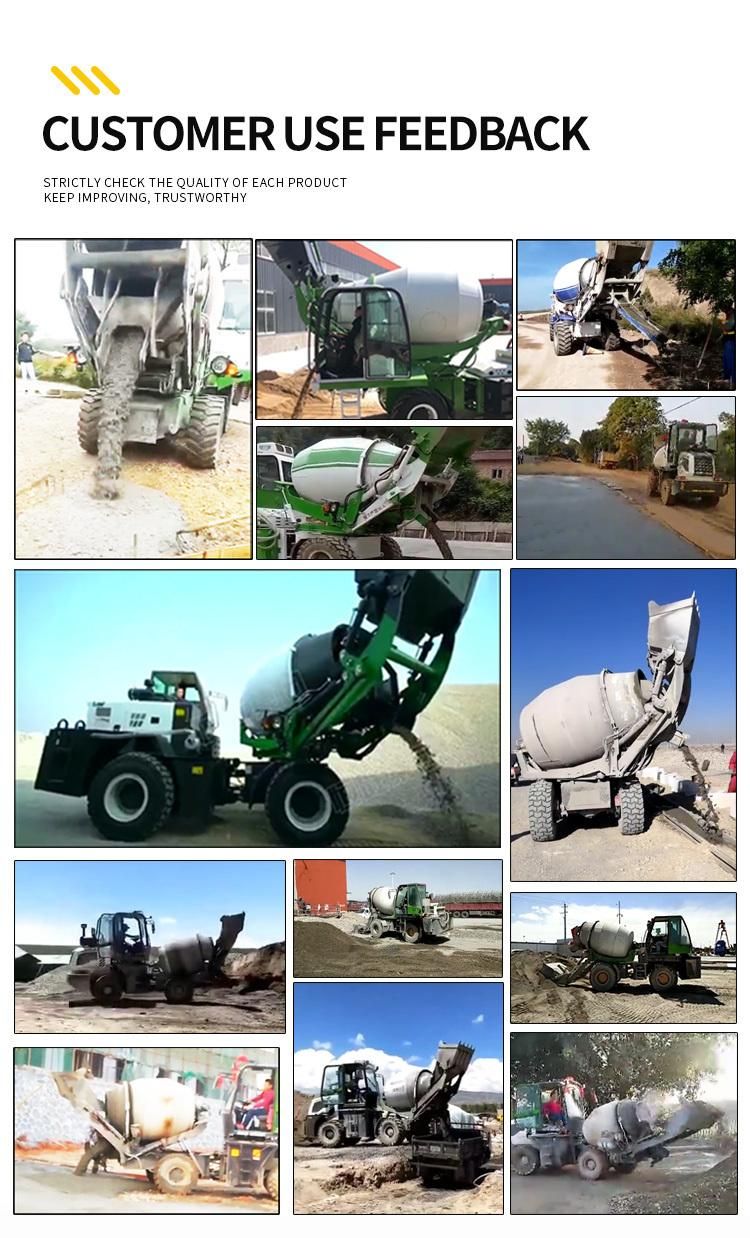

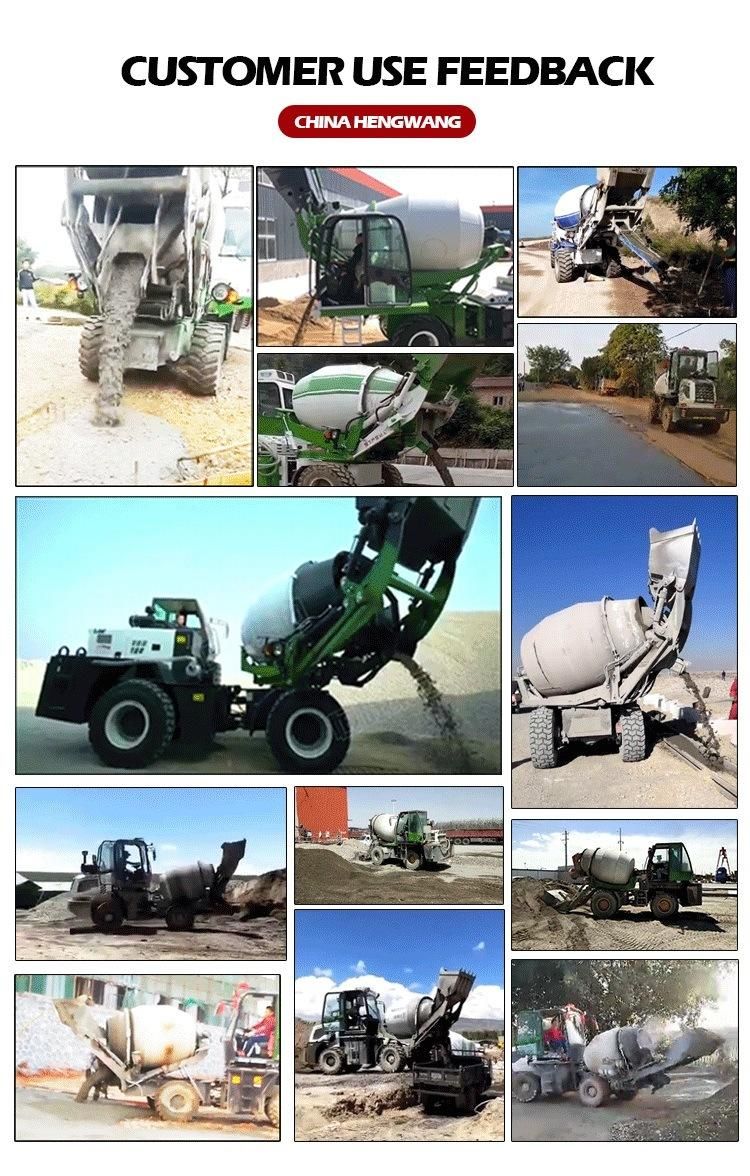

Construction Site
Company Profile
CertificationsHengwang concrete mixer trucks have CE Certification.
