• Model NO.：LG938
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Small Loader
• OEM：Available
• Tire：16,70-20
• Operating Weight：4500kg
• Bucket Capacity：1.0cbm
• Bucket Width：2000mm
• Max Dumping Height：3500mm
• Max Dumpinng Distance：750mm
• Turning Radius：4900mm
• Engine Model：Huafeng 4102 Turbo
• Axle：Awd,LG2.0t Big Hub Reduction
• Geerbox：Automatic 265 Split
• Transport Package：Nude Cargo
• Specification：6250X2020X2950
• Trademark：LuGong
• Origin：China
• HS Code：84295100
• Production Capacity：40000

Basic Info.

Model NO. LG938 Load and Unload Mode Front Discharge Walking Mode Wheeled Type Small Loader OEM Available Tire 16/70-20 Operating Weight 4500kg Bucket Capacity 1.0cbm Bucket Width 2000mm Max Dumping Height 3500mm Max Dumpinng Distance 750mm Turning Radius 4900mm Engine Model Huafeng 4102 Turbo Axle Awd,LG2.0t Big Hub Reduction Geerbox Automatic 265 Split Transport Package Nude Cargo Specification 6250X2020X2950 Trademark LuGong Origin China HS Code 84295100 Production Capacity 40000

Product Description

Easy and comfortable operating 2.0t LG938 hydraulic system loaders with log grapple

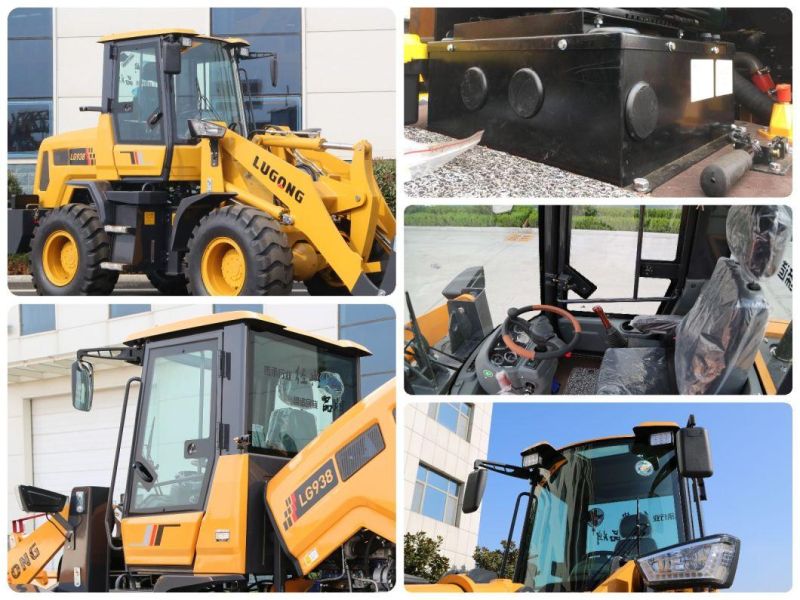

The Details and Advantages of LG938

1.Engine
•Famous brand opption:CUMMINS, DEUTZ, YUNNEI;
•Better cost-effective and best cooperation with brands:WEICHAI-HF, YUCHAI,SIDA

  2.Articulaiton
•Three-layer articulation design uniform stress and prevent deformation.
• Extended and widened plate charges in column,more strengthfull.
•Trajectory coincidence technology reduce tire wear and machine load capacity, turning radius is small and more flexible.

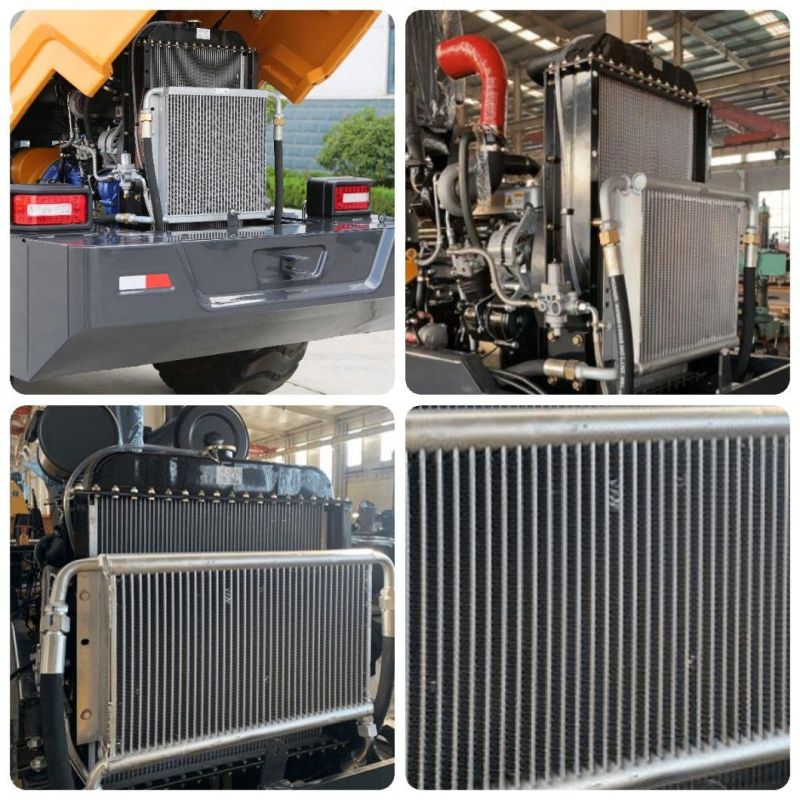

3.Cooling systerm
•High level water tank gets better radiation effect.
•Water and oil cooling systerm separately.
•Large hole grid and widen 32mm double-row pipes increases radiation effect and prevent blocked;

4.Cab
•Drawing stamping process gets high structural strength and big space for cab;
•Air-damping luxury seat , more comfortable and reduce exhaustion of long time driving;
•One-piece curved window shield gets better driving vision;
•Optional air conditioner improves driving comfort.

5.Appearance
•Drawing stamping process gets high structural strength and arc design gets good visual effect;
•Large open angle is convenient for repair;
•Electro-painting prevents metal from getting rusted soon.
•Stamping engineering gets more durable performance for grid plate.Small and narrow hole on it prevent dirties and crops into it.

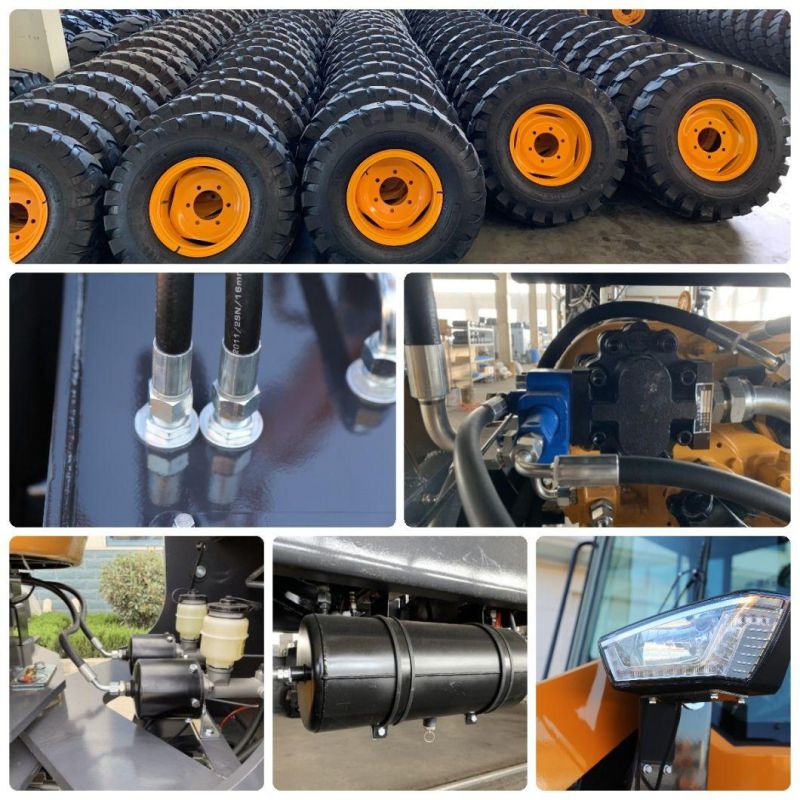

Other Details
• Shanghai "Steel" brand tire and made of 18PR Nylon;
•H type joint with two sealing rings ensures no oil leakage;
•Integrated pump and valve without hose increases safety and reduce fault;
•Front and rear brake pumps separated design prevents brake failure;
• Quick-change connector on air reservoir is convenient for inflation;
•LED lights are more bright and have longer life

The parameter of LG938


Rated Load	2000kgs	Engine Model	Power 4102 Turbo
Standard Bucket	1.0m3	Gross Power	76KW
Operating Weight	4500kgs	Torque Converter	Hydraulic
Max. Dumping Height	3500mm	Transmission Box	CVT AWD 280 Split type
Turning Radius	4500mm	Axle	2.0T Big hub reduction gear
Tyre	16/70-20	Service Brake	Dual Air Hydraulic Disc

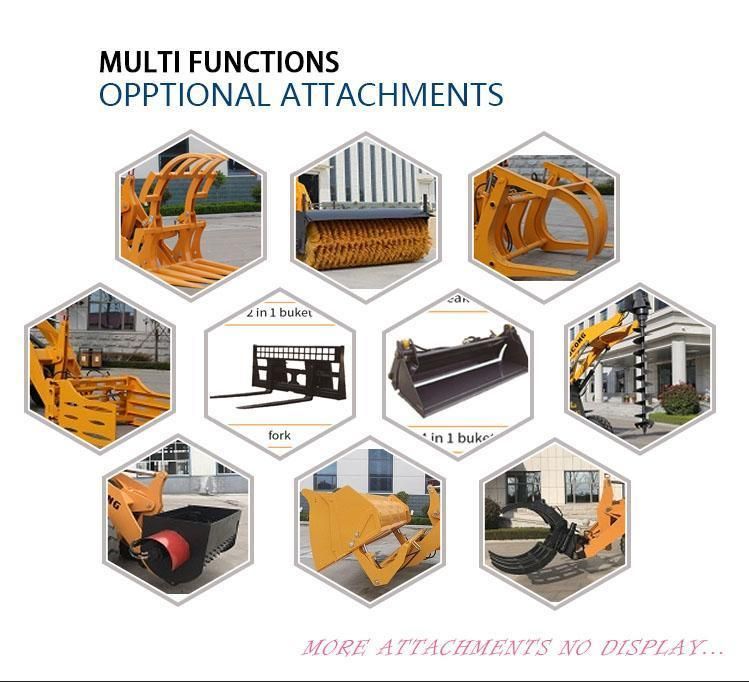

Optional Attachements

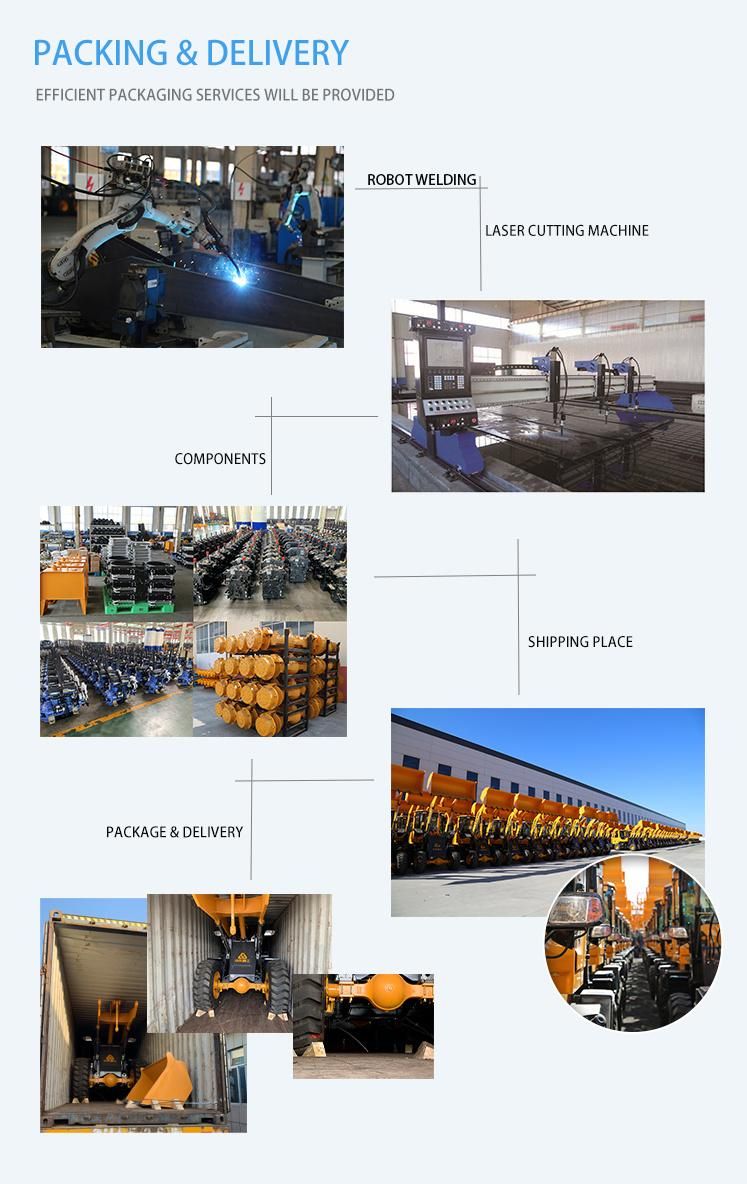

Packing & Delivery

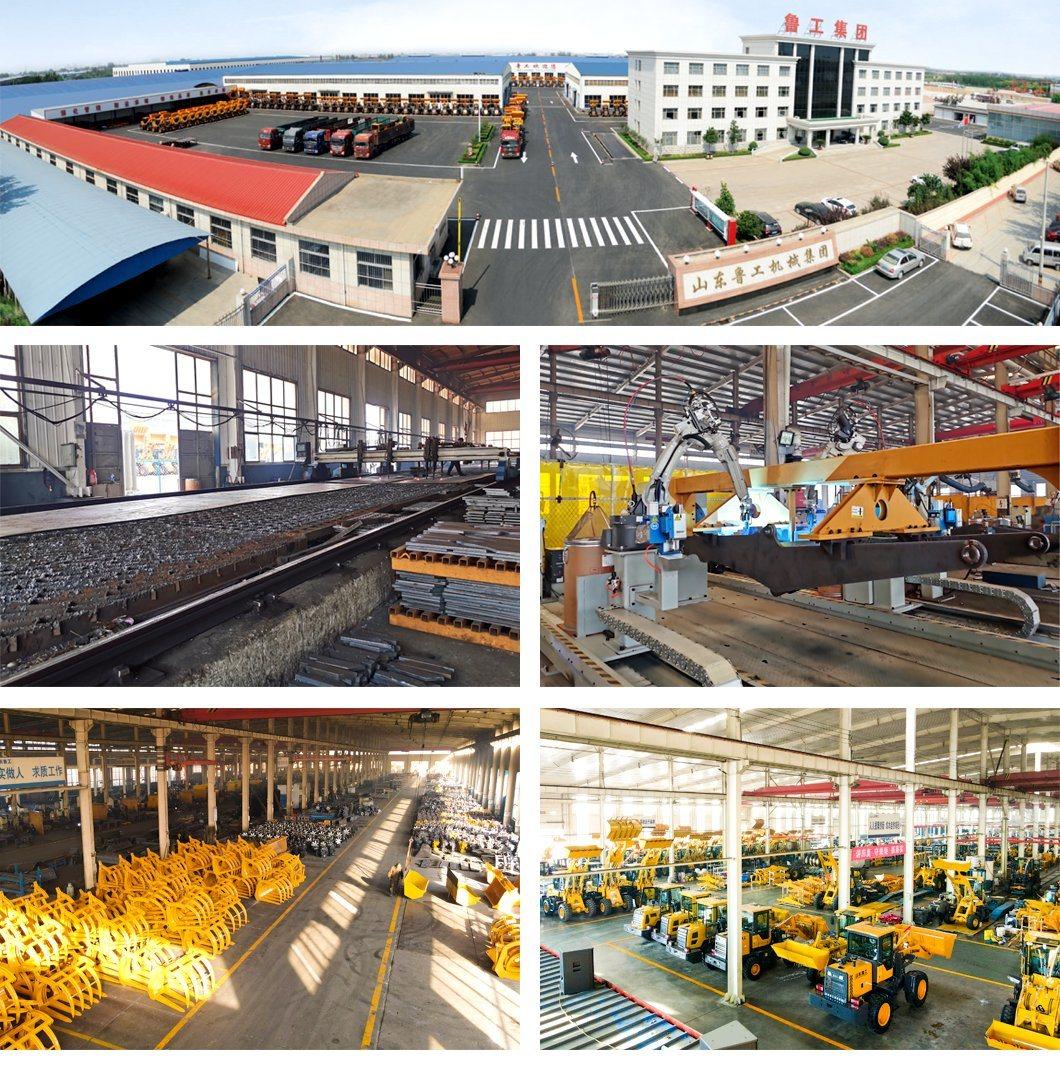

 The Company Profile
•Founded in 2000.
•Covers a land of 200,000 square meter.
•1100 employees,88  engineers.
•Compact wheel loaders are in leading position in demestic market.
•40,000 set of machines sold out on average last year


Basic Qualification



Overseas Exhibition

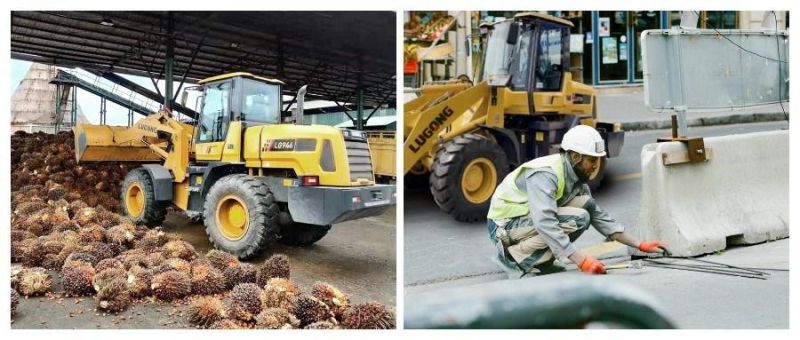

Application Case
