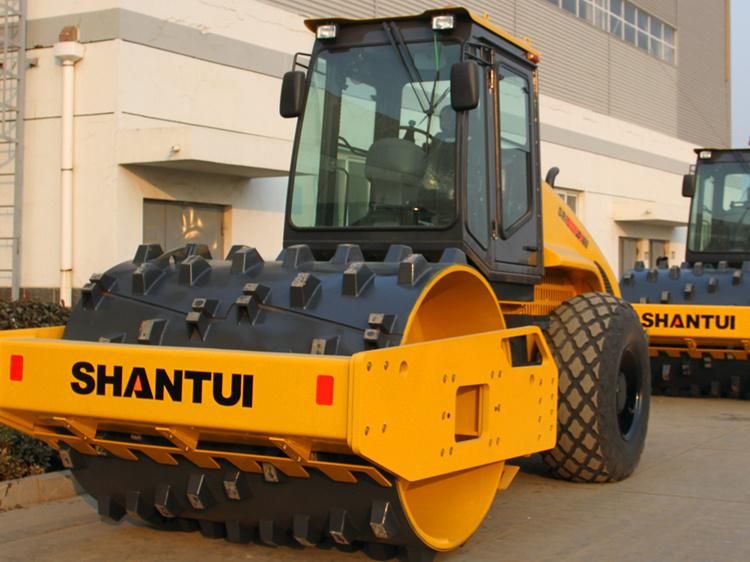

Shantui Brand Single Drum 20tons Road Roller (SR20mA)
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Type：Road Roller
- Working Method：Vibration
- Axle：Biaxial Dual-Drum
- Grinding Wheel Type：Tire Grind
Base Info
- Model NO.：SR20MA
- Compaction Depth：40cm
- Engine Type：Diesel Engine
- Travel Speed：2.8-9km,H
- Centrifugal Force：82,40
- Certification：CE, ISO 9001:2000
- Condition：New
- Operating Weight (Kg)：20000 Road Roller
- Exciting Force (Kn)：380,280
- Vibration Frequency (Hz)：29,35
- Ground Pressure (Kpa)：200-460
- Gradeability (%)：30
- Engine Model：Wp6
- Rated Power/Rated Speed (Kw/Rpm)：129,1800
- Wheelbase (mm)：1760
- Fuel Tank (L)：300
- Compacting Width(mm)：2140
- Transport Package：Container,RO-RO
- Specification：6229*2345*3180 mm
- Trademark：SHANTUI
- Origin：China
- HS Code：8429401900
- Production Capacity：100units,Month
Description
Basic Info.
Model NO. SR20MA Compaction Depth 40cm Engine Type Diesel Engine Travel Speed 2.8-9km/H Centrifugal Force 82/40 Certification CE, ISO 9001:2000 Condition New Operating Weight (Kg) 20000 Road Roller Exciting Force (Kn) 380/280 Vibration Frequency (Hz) 29/35 Ground Pressure (Kpa) 200-460 Gradeability (%) 30 Engine Model Wp6 Rated Power/Rated Speed (Kw/Rpm) 129/1800 Wheelbase (mm) 1760 Fuel Tank (L) 300 Compacting Width(mm) 2140 Transport Package Container/RO-RO Specification 6229*2345*3180 mm Trademark SHANTUI Origin China HS Code 8429401900 Production Capacity 100units/MonthProduct Description
SHANTUI Brand Single Drum 20tons Road Roller (SR20MA)Product discription
The proprietary match technology can achieve high operating efficiency and reasonable fuel economy and reduce the composite fuel consumption by 8%~10%.
The core electric and hydraulic parts of imported brands guarantee high quality and reliability and reduce the malfunction downtime.
High value maintenance.
PARAMETER
| Parameter name | SR20MA (Standard version) | SR20MA |
| Performance parameters | ||
| Operating weight (Kg) | 20000 | 20000 |
| Exciting force (KN) | 380/280 | 380/280 |
| Vibration frequency (Hz) | 29/35 | 29/35 |
| Nominal amplitude (mm) | - | 2/1.0 |
| Ground pressure (KPa) | - | - |
| Gradeability (%) | - | 30 |
| Engine | ||
| Engine model | WP6 | SC8D175.2G2B1 |
| Rated power/rated speed (kW/rpm) | 129/1800 | 128/1800 |
| Overall dimensions | ||
| Overall dimensions of machine (mm) | 6229*2345*3180 | 6229*2345*3180 |
| Driving performance | ||
| Forward speed (km/h) | 2.84/5.58/9.1 | F1: 2.84,F2: 5.58,F3: 9.1 |
| Reversing speed (km/h) | 2.84/5.58/9.1 | R1:2.84,R2:5.58,R3:9.1 |
| Chassis System | ||
| Wheelbase (mm) | - | - |
| Tank capacity | ||
| Fuel tank (L) | 300 | 300 |
| Working device | ||
| Compacting width(mm) | 2140 | 2140 |
