• Model NO.：LG6225E
• Certification：CE
• Condition：New
• Power：120kw
• Max. Digging Radius：9940mm
• Max Digging Height：6650mm
• Max Digging Depth：6730mm
• Operating Weight：22000kg
• Attachments：Ripper
• Rated Speed：3.2,5.5km,H
• Warranty：1 Year
• Operating Pressure：35MPa
• Max.Climbing Angle(H)：35°
• Engine：Comins
• Capacity：0.8~1.2m3
• Transport Package：Nude
• Specification：0.36~0.73m3, 0.36~0.73m3
• Trademark：ACNTRUCK
• Origin：China
• Production Capacity：10 Units,Month

Basic Info.

Model NO. LG6225E Certification CE Condition New Power 120kw Max. Digging Radius 9940mm Max Digging Height 6650mm Max Digging Depth 6730mm Operating Weight 22000kg Attachments Ripper Rated Speed 3.2/5.5km/H Warranty 1 Year Operating Pressure 35MPa Max.Climbing Angle(H) 35° Engine Comins Capacity 0.8~1.2m3 Transport Package Nude Specification 0.36~0.73m3, 0.36~0.73m3 Trademark ACNTRUCK Origin China Production Capacity 10 Units/Month

Product Description

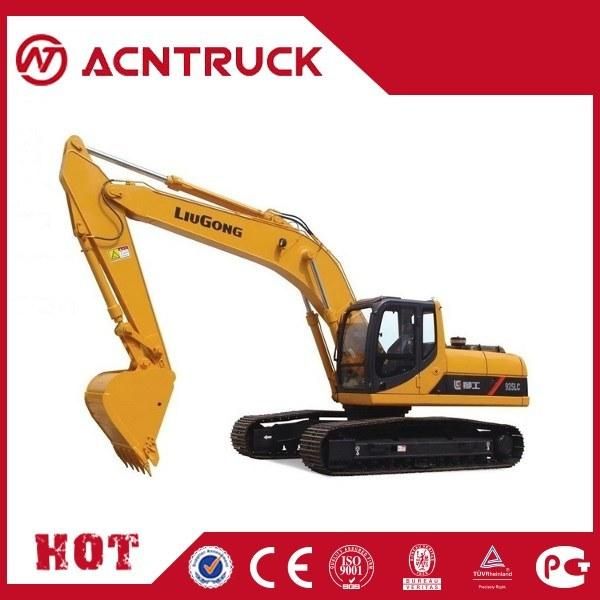

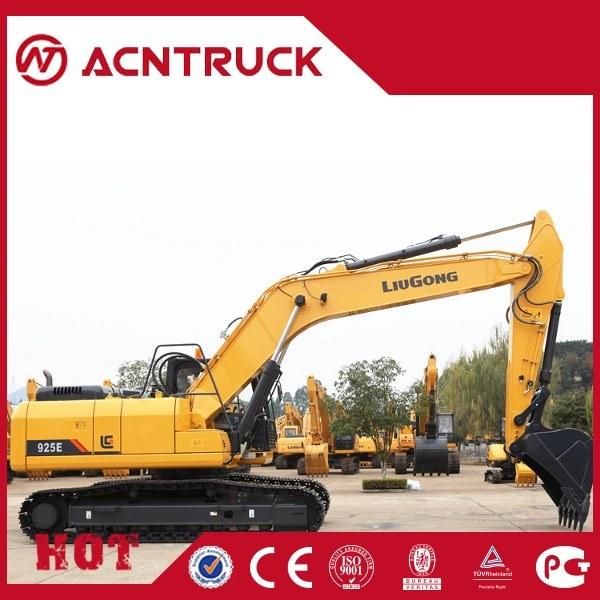

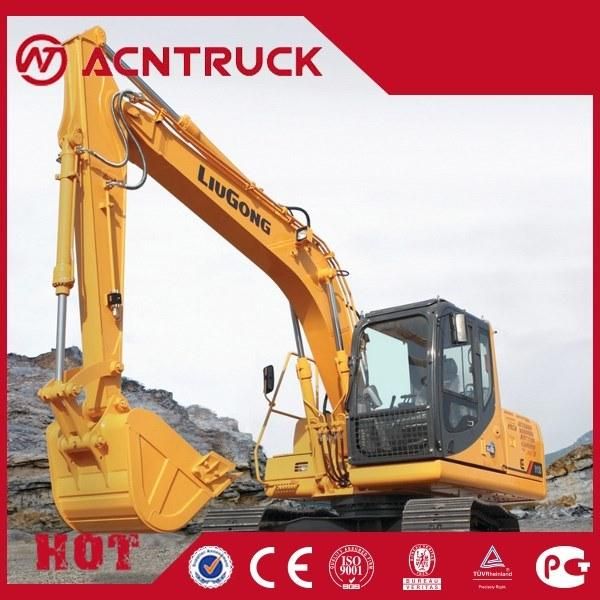

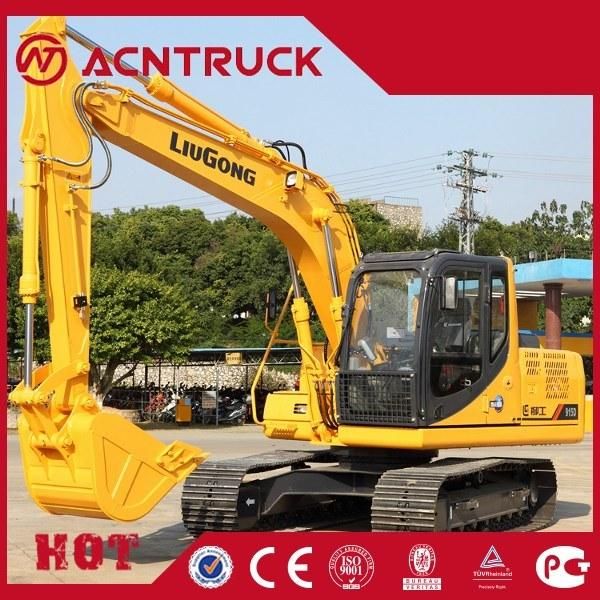

Excavator 22 Tons 1.2cbm SDXG LG6225E

01. 0.8~1.2m3 Bucket Capacity

02. Operating Weight: 21700kg

03. Traceling Speed: 3.2/5.5km/h

04. Engine Rated Power: 120KW

05. Max. Digging Radius: 9940mm



Product Feature:





The LG6225E is the upgraded and updated product developed based on the advanced advanced technology. With high-strength chassis, enhanced reinforced implement, perfectly matched power and hydraulic systems, this product is compatible with a variety of harsh operating conditions.

The non-slip channel and platform offers higher safety.

Applied with the X-type lower frame of the widened chassis, and the reinforced upper frame, offering higher stability and easily qualified for heavy-dutyoperating conditions.

Applied with the double-speed self-switching high-torque traveling motor, which ensures large traction; the wet brake, which offers goodsmoothness and high reliability; the optimized crawler, featuring good lubricating and sealing performance and prolonged service life.

It is equipped with supercharged inter cooling engine of second generation electric governor system EMR2, featured by strong power, economical and environmental protection and high reliability.

Applied with the large-size three-side doors and the split engine hood, which facilitate the inspection, maintenance andrepair.

Wide and bright cab with open vision and good sealing performance, linkage suspension seats, two-stage filtration air conditioner, silicone oil rubber three-stage shock absorber is adopted, which provides good shock absorbing effect and a comfortable driving environment.



2.Product Parameters:



Overall poerating weight	Bucket capacity	Max.excavation force	Swing speed	Traveling speed(low/high)	Length×Width×Height
21700kg	0.8~1.2m³	147.1kN	0-11.6r/min	3.2/5.5km/h	9745×2990×2940mm
Max.digging radius	Max.digging depth	Max.digging height	Engine rated power	Operating pressure	Max.climbing angle(H)
9940mm	6730mm	6650mm	120kW	35MPa	35°
