• Model NO.：LG938
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Small Loader
• Engine Model：Power-Hf 4102 Turbo
• Axle：Awd, Big Hub Reduction Gear
• Steering：3-Layer Articulation Steering
• Attachment：Kinds of Attachments
• Operating Weight：4500kg
• Bucket Width：2000mm
• Max Dumping Height：3500mm
• Max Dumping Distance：700mm
• Turning Radius：4500mm
• Rated Power：76kw
• Gearbox：Automatic 265 Split
• Tyre Size：16,70-20
• Transport Package：Container
• Specification：6000x2050x2950mm
• Trademark：LUGONG
• Origin：China
• HS Code：84295100
• Production Capacity：40000 Sets,Year

Basic Info.

Model NO. LG938 Load and Unload Mode Front Discharge Walking Mode Wheeled Type Small Loader Engine Model Power-Hf 4102 Turbo Axle Awd, Big Hub Reduction Gear Steering 3-Layer Articulation Steering Attachment Kinds of Attachments Operating Weight 4500kg Bucket Width 2000mm Max Dumping Height 3500mm Max Dumping Distance 700mm Turning Radius 4500mm Rated Power 76kw Gearbox Automatic 265 Split Tyre Size 16/70-20 Transport Package Container Specification 6000x2050x2950mm Trademark LUGONG Origin China HS Code 84295100 Production Capacity 40000 Sets/Year

Product Description

New style LUGONG LG938 Huafeng engine turbo loaders with grapple for quarry

The Details and Advantages of LG938
1.Engine
•Famous brand opption:CUMMINS, DEUTZ, YUNNEI;
•Better cost-effective and best cooperation with brands:WEICHAI-HF, YUCHAI,SIDA

  2.Articulaiton
•Three-layer articulation design uniform stress and prevent deformation.
• Extended and widened plate charges in column,more strengthfull.
•Trajectory coincidence technology reduce tire wear and machine load capacity, turning radius is small and more flexible.

3.Axle
•Special patented axle with big hub reduction.
•Speed ratio 7:41, large torque and more power, speed acceleration fast.
•Casting steel, 200kg heavier than other brands. Stronger and more durable.
•Used on light-heahy trucks, high precision and low failure rate.

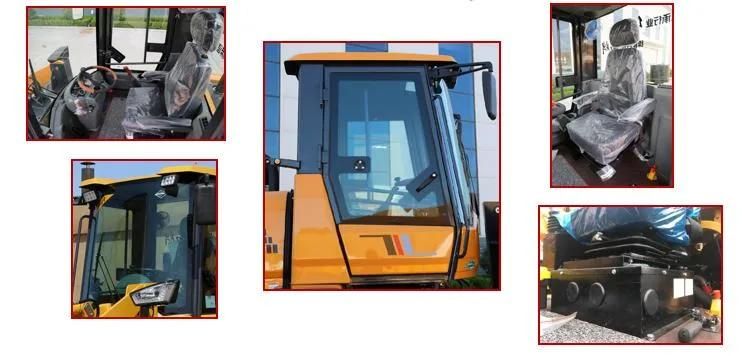

4. Cab
*Exclusively design, welded by high strength rectangular plate. Strong structure provides reliable protection for driver;
*More cab space and curved front windshield bring better driving vision;
*Air-damping luxury aviation seat filled car sponge reduce fatigue of long time driving;
*Optional high quality air conditioner improve driving comfort.

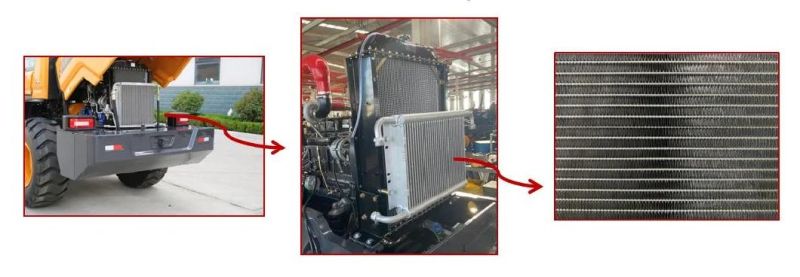

5. Cooling System
*High level water tank, Large hole grid with 32mm double-row radiating pipe increase radiation effect and not be blocked;
*Tank temperature not exceed 80ºC even continuous working 20 hours at surface temperature 50ºC.

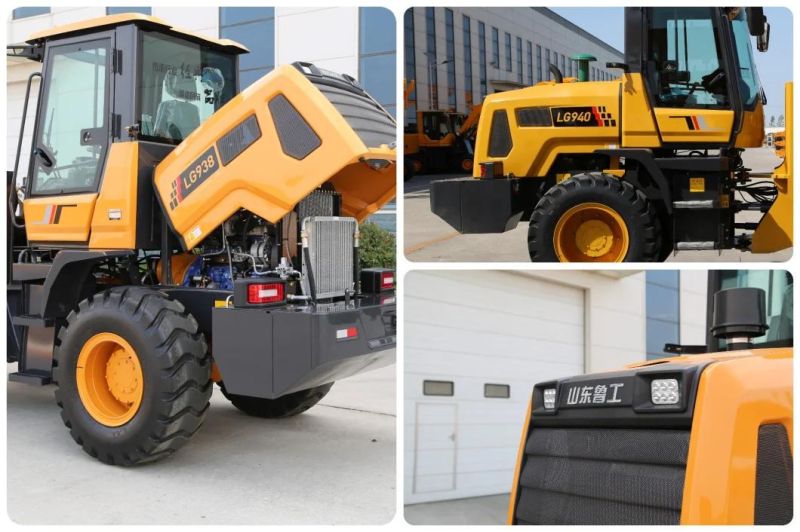

6. Appearance
*Drawing stamping sheet metal gets high structural strength;
*Arc design brings good visual effect;
*Electro-coating ensures excellent anti-corrosion property.

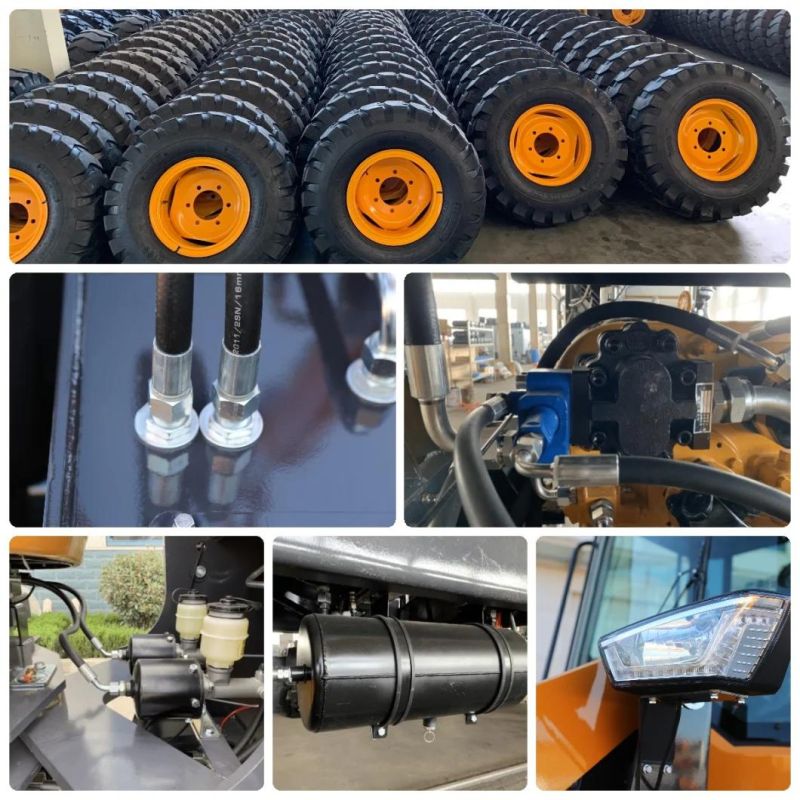

7. More Detail
*Separate design of front and rear brake pumps avoid brake failure;
*Integrated design of pump and valve, cancel flexile hose, increase steering performance and safety;
*H type joint with two sealing ring ensure lifelong no leakage.
*New LED lights bring better brightness and longer life;
*Pickling and phosphating treated oil tank avoid block in hydraulic system;
*Fast joint on air cylinder for blowing dust gun, inflation and grease gun;
*Muffler covered with heat resistant material avoid body scalding and components ageing;
*Shanghai "Steel" brand 18PR Nylon tire.

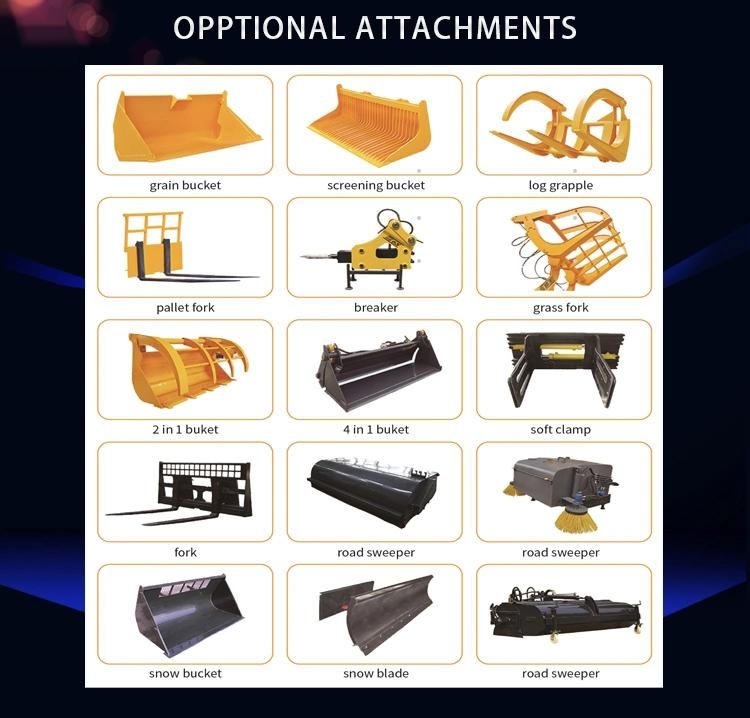

8. Attachments

Basic Specs

Rated Load	2000kgs	Engine Model	Power 4102 Turbo
Standard Bucket	1.0m3	Gross Power	76KW
Operating Weight	4500kgs	Torque Converter	Hydraulic
Max. Dumping Height	3500mm	Transmission Box	CVT AWD 280 Split type
Turning Radius	4500mm	Axle	2.0T Big hub reduction gear
Tyre	16/70-20	Service Brake	Dual Air Hydraulic Disc

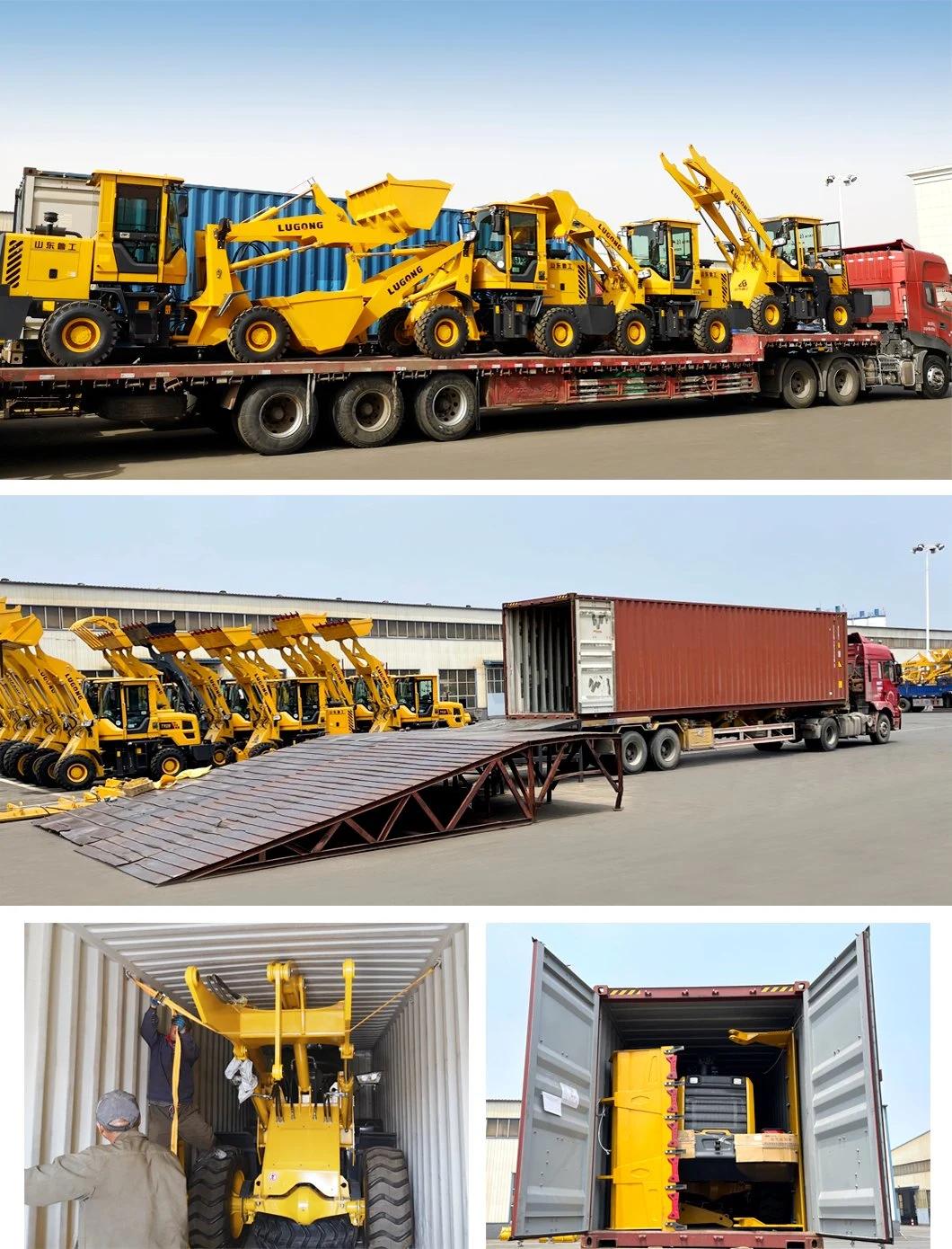

Packing & Delivery

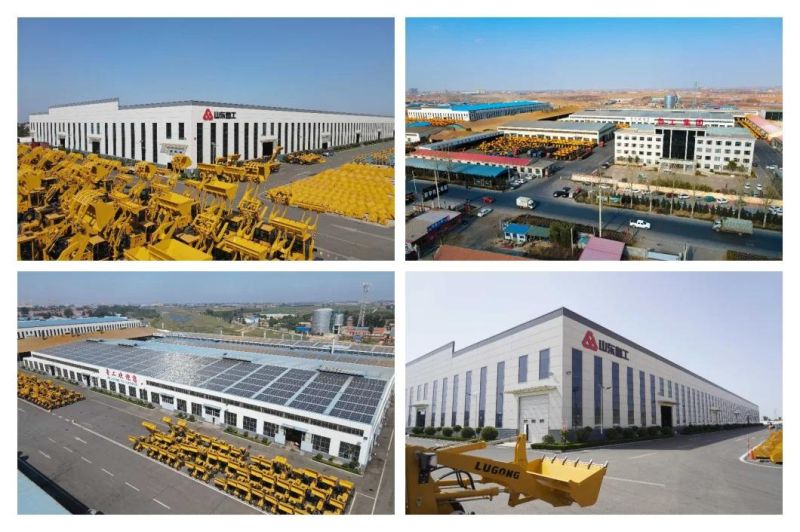

The Company Profile
•Founded in 2000.
•Covers a land of 200,000 square meter.
•1100 employees,88  engineers.
•Compact wheel loaders are in leading position in demestic market.
•40,000 set of machines sold out on average last year
Production Process
Certification
