• Model NO.：HH936
• Rated Speed of Engine (Rpm)：2300
• Maximum Torque of Engine (N.M)：450
• Gears of Gearbox：Four Forward Gears and Two Backward Gears
• Braking Way：Caliper Disc Brake
• Tire Model：17.5-25 12pr
• Pressure of Working System (MPa)：17
• Operation Manner of Working System：Connecting Rod Operation
• Rated Capacity of Bucket (M3)：1.76
• Wheelbase (mm)：2607
• Usage：Universal Type
• Scraper Type：Pull Scraper
• Load and Unload Method：Front Discharge
• Engine Power：74~147kw
• Color：Yellow
• Transport Package：Nude Packing
• Specification：92kw
• Trademark：CHHGC
• Origin：Zhengzhou, China
• HS Code：84295100
• Production Capacity：5000 Units Per Year

Basic Info.

Model NO. HH936 Rated Speed of Engine (Rpm) 2300 Maximum Torque of Engine (N.M) 450 Gears of Gearbox Four Forward Gears and Two Backward Gears Braking Way Caliper Disc Brake Tire Model 17.5-25 12pr Pressure of Working System (MPa) 17 Operation Manner of Working System Connecting Rod Operation Rated Capacity of Bucket (M3) 1.76 Wheelbase (mm) 2607 Usage Universal Type Scraper Type Pull Scraper Load and Unload Method Front Discharge Engine Power 74~147kw Color Yellow Transport Package Nude Packing Specification 92kw Trademark CHHGC Origin Zhengzhou, China HS Code 84295100 Production Capacity 5000 Units Per Year

Product Description

Earth-Moving Machinery Small Articulated Front End Shovel Bucket Wheel Loader


Characteristics

1. This wheel loader is equipped with Yuchai turbocharged engine (China II), has strong horsepower, large torque reserves, save energy, protect environment.

2. YJ315 torque converter of wheel loader (single-stage, single-phase and 3-element) has large torque coefficient (3.23) and high efficiency.

3. The heavy loading drive axle of wheel loader has large load capacity and high reliability.

4. The torque converter of wheel loader is optimized the lifting and loading speeds are largely promoted. The sum time of three items becomes shorter.

5. The wheel loader is flexible, with flexible steering, short wheelbase and small turning radius.

6. According to CAE analysis, the front and rear vehicle frames of wheel loader are optimized, impact resistance is improved and the fatigue life becomes longer

7. The casting-type beam of movable arm of the whole machine, optimized by the postdoctoral workstation of our company, has more reasonable structural design.

8. The modeling of this wheel loader has received national design patent be loved by the majority of users.

9. Wheel loader is equipped with a cab with luxurious interior control components that are designed according to ergonomic principles, providing easy and comfortable operation for the driver.


Specifications


Overall dimension (length x width x height) (mm)	7050×2510×3200
Rated load (kg)	3000
Rated capacity of bucket (m3)	1.70
Weight of complete machine (t)	10.2-10.5
Maximum unloading height (mm)	3215
Unloading distance (mm)	1090
Sum time of three items (s)	≤9.6
Wheelbase (mm)	2607
Wheel track (mm)	1800
Breakout force (kN)	130
Maximum traction (kN)	100
Maximum traveling speed (km/h)	35
Minimum turning radius	4929
Maximum gradeability (°)	25°

Engine model	YC6J125Z-T21
Rated power of engine (kw/hp)	92 /125
Rated speed of engine (rpm)	2300
Maximum torque of engine (N. m)	450
Engine displacement	China II
Model of gearbox	Hangzhou Advance Gearbox BS428
Gears of gearbox	Four forward gears and two backward gears
Model of torque converter	Shantui YJ315
Model of drive axle	Axle produced by Xuzhou Jinggong
Braking way	Caliper disc brake
Tire model	17.5-25 12PR
Pressure of working system (MPa)	17
Operation manner of working system	Flexible axle operation
A/C system	Warm air blower

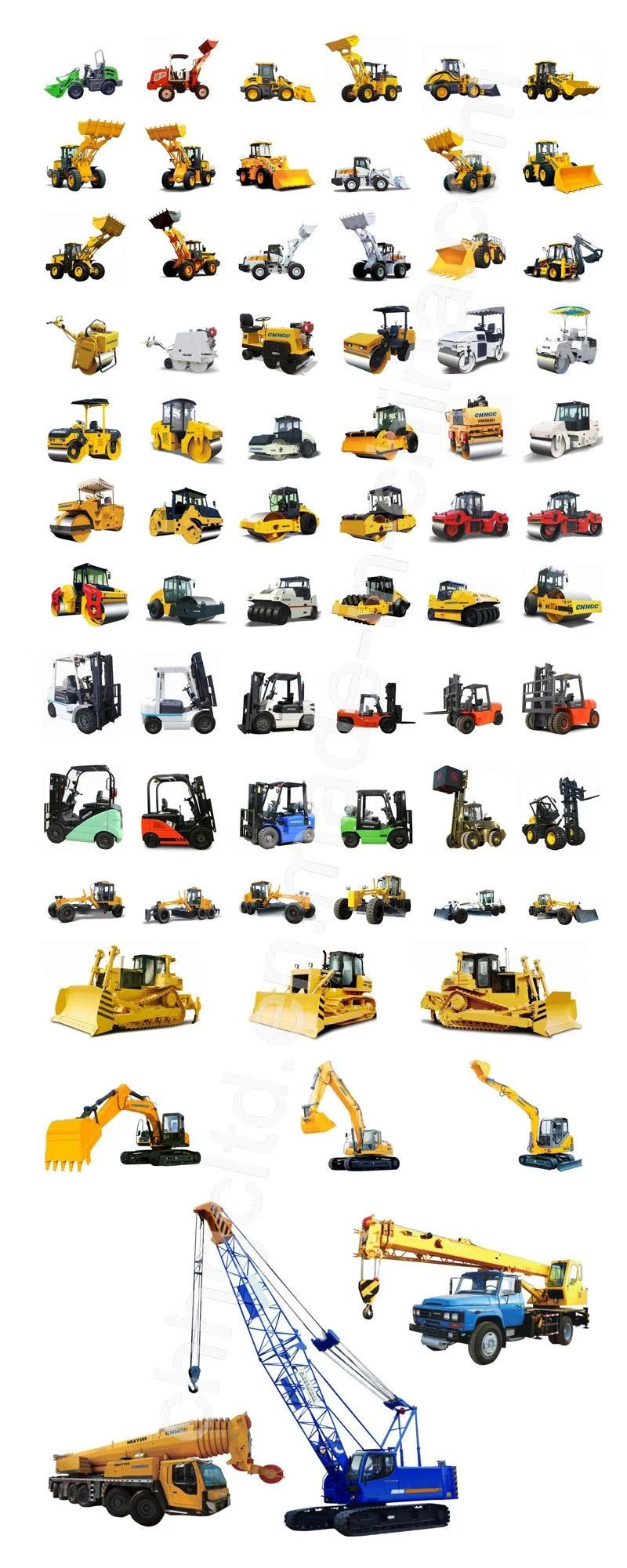

Our Products

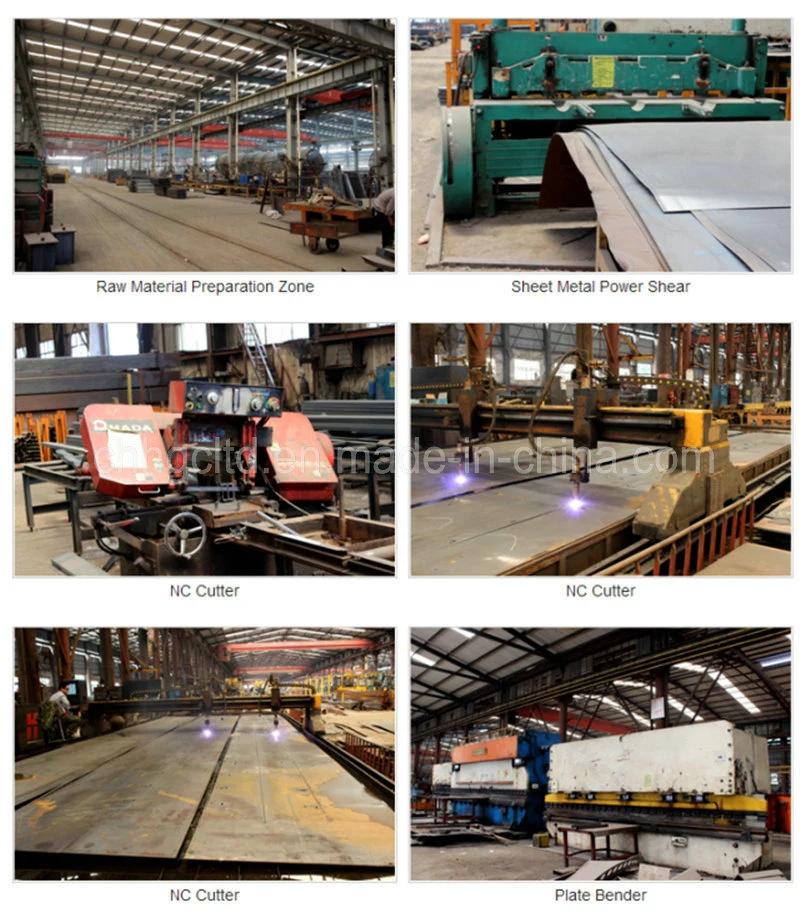

Workshop



Why us?

1)A professional international sales team, which enable us to turn inquiries into final products and export them to numerous countries and regions without barriers;
2) A well managed quality control system to customize on clients requirements. We can design according to customers usage invironment.
3)Unparalleled after sales service


Packaging and Shipping

1. All the wheel loaders will be made anti rust before shipment
2. Different shipping method for different situation, Ro-Ro Vessel, Bulk Vessel, Flat-Rack, Container, etc
3. Shipment tracking service


Our Services

1.Reply your inquiry in 24 working hours.
2.Experienced staffs answer all your questions in professional and fluent English.
3.Customized design is available. OEM is welcome.
4.Exclusive and unique solution can be provided to our customer by well-trained and professional engineers and staffs.
5.Special discount and protection of sales area provided to your distributor.
6.Do the best reliable heavy-duty earth-moving machinery in China.
7.Warranty period is 1-year or 2000 working hours against Bill of Lading.
8.ROPS cab


FAQ

1. How about the products range do you produce ?

We are specilized in producing wheel loaders cover 0.8ton to 5tons. Model: CHHGC608,CHHGC610,CHHGC620,CHHGC630,HH10,ect. producing forklift with 2tons, 3tons, 4tons, 5tons, load capacity.

2. Which brand engine do you have for ?

We company choose good quality engine for , Changchai, Xichai, Weichai Power engine / cummins engine / Deutz diesel engine and so on optional.

3. What advantages of your products and company?

1.)adjusting design are available from us, to adapt the market and using environment better, and help customers gain more competitions in your market.
2.) ROPS cabin, double-layer thick cab, more strong and resistant
3.) adjusting steering wheel and adjusting seat, more comforable drive environment for driver
4.) All of our products passed the strict test before sale to customers
