• Model NO.：PY130
• Walking Mode：Wheeled
• Type：Small Grader
• Min.Ground Clearance of Front Axle：450mm
• Min.Ground Clearance of Rear Axle：410mm
• Wheel Tread：1590mm
• Wheelbase(Front/Tear)：6120mm
• Length of Blade：3350mm
• Wheelbase of Rear Axles：1410mm
• Model：Yn48gbz
• Rated Power：92kw
• Engine Displacement：4.8L
• Transport Package：by Container, Roro, Nube
• Specification：7900*2050*3200mm
• Trademark：Lutong
• Origin：Henan, China
• HS Code：8429209000
• Production Capacity：1000 Units,Year

verall dimensionL×W×H7900×2050×3200mmMin.ground clearance of front axle450mmMin.ground clearance of rear axle410mmWheel tread1590mmWheelbase(front/tear)6120mmLength of blade3350mmWheelbase of rear axles1410mmEngineModelYN48GBZTypeInline,water-cooled,four-stroke,direct injectionRated power92kwEngine displacement4.8LCylinder bore/stroke108mm/132mmMin.fule-consume ratio≤225g/(kw-h)Transmission systemMax.speed(forward/reverse)40km/h 30km/hGearbox typeFixed shaft power stageTorque converterSingle-stage single-phase three-elementGearsFour forward four reverseOverall parametersOverall weight7450kgMax.swing angle of front axle±16°Max.steering angle of front wheel±45°Blade size(length*height*thickness)3350×500×18mmBlade plate diameter1250mmSteering angle of articulated frame±23°Steering angle of blade360°Groud clearance of blade450mmCutting depth of blade260mmInclination angle of bladeForward 47°/backward 5°Sliding range of bladeLeft500mm/right550mmHydraulic systemTypeOpen-type systemSystem pressure16MPaFill capacityFuel105LHydraulic oil75LTransmission systemTire type16/70-24

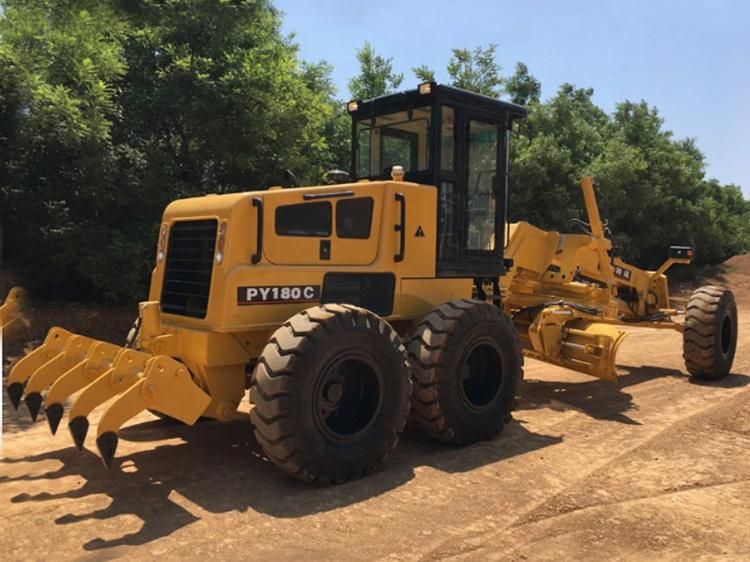

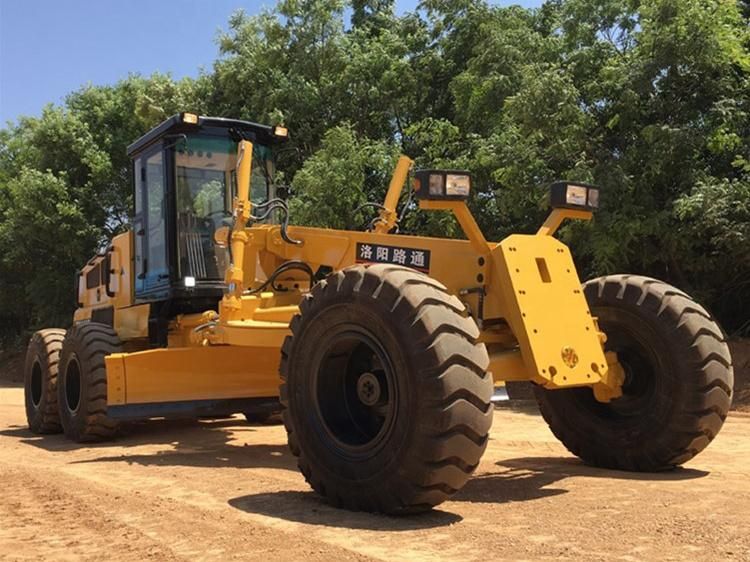

Pic for reference
