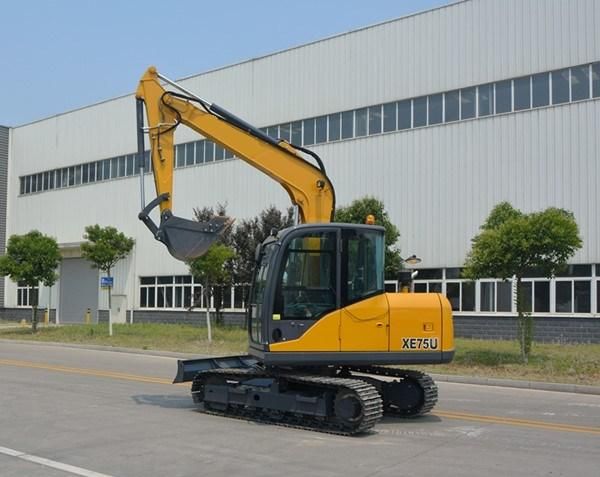

• Model NO.：XE75U
• Size：Small-Scale
• Certification：CE, ISO9001: 2000
• Condition：New
• Operating Weight：7460 Kg
• Swing Speed：10 R,Min
• Fuel Tank：130 L
• Length of Boom：3720 mm
• Max. Digging Depth：4015 mm
• Max.Digging Height：7085 mm
• Transport Package：Nude Package
• Specification：6150*2230*2685 mm
• Origin：China
• Production Capacity：3000

Overview Product DescriptionProduct ParametersSales modelXE75UOperating weight7460Bucket capacity0.18~0.3EngineModelV2607-CR-TIE4BDirect injection√Four strokes√Water cooling√Turbo-charging√No. of cylinders4Rated power45/2200Maximum torque/speed225.8/1400-1800Displacement2.615
Main performanceTravel speed5.4/2.9Swing speed10Gradeability≤35Ground pressure33.5Bucket digging force57Arm digging force38Maximum tractive force68.3Hydraulic
systemRated flow of main pump176Main safety valve pressure26.5Travel system pressure26.5Swing system pressure18.6Pilot system pressure3.5
Oil CapacityFuel tank capacity130Hydraulic tank capacity76Engine oil capacity10
Appearance
sizeOverall length6150Overall width2230Overall height2685Width of platform2070Track length2825Overall width of chassis2200Track width450Wheel base of crawler2195Track gauge1750Counterweight clearance795Min. ground clearance380Min. tail swing radius1800Track height644
Working
scopeMax. digging height7085Max. dumping height5160Max. digging depth4015Maximum depth cut for 2240mm(8 ft) level bottom/Max. vertical wall digging depth2916Max. digging radius6240Min. swing radius1820
Standard Length of boom3720Length of arm1622Bucket capacity0.3
OptionalLength of boom-Length of arm-Bucket capacity0.18(Earthwork bucket)Company Profile
