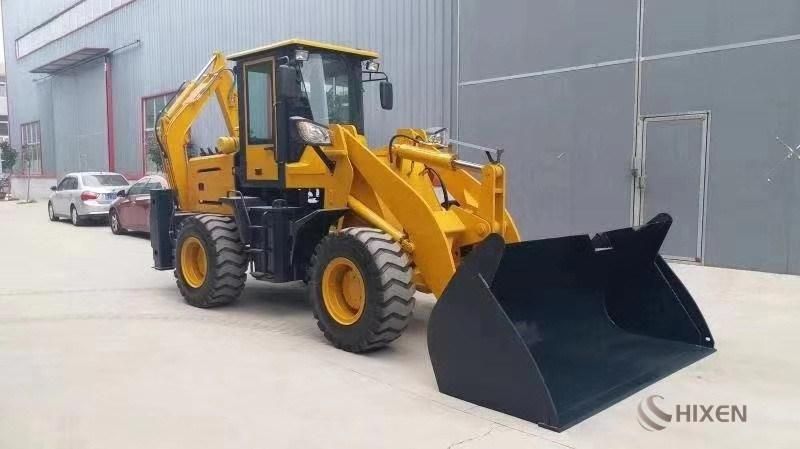

50HP Wz10-20 Mini- Tractopelle Wheel Loader Backhoe Rated Load 1200kg
Shandong Hixen Machinery Co., Ltd.- Certification：CE
- Condition：New
- Rated Load：1.2 T
- Transmission：Hydraulic - Mechanical
- Load and Unload Mode：Front End Loading, Backhoe Excavating
- Walking Mode：Wheeled
Base Info
- Type：Small Loader
- Dimension：5500*1750*2650 mm
- System Pressure：16 MPa
- Maximum Walking Speed：25 Km,H
- Maximum Climbing Gradient：25 Climbing Degree
- Whether to Replace Attachment：Yes
- Digging Bucket Capacity：0.1cbm
- Turning Angle：180°
- Loading Bucket Capacity：0.6 Cbm
- Engine Type：Direct Injection, 4-Stroke
- Engine Rated Power：37kw
- Max. Digging Depth：2000 mm
- Max. Pulling Force：36 Kn
- Max. Digging Radius：2700 mm
- Bucket Dumping Height：2800 mm
- Max. Loading Height：3300 mm
- Transport Package：Full Container, Export Standard Packing
- Specification：3400kg,set
- Trademark：Hixen
- Origin：China
- HS Code：8429590000
- Production Capacity：300sets,Month
Description
20.5-16
3. Main features:
1) Front-end loading and back-end excavating structure, streamline design.
2) Cab is equiped with a fan, and front tilting function for good service maintenance.
3) Brake system with Hydraulically-actuated, wet disc brakes, safe and reliable.
4) High performance diesel engine, powerful and environmental protect.
5) The equipment can be attached with many accessaries to comply different functions.

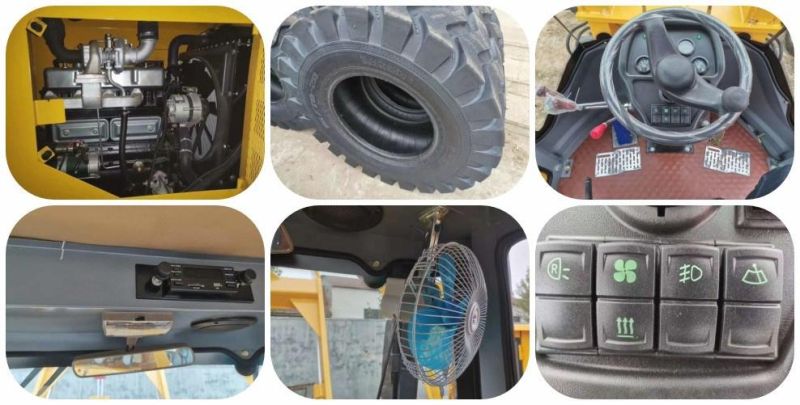

4. Product details

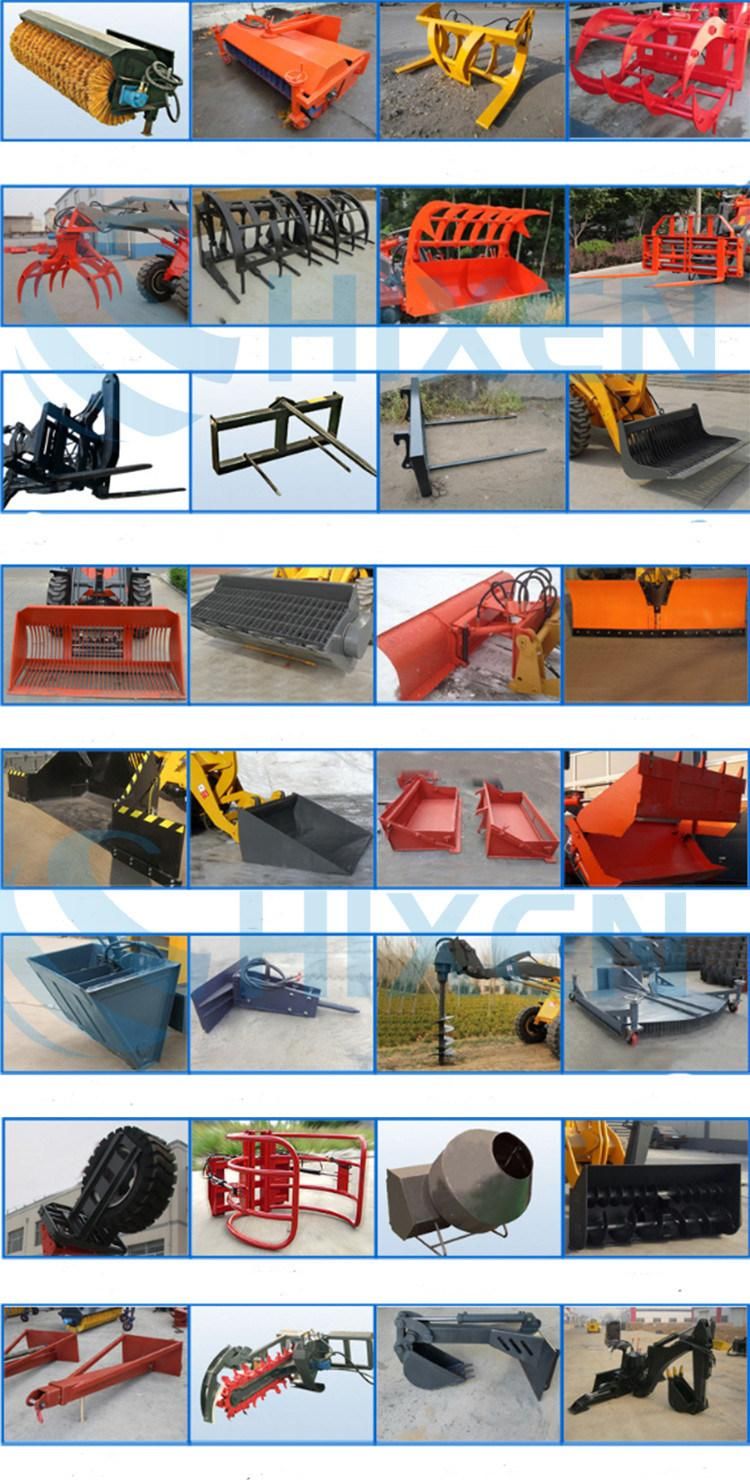

5. Multifunctional Attachments:

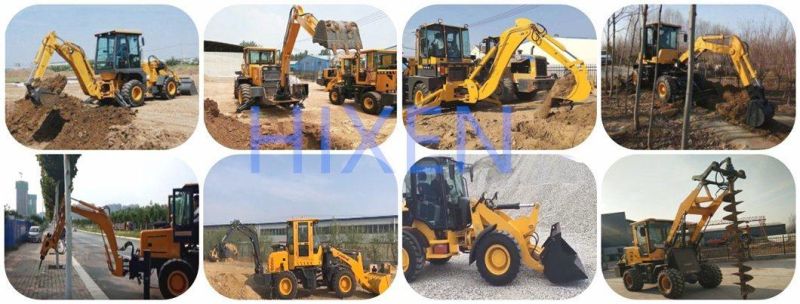

6. Application
The equipment can be attached to many accessaries which is used in municipal, construction, water conservancy, roads, power supply, garden and other departments, can be engaged in agricultural construction, plumbing, cable laying, landscaping, etc.
7. About Hixen
8. Global Marketing
At HIXEN, our priority is to bring you quality, value and choice. Thanks to our years' technology and innovation, the products have been exported to numerous places all over the world which has earned large reputation and enjoyed great population. With these years' exporting experience, we apply different design and technology to different working environment according to every client's specific requirement.
Now our marketing area has covered South and North American countries, Middle east areas, African countries, Europen countries, the east and south Asian countries etc.
9. Packaging&Delivery
1) For land transportation, we usually adopt the nude packing, fastening the equipment to the truck;
2) For sea transportation, we adopt the export standard packing, disassembly the cabin and then fastened inside the container;
3) For the specific moistureproof purpose, we also wrap the equipment by plastic paper or wooden box.
10. FAQ
Q1.What is the delivery period?
After receiving the initial payment, the goods will be ready for delivery within 5 days.The rest time depends on the distance and transport method which need to be negotiated.
Q2.What is the payment terms can you accept?
30% initial payment, 70% balance payment when the goods are ready for delivery by T/T.
Q3.How long is the product guarantee?
We provide one year quality guarantee.
Q4.What kind of service could you provide?
1) Pre-sale service:We could assist you finding the suitable equipment according to your requirement.
2) On-sale service:We strictly follow the commercial rules, contract signing, following the production process, controlling the goods quality, tracking the goods delivery, guaranteeing you receive the qualified goods safely.
3) After-sale service:We provide some consumables with the equipment;
We have operation manual for instructing the basic installation and operation;Video guidance for trouble shooting;Engineers ready for field maintenance and repairing when necessary.
Q5.Can we have the special order like specification change, logo making?
Yes, we accept the customization.We can make it clear in the contract and then our technical start design and production as per your requirement.
For more questions, please feel free to contact us.
We sincerely welcome all friends paying visits to us and reach a mutural success.
