• Model NO.：RG203xsj
• Operating Weight：20000kg
• Static Linear Pressure：470n,Cm
• Vibration Frequency：28,33Hz
• Exciting Force：353,245kn
• Engine Model：Diesel Engine Sc8d175.2g2b1
• Max. Power：128@1800r,Min
• Transport Package：Comply with Export Packaging Requirements
• Specification：6220*2300*3200mm
• Trademark：Raygoo
• Origin：Xuzhou, Jiangsu, China
• HS Code：84294019
• Production Capacity：5000

Basic Info.

Model NO. RG203xsj Operating Weight 20000kg Static Linear Pressure 470n/Cm Vibration Frequency 28/33Hz Exciting Force 353/245kn Engine Model Diesel Engine Sc8d175.2g2b1 Max. Power 128@1800r/Min Transport Package Comply with Export Packaging Requirements Specification 6220*2300*3200mm Trademark Raygoo Origin Xuzhou, Jiangsu, China HS Code 84294019 Production Capacity 5000

Product Description

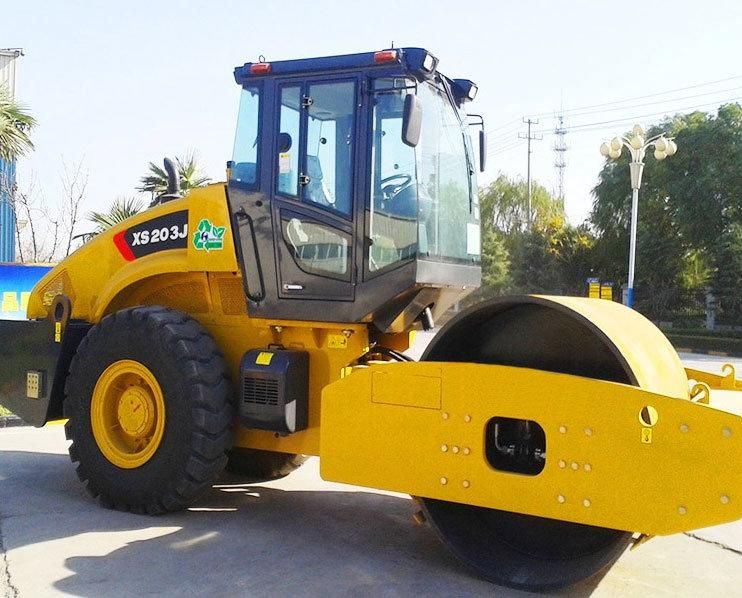

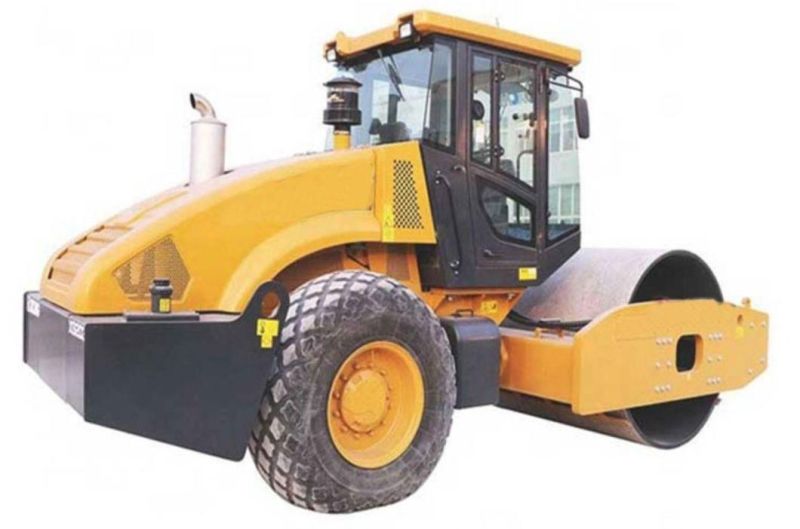

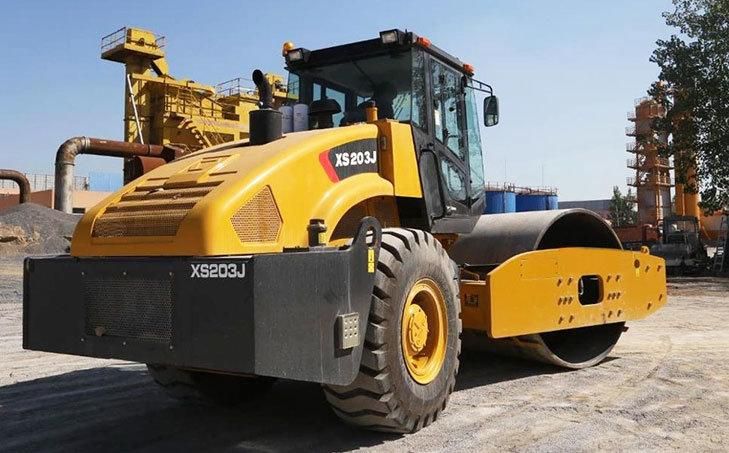

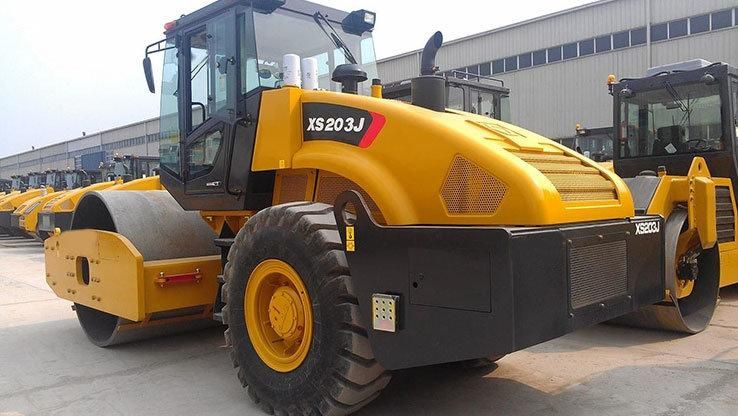

RG163XSJ roller Compactor 16 Ton Hydraulic Single Drum Vibratory Road Roller

This roller has a very high static line load and exciting force and is suitable to the compaction operation of pebbles, sandy soils, moraine soil, blasting rock and clayey soil, etc. and it is also suitable to the compaction of concrete and stabilized soil base materials in various large projects;

1. Specification:

Model	Unit	XS203J
Operating weight	kg	20000
Load applied on front drum	kg	10000
Static linear pressure	N/cm	470
Speed range	km/h
Gear I		2.95
Gear II		5.78
Gear III		9.4
Theoretical gradeability	%	30
Min. external turning radius	mm	6500
Steering angle	°	±30
Oscillating angle	°	±11
Vibration frequency	Hz	33/28
Nominal amplitude (high/low)	mm	1.9/0.95
Exciting force (high/low amplitude)	kN	353/245
Drum width	mm	2130
Drum Diemeter	mm	1600
Engine model		Diesel Engine SC8D175.2G2B1
Max. power	kW	128@1800r/min
Engine oil consumption	g/kW.h	205
Hydraulic oil tank capacity	L	170
Fuel tank capacity	L	310

2. Working on Earth and stone construction projects

(1) Municipal construction,
(2) highway bridges,
(3) housing construction,
(4) road engineering,
(5) farmland water conservancy construction,
(6) port construction
..............

3. Features advantage:

(1) Streamline Design make the machine novel and visually attractive in appearance.
(2) Excellent Powertrain supplies stable power transmission. The power system of XS202J can play an optimal traction performance in any cases.
(3) Outstanding Compaction Imported heavy-duty piston pumps and motors form a closed circuit to provide enhanced durability and reliability, ensuring uniform compaction, to make its outstanding compaction result and great productivity.
(4) Reliable Electrical System has high start-up current and good adaptability.
(5) High Reliability

4. Advantages for our road roller:

(1) Power drive flexible suspension damping;
(2) Dual-pump combined technology, flow expanding steering, guide control;
(3) The frame of the high strength adapts to the heavy load condition;
(4) Working mechanism lightens the unloading impact greatly;
(5) Hydraulic wet brake ensures the safe and reliable operation and travelling;
(6) The adjustable instrument panel contributes to the best operation position;
(7) Intelligent electronic monitoring system could monitor the operation condition of the machine accurately.

(8) Convenient maintenance
With integrated oil filling, the service person could access to the maintenance point from the ground, featuring higher efficiency.
The side plates of the shield and rear shield are opened easily, and it is convenient to check the engine and parts, and daily maintenance.
