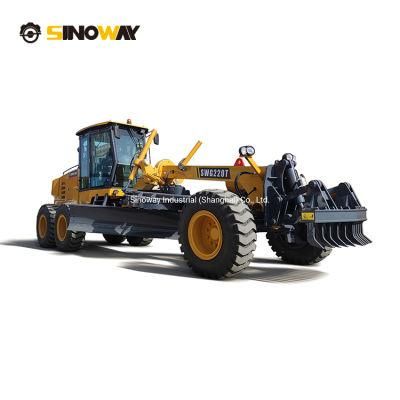

• Model NO.：SWG220T
• Engine Power：220 HP
• Blade Width：4000 mm
• Blade Cycling：360 Degree
• Operqting Weight：15500kg
• Engine Make：Sdec
• Warranty：12 Months
• Brand：Sinoway
• Color：Customized
• Transport Package：Nude
• Specification：ISO9001
• Trademark：SINOWAY
• Origin：China
• HS Code：84314900
• Production Capacity：2000 PCS Per Year

EngineModelCAT licensed C6121TypeDirect injection, turbocharged, water cooledRated power162KWRated speed2200rpmRated fuel consumption230g/Kw. hTransmission SystemType3 elements, single stage(ZF licensed)Torque ratio1.94Cooling typeOil cooling, pressure circulationGearbox typePower shift(ZF licensed)Gear shifts( Forward/reverse)F6/R3Traveling speed(km/h) Forward/Reverse I6.8/6.8Forward/Reverse II10.3/15.3Forward/Reverse III15.3/32Forward IV22.7Forward V32Forward VI47AxleDrive typeFour wheel drive(6X4)Front axle ground clearance610 mmFront wheel lean32°(L/R)Oscillation±15°Drive axleImported No SPIN differentialSteering SystemFront wheel steering angle49°(L/R)Turning radius10.4m(non leant wheel) 10.9m(leant wheel)Articulated steering angle26°(L/R)Drive typeDual action cylinderWorking EquipmentControl systemHydrostatic drive systemHydraulic pumpHigh pressure gear pumpControl valveHUSCOControl pressure18MPaHydraulic oil cylinderHYUNDAIMax. tractive force85KNGround penetration535 mmBlade width4320 mmBlade cycling360°Max. bank cutting angle90°(L/R)Braking SystemService brakeHydraulic assisted and inner-expanding brakeParking brakeMechanical and inner-expanding brakeDimensionsOverall length8990 mmOverall width(wheel outside)2600 mmOverall height3370 mmWheel base6100 mmFront tread2120 mmRear tread2120 mmTyre size17.5-25Service CapacitiesFuel tank350LEngine crank case27LHydraulic tank70LGear box45LRear axles18LBalance box42L(each)Worm gear case3LTandem DriveTypeSwing type with roller chain transmissionSpeed ratio18.03
