• Model NO.：GYL-31
• Condition：New
• Color：Orange
• Engine Type：Yanmar
• Power Kw(HP)：57.3kw,2400rpm
• Weight Kgs(Lbs)：8200kgs
• Dimension(L*W*H)：5200×4350×3700mm
• Boom Reach：6m
• Head Size：5.6
• Fuel Tank Volume：150L
• Warrenty：1 Year
• Laser Generator：Topcon
• Laser Receiver：Topcon
• Transport Package：in Steel Frame
• Trademark：geyo
• Origin：China
• HS Code：8479102100
• Production Capacity：100PCS,Year

Basic Info.

Model NO. GYL-31 Condition New Color Orange Engine Type Yanmar Power Kw(HP) 57.3kw/2400rpm Weight Kgs(Lbs) 8200kgs Dimension(L*W*H) 5200×4350×3700mm Boom Reach 6m Head Size 5.6 Fuel Tank Volume 150L Warrenty 1 Year Laser Generator Topcon Laser Receiver Topcon Transport Package in Steel Frame Trademark geyo Origin China HS Code 8479102100 Production Capacity 100PCS/Year

Product Description

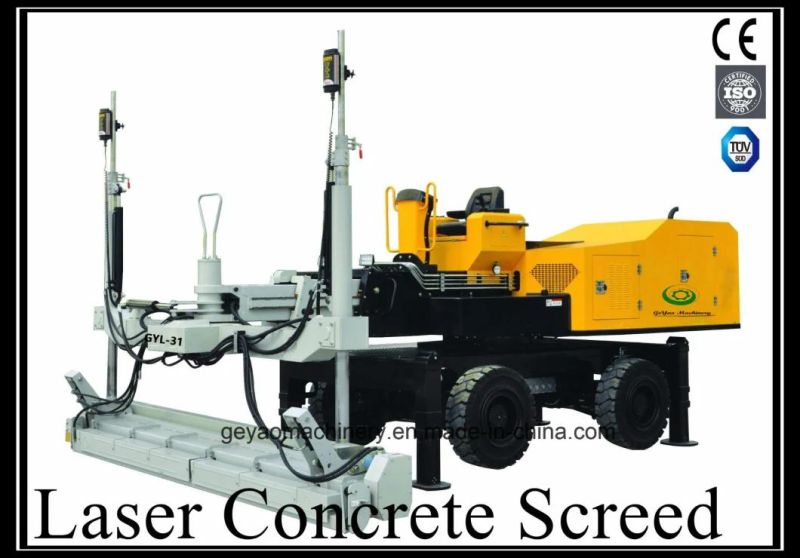

Super good Imported main parts confirguation laser concrete screed GYL-31


The Laser Screed is used in large area concrete construction, such as the modern industrial workshop, the large market, storage, airport, the plaza, and so on. The Laser Screed can satisfy the construction requirements of large area and high planeness and levelness.

Specification:

Model	GYL-31
Type	Boom type
Engine
Model	Yanmar 4TNV98T-ZNLYS
Type	Diesel Engine, Liquid cooled, 4 stroke, 4 cylinder
Power	57.3kW/2400rpm
Engine oil volume	10.2L
Fuel consumption	252g/kwh
Running device
Driving	4 Hydraulic drive motor
Wheel	Antiskid tyre
Steering	Front Wheel/ 4-Wheel/ Crab-shaped turn
Outrigger	4 legs, Self-leveling
Working Speed	0-8km/h
Driving Speed	22m²/min
Screed head
Type	Self-leveling
Arm Length	6000mm
Width	3850mm
Paving type	With auger
Auger force	Hydraulic motor
Exciting force	2000N
Vibration frequency	60Hz
Swing Angle	±45°
Screed head control	Ratio control
Height of screed head	560mm
Control accuracy	±1.5mm
Laser control system
Control type	Microcomputer laser scan
Control effect	Flat, slope or double slope
Operation mode
Chair position	Ride-on forward type
Forward and reverse	Handle control, stepless speed walking
Telescopic arm	Handle control, stepless speed
Steering	Hydraulic intelligent control
Cleaning system
Power	Hydraulic motor
Theoretical flow	20L/min
The Max pressure of inlet	0.5Mpa
Rated pressure	7MPa
Fuel tank volume	150L
Hydraulic oil volume	150L
Size and Weight
Outline dimension	5200×4350×3700mm
Weight	8200kg

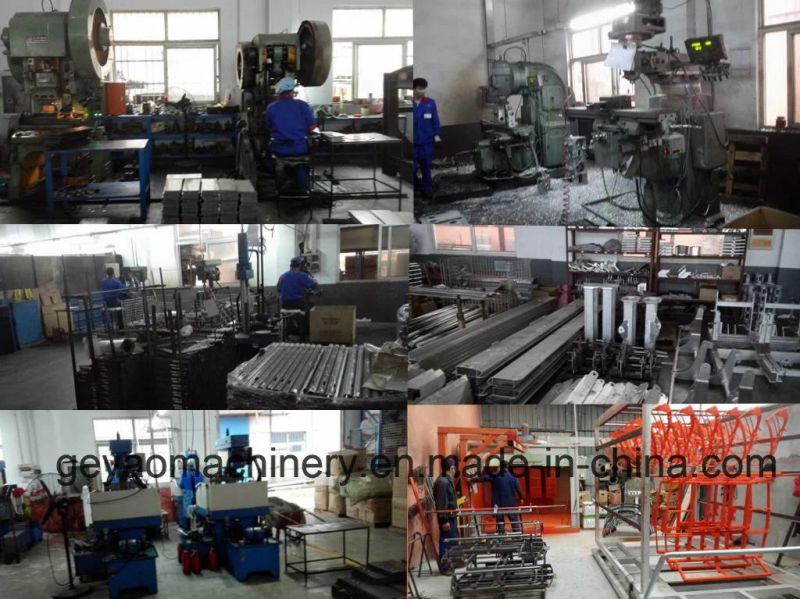

MACHINERY OPERATION PROCESSING

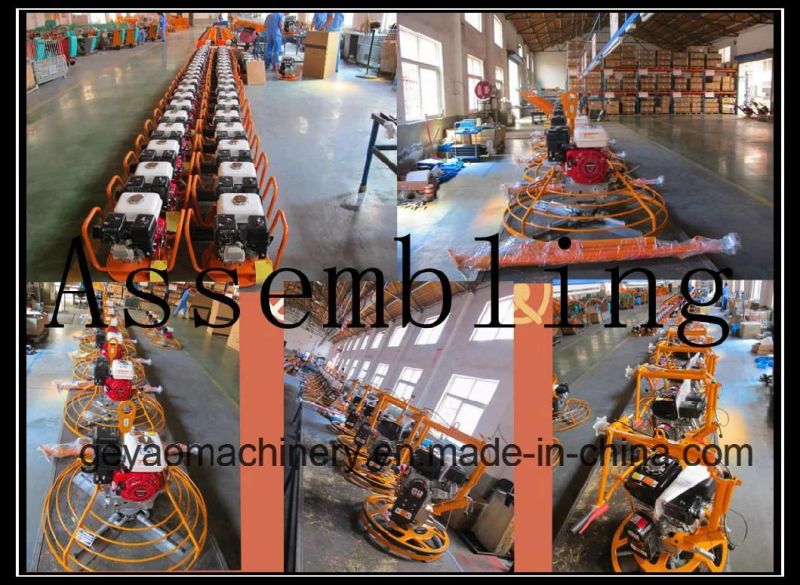

ASSEMBLING

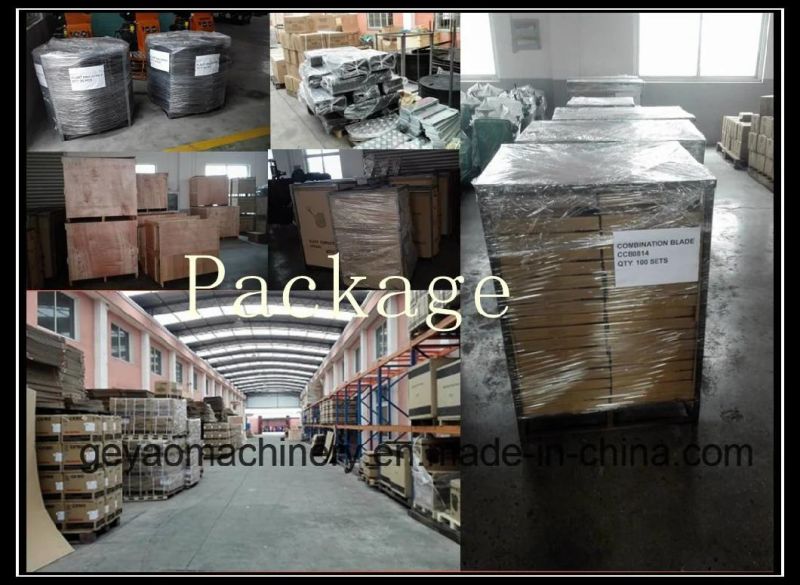

PACKAGE

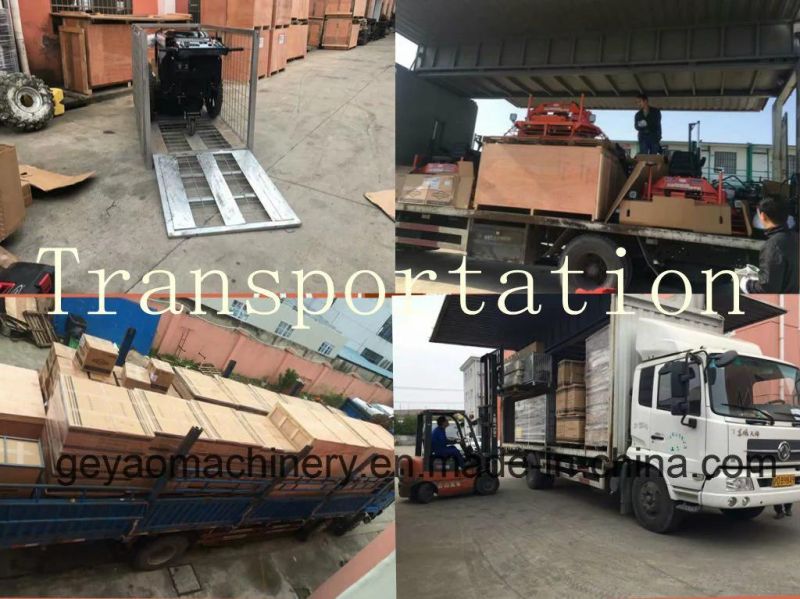

TRANSPORTATION

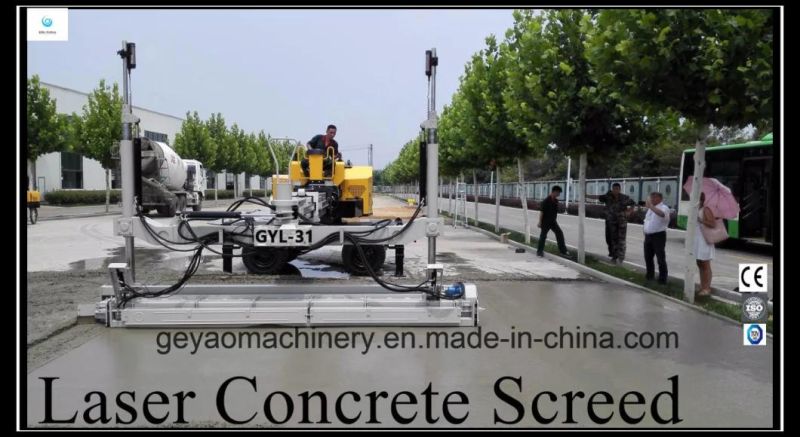

PERFORMANCE
