• Model NO.：L938
• Type：Small Loader
• OEM：Available
• Opertating Weight：4950kg
• Bucket Capacity：1cbm
• Tire Size：16,70-20
• Transport Package：Nude Cargo
• Specification：5900*2050*2950mm
• Trademark：LuGong
• Origin：China
• HS Code：8429510000
• Production Capacity：40000

Basic Info.

Model NO. L938 Type Small Loader OEM Available Opertating Weight 4950kg Bucket Capacity 1cbm Tire Size 16/70-20 Transport Package Nude Cargo Specification 5900*2050*2950mm Trademark LuGong Origin China HS Code 8429510000 Production Capacity 40000

Product Description

Chinese brand Lugong Strong Durable Small Mini Wheel Loader L938 with CE Certificate

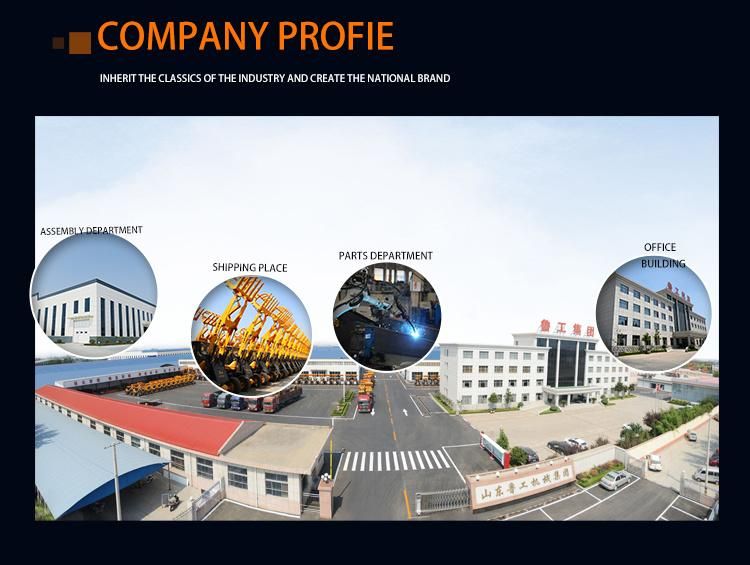

   Shandong Lugong Machinery CO.,Ltd was founded in 2000.which is located at Yantai Shandong City.It's the backbone enterprise of construction machinery national wide with fixed asset 500 million Yuan.It covers a land of 200 thousand square meter and 1100 employees,88 of whom are engineers and technicians.
Our company mainly produces wheel loaders.Products are mainly sold to over to 20 provinces in China and exported to dozens of countries and regions in Africa,South Asia,South America and Russia.The quality and performance of our small farm-use loaders and construction trippers are in leading position of the industry throughout the nation and well received by users.

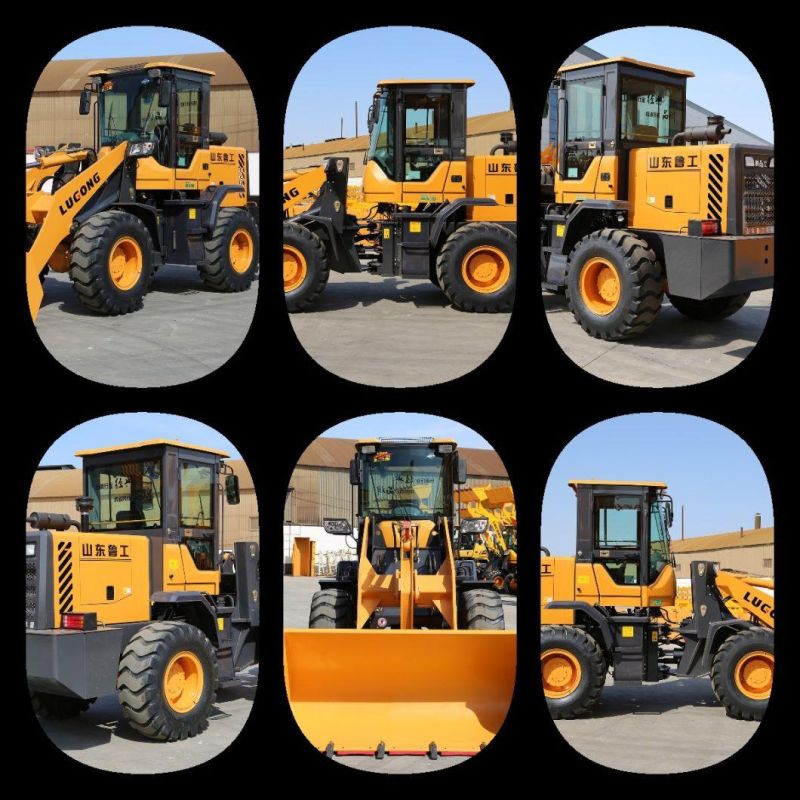

Product Pictures




The Parameters of L series


	L920	L928	L930	L938	L928 low shed	L930 low shed
bucket capacity	0.60m³	0.80m³	0.90m³	1.0m³	0.80m³	0.90m³
rated load	1500kg	1600kg	1800kg	2200kg	1800kg	1800kg
operating weight	2700kg	3200kg	3350kg	4950kg	3400kg	3500kg
overall dimension	4960X1700X2700mm	5460X1700X2800mm	5460X1900X2800mm	5900X2050X2950mm	5460X1700X2250mm	5460X1900X2250mm
bucket width	1700mm	1700mm	1900mm	2000mm	1800mm	1900mm
Max. dumping height	2900mm	3200mm	3200mm	3500mm	3000mm	3000mm
Max. dumping distance	740mm	700mm	700mm	750mm	700mm	700mm
turning radius	4500mm	4500mm	4500mm	4750mm	4500mm	4500mm
Engine Model	Sida490	Sida490	Huafeng 4102	sida 4102 turbo	Sida490	Sida493 turbo
rated power	42KW	42KW	65KW	76KW	42KW	58KW
type	hydraulic torque converter	hydraulic torque converter	hydraulic torque converter	hydraulic torque converter	hydraulic torque converter	hydraulic torque converter
gearbox pattern	automatic 265	automatic 265 split	automatic 265 split	automatic 265 split	automatic 265	automatic 265
axle	AWD, Isuzu	AWD, Isuzu	AWD, small hub reduction	AWD, medium hub reduction	AWD, Isuzu	AWD, small hub reduction
tyre size	8.25-16	20.5-16	20.5-16	16/70-20	20.5-16	20.5-16

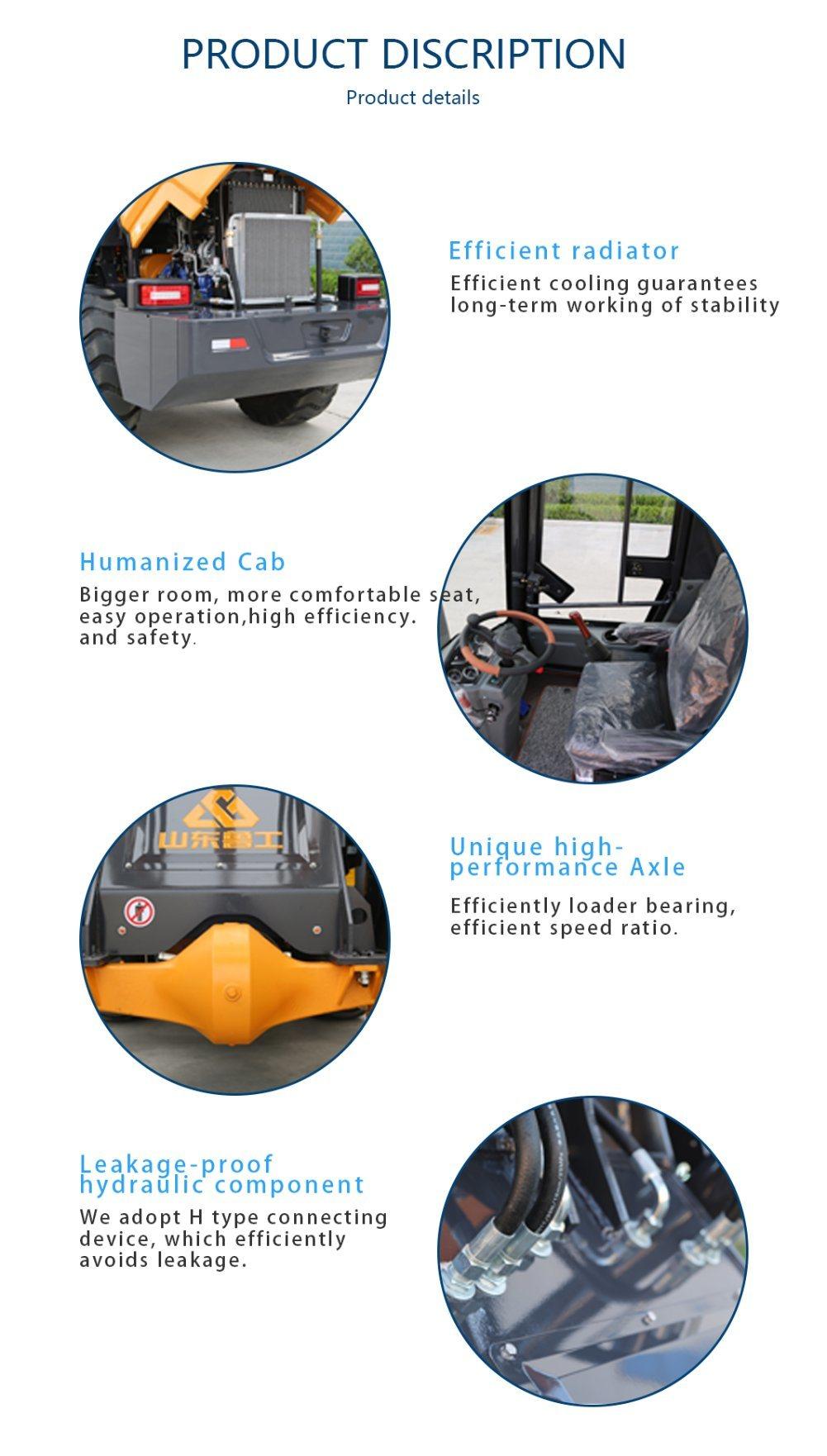

The Product Advantages

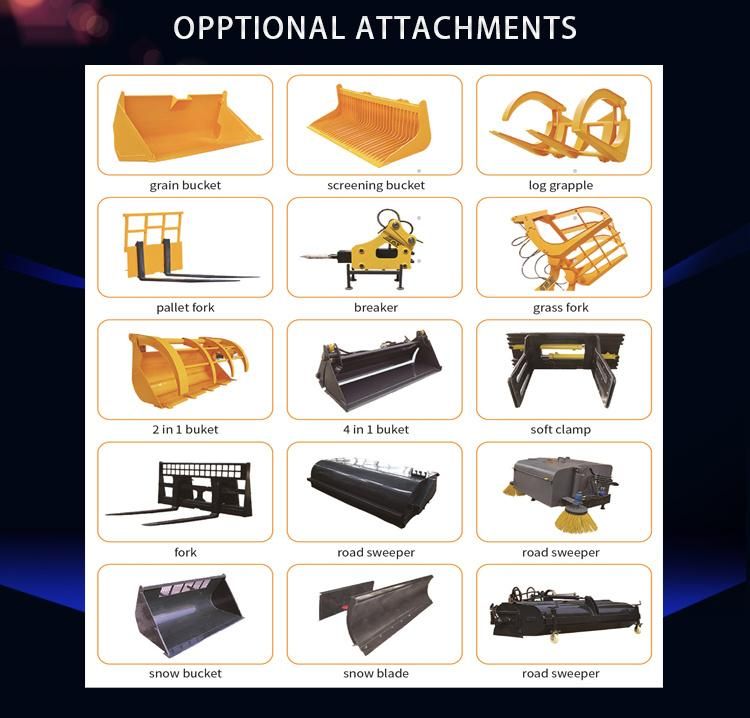

Attachments



The Basic Qualification

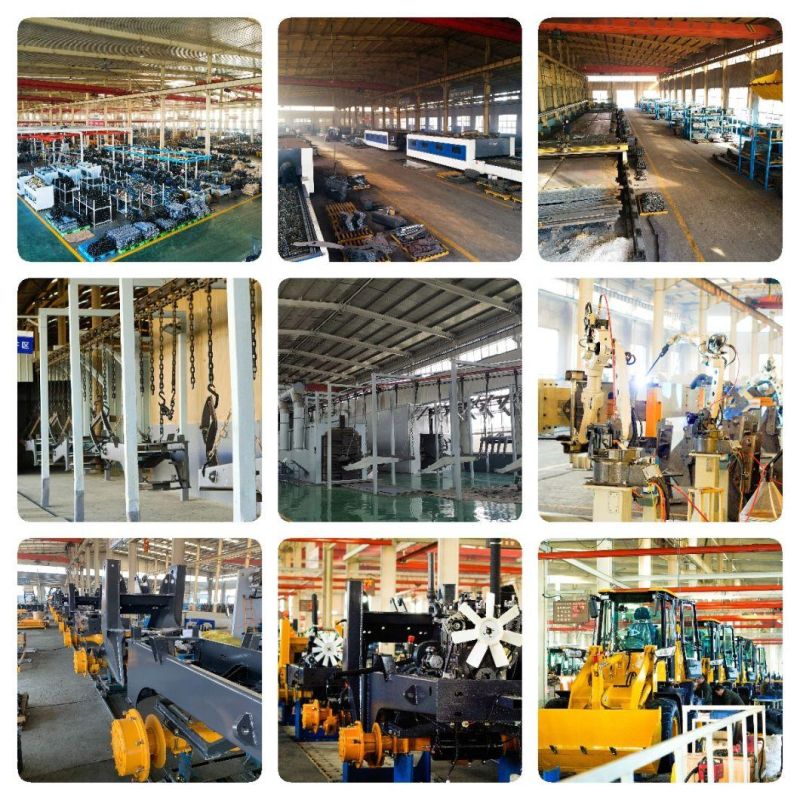

Production Line

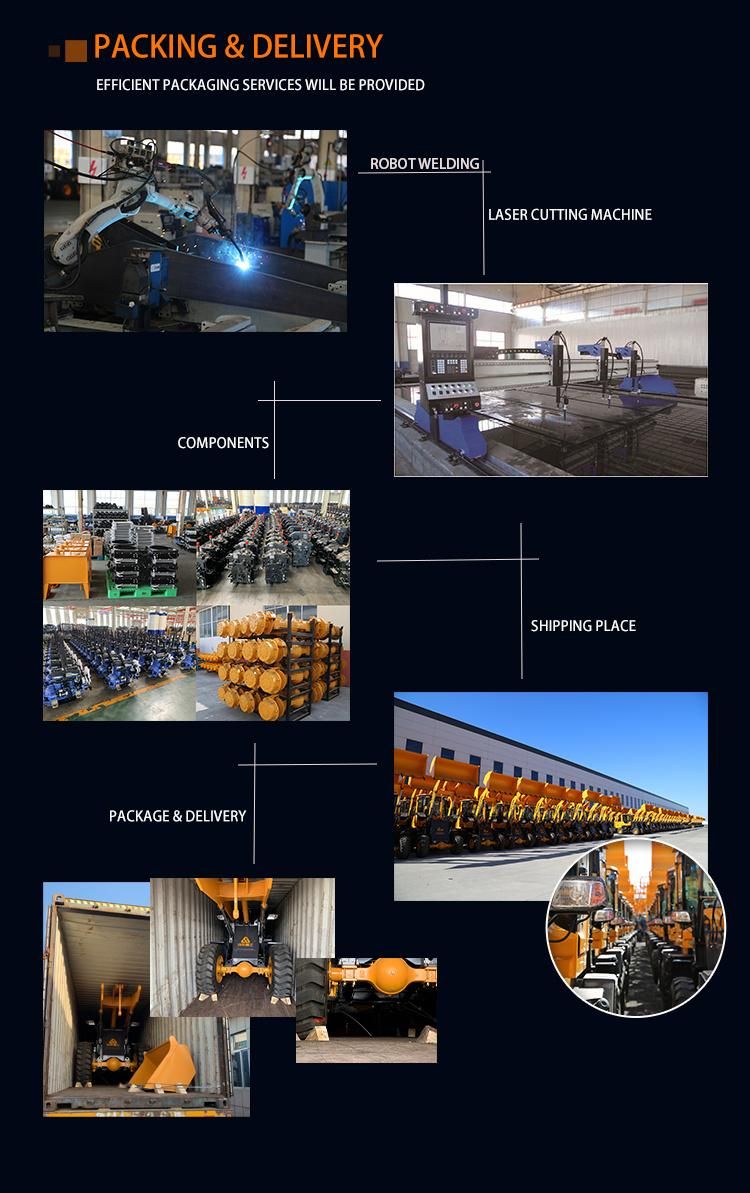

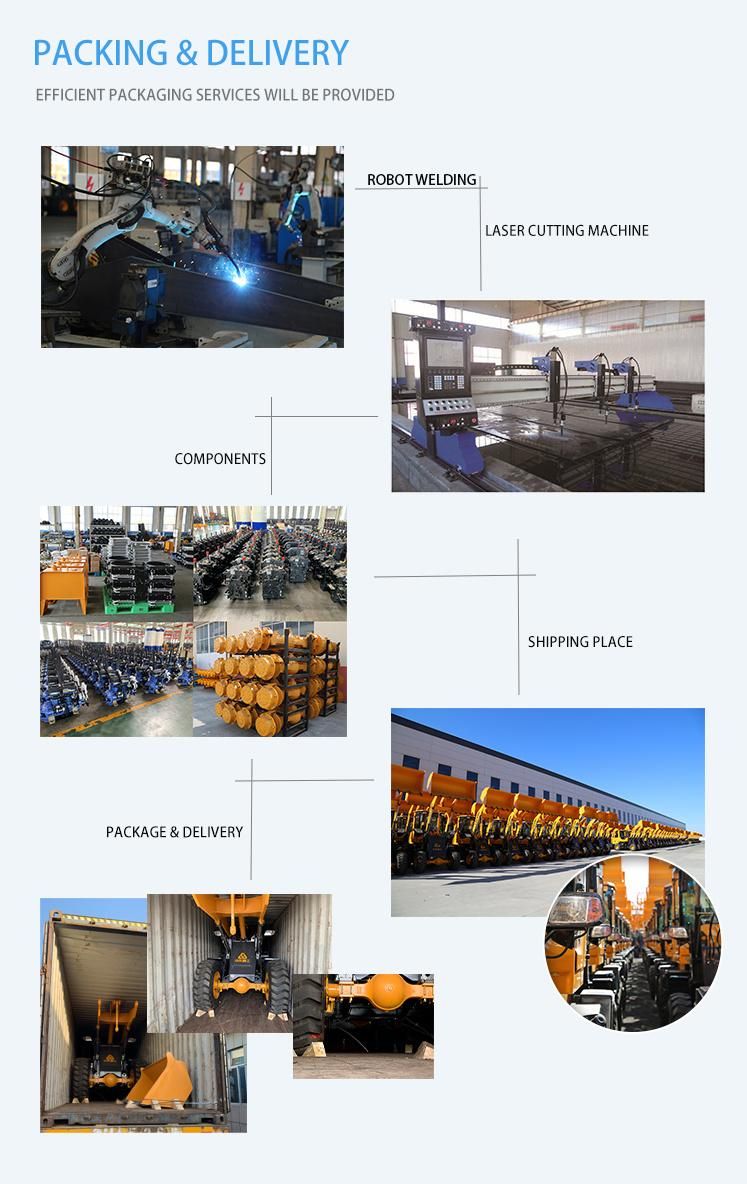

Packing & Delivery
