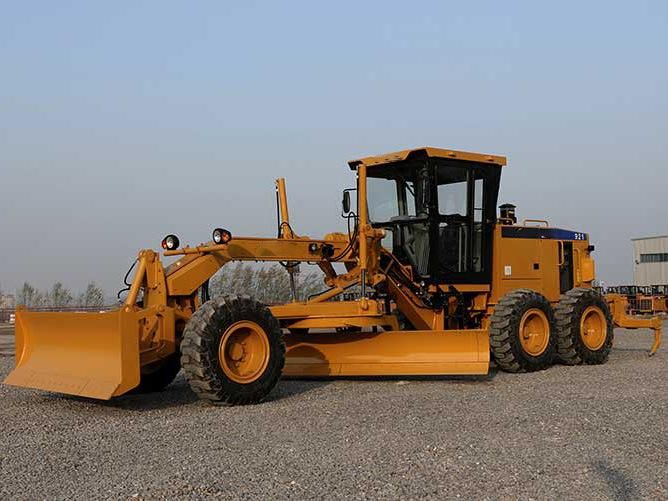

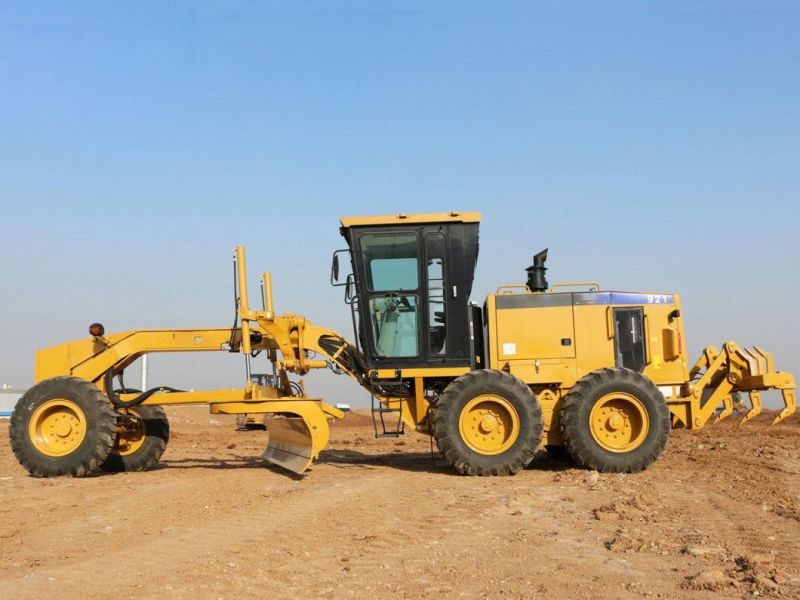

• Model NO.：SEM921
• Walking Mode：Wheeled
• Type：Medium-sized Grader
• Engine：Sc8d220g2
• Transport Package：Nude
• Specification：9315*2600*3400 mm
• Trademark：SINOMADA
• Origin：China
• Production Capacity：100 Sets Per Month

High productivity: load sensing hydraulic system provides consistent and precise blade movement.

High reliability: A-shaped traction frame provides strength in all blade positions.

Comfort:  layout of world-class controls with light leverage gives the possibility to reduce operator fatigue.

• Operating characteristicMaximum traction forceкН≥85Maximum altitude of liftingmm475Maximum cutting depthmm715Slewing capability of frame knee joint°20TransmissionTransmission type Intermediate shaft, switching under loadNumber of gears forward / reverse 6 forward, 3 backwardTransmission model Hangchi 6WG180Speed 1 (front, rear)km/h5.3/5.3Speed 2 (front, rear)km/h9.1/12Speed 3 (front, rear)km/h12.0/25.0Speed  4 (front)km/h20.0Speed 5 (front)km/h25.0Speed 6 (front)km/h39.0AxleAxle model Meritor 18MRH-X240Pivot angle of front axle°15Pivot angle of rear axle°25Maximum pivot angle°± 16EngineModel SDEC SC8D220G2Engine power ratingkW162Nominal speed of rotatingr.p.m2 200Volumel8.82Hydraulic system of work equipmentHydraulic system type of work equipment Load sensitive hydraulic systemSystem pressureMPa22Hydraulic timing cycle:Blade lift of left sides2.42Blade lowering of left sides2.67Blade lift of right sides2.42Blade lowering of right sides2.67Moving of blade to the lefts10.09Moving of blade to the rights9.84Brake systemGuide brake Drum-type, brakeshoes with air-oil controlParking brake Air dump Spring DrumSteeringMinimum turn radiusm7.8Steering angle (L/R)°47.5 ± 1TyresSize 17.5-25Wheel pressurekPa225Ply rating 12Pattern L2/G2Refueling tanksOil fuel tankl280Hydraulic systeml60OptionallyFractional Clutch of rolling circle
