• Model NO.：M910
• Type：Small Loader
• Category：Farming Wheel Loader Machine
• Size：Compact, Small, Mini
• Engine：Diesel Perkins,Yanmar,Chinese
• Rated Power：30HP, 40HP, 50HP, 60HP, 70HP, 80HP
• Rated Loading Capacity：1ton, 1.5ton, 2 Ton, 2.5ton, 3 Ton
• Weight：2000kg, 3000kg, 3500kg, 5000kg
• Max. Lifting Height：3000mm, 4000mm, 5000mm, 6000mm
• Color：Yellow, Red, White, Green, Customize
• Attachments Available：Pallet Fork, Bucket, Grapple, Hay Fork, Backhoe...
• Loader Usage：Farming, Construction, Gardening, Landscaping
• Transport Package：Container
• Specification：1200kg load capacity, 3000mm lifting height
• Trademark：STEEL CAMEL
• Origin：China
• HS Code：8429510000
• Production Capacity：500 Sets,Year

Basic Info.

Model NO. M910 Type Small Loader Category Farming Wheel Loader Machine Size Compact, Small, Mini Engine Diesel Perkins/Yanmar/Chinese Rated Power 30HP, 40HP, 50HP, 60HP, 70HP, 80HP Rated Loading Capacity 1ton, 1.5ton, 2 Ton, 2.5ton, 3 Ton Weight 2000kg, 3000kg, 3500kg, 5000kg Max. Lifting Height 3000mm, 4000mm, 5000mm, 6000mm Color Yellow, Red, White, Green, Customize Attachments Available Pallet Fork, Bucket, Grapple, Hay Fork, Backhoe... Loader Usage Farming, Construction, Gardening, Landscaping Transport Package Container Specification 1200kg load capacity, 3000mm lifting height Trademark STEEL CAMEL Origin China HS Code 8429510000 Production Capacity 500 Sets/Year

Product Description

farming equipment M910 wheel loader with round/square bale grapple
GENERAL INTRODUCTION:

STEEL CAMEL M910 mini avant wheel loader is a new design to the market which besides the normal function of loaders, also have rear output and 3 point hitch for attachments to be used at the rear end, thus it can be used as both a loader or a tractor

Different with normal wheel loaders with torque converter, it adopts fully hydrostatic system, four hydraulic wheel motors driving the loader, smooth and stepless speed change.

STRONG POWER:
Oversea famous brand diesel engine, Perkins, Kubota, Yanmar, etc.
Twin pump for working device, max. output 67l/min.
Hydrostatic transmission, each wheel has a hydraulic motor, always 4 wheel drive.
Italian piston pump offers stable flow and pressure to the driving motors.

EASY OPERATION:

STEEL CAMEL loader has humanzied design for operating, the driver has full control of all movements free and easy.
Multifunction joystick, the operator has full control to all working action just by one hand;
Steering wheel with ball, one hand control the loader's turning;
Forward/Reverse two foot pedal control the loader's driving;
Hydraulic quick coupling, changing attachments do not need to get off the loader

TECHNICAL DATA:


Model	STEEL CAMEL M910 mini telescopic loader
Dimension (LxWxH)	2690 X1240 X 2285mm
Max. lifting height (boom extended)	3030mm
Max. lifting height (boom retracted)	2512mm
Max. dumping height	2630mm
Bucket capacity	0.5cbm
Max. loading capacity	1200kg
Min. turning radius	2120mm
Turning angle	45 degree
Min. ground clearance	268mm
Speed	0-12 km/h single speed  0~8~16km/h two speed optional
Weight	1700 kg
Standard tire	26X12-12
Tire pressure	2.8 bar
Oil tank capacity	45L
Pressure	190bar
Working oil flow	33.5L/minx2
Tracking oil flow	78L/min
Oil model(mineral oil)	L-HL46
Fuel tank capacity	30L
Battery	60Ah, 12V
Engine	Perkins 404D-15
Rated power	24.5kw/33hp

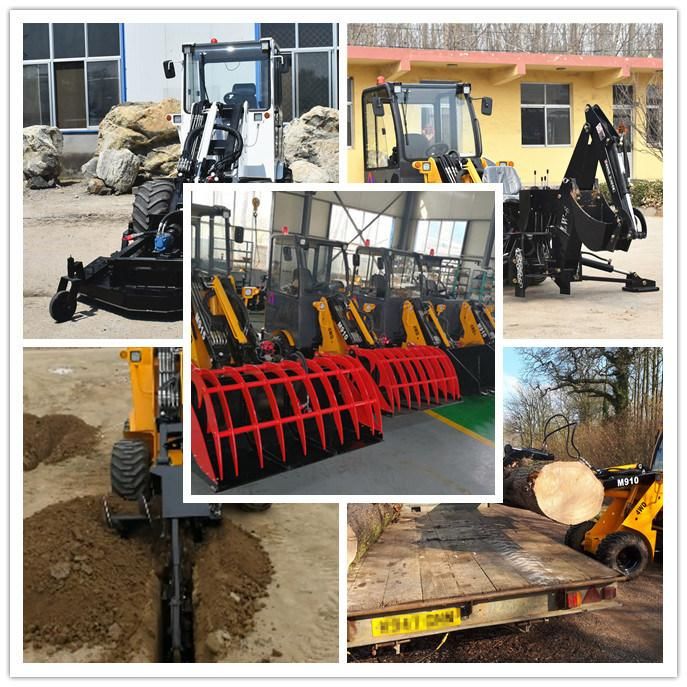

APPLICATION:

Loader+Tractor, one Multi-purpose helper for globle customers

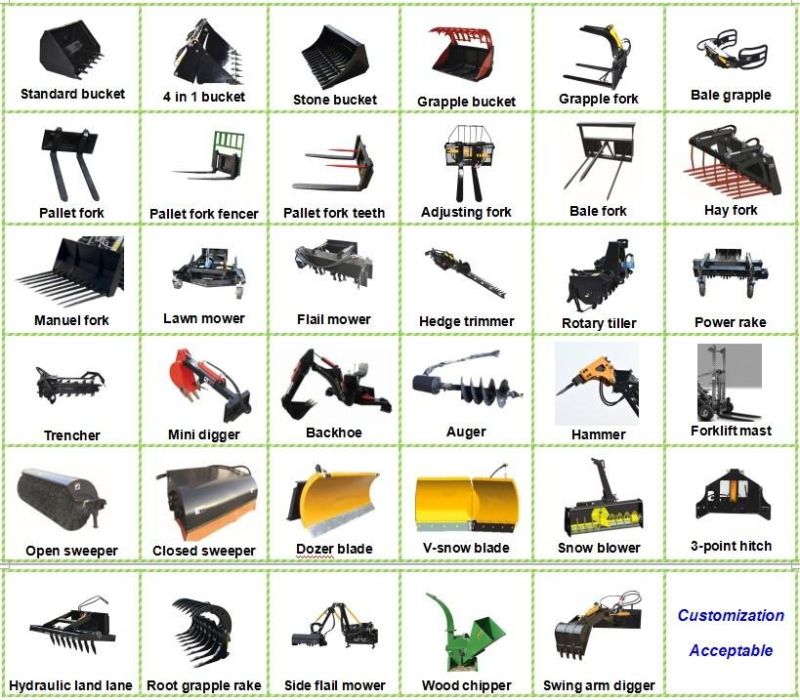

Front part is loader, with telescopic boom, hydraulic output, quick hitch and coupling system for various attachments, like bucket, fork, grapple, auger, hammer, lawn mower, etc.

Rear part is tractor, with hydraulic output and 3-point hitch, for rotary tiller, trailer, etc.

STEEL CAMEL series wheel loaders are widely used in farming, agriculture, landscaping, gardening, construction, municiple, etc.

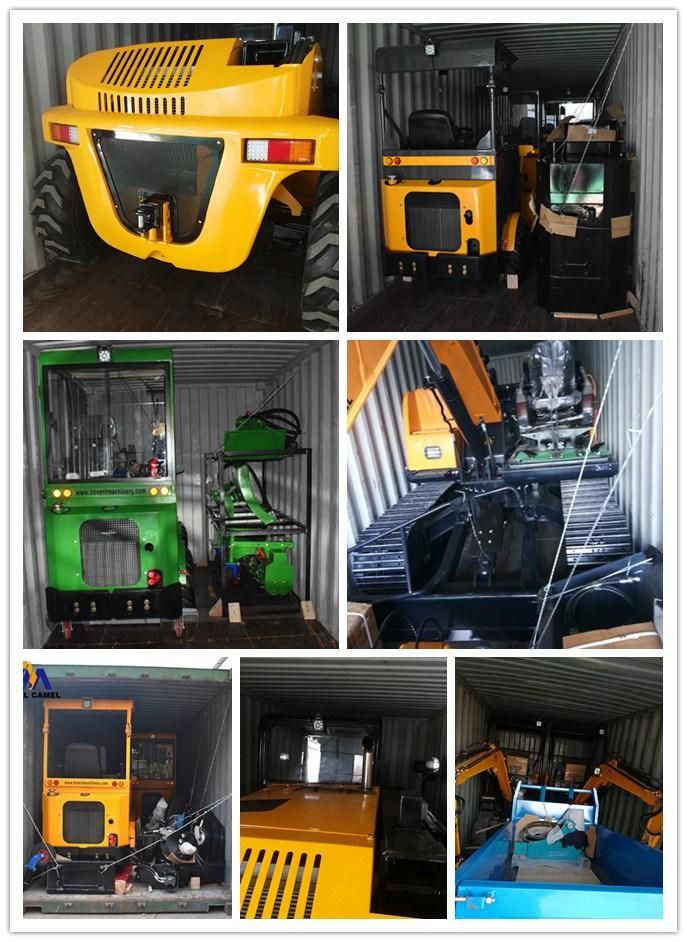

LOADING CONDITION:

Till now STEEL CAMEL products, telehandlers, wheel loaders, excavators, attachments etc. have been servicing customers in many countries, like Poland, UK, Argentina, Australia, USA, Canada, Indonisia, Spain......


COMMON QUESTIONS:




CONTACT US:With more than 10 years' experience of production and exporting, I'm ready to be your reliable consultant about products and importing procedure anytime.

Send an inquiry, leave your questions, I will take care of all the rest matters. Anna Guan/Marketing director

Shandong Honest Machinery Co., Ltd
