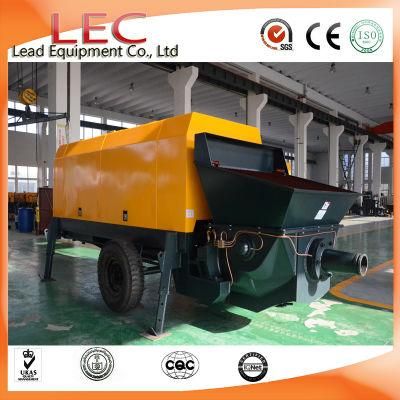

Diesel Mini Small Trailer Concrete Pump for Sale
Zhengzhou Lead Equipment Co., Ltd.- Type：Concrete Pump
- Shotcrete Type：Wet
- Machining Process：Hydraulic
- Structure：Cylinder Type
- Productivity：20m3,H
- Feeding Height：1150mm
Base Info
- Model NO.：LXHBT-20SR
- Certification：ISO9001: 2000, CE
- Condition：New
- Color：Yellow
- Model：Lxhbt-20sr
- Max. Concrete Pumping Pressure：11MPa
- Concrete Conveying Pipe Diameter：100mm and 80mm
- Max. Aggregate Particles：30mm
- Hydraulic Oil Tank Volume：350L
- Concrete Cylinder Diameter*Route：140*1000
- Rated Power(Kw)：46
- Slump：12-23cm
- Overall Dimension：5000*1700*2100mm
- Total Weight(Kg)：3000
- Transport Package：Standard Export Packing for The Concrete Pump
- Specification：CE, ISO
- Trademark：Leadcrete
- Origin：Henan, China
- HS Code：84134000
- Production Capacity：20m3,H
Description
Model No./Concrete pump
LXHBT-20SR
Max. theoretical concrete output (m³/h)
13/20
Max. theoretical concrete pumping pressure (Mpa)
11/6.8
Theoretical vertical conveying height (m)
160
Theoretical level transmission distance (m)
600
Max. Aggregate particles (mm)
30
Slump (cm)
12-23
Concrete tube conveying diameter (mm)
100A/80A
Transporting cylinder number (pieces)
2
Concrete cylinder diameter*route
Φ140×1000
Hydraulic oil tank volume (L)
350
Hopper volume (m³)
0.35
Filling height (mm)
1100
Diesel engine power (kw)
46
Overall dimension (L×W×H) (mm)
5000×1700×2100
Total weight (kg)
3000
Warrantee:
The warranty will be one year from the date of shipment. Any detected parts during this period caused by the quality of products will be replaced by seller free of cost (exclude wear and tear parts), improper operation and other manmade reasons are excluded.

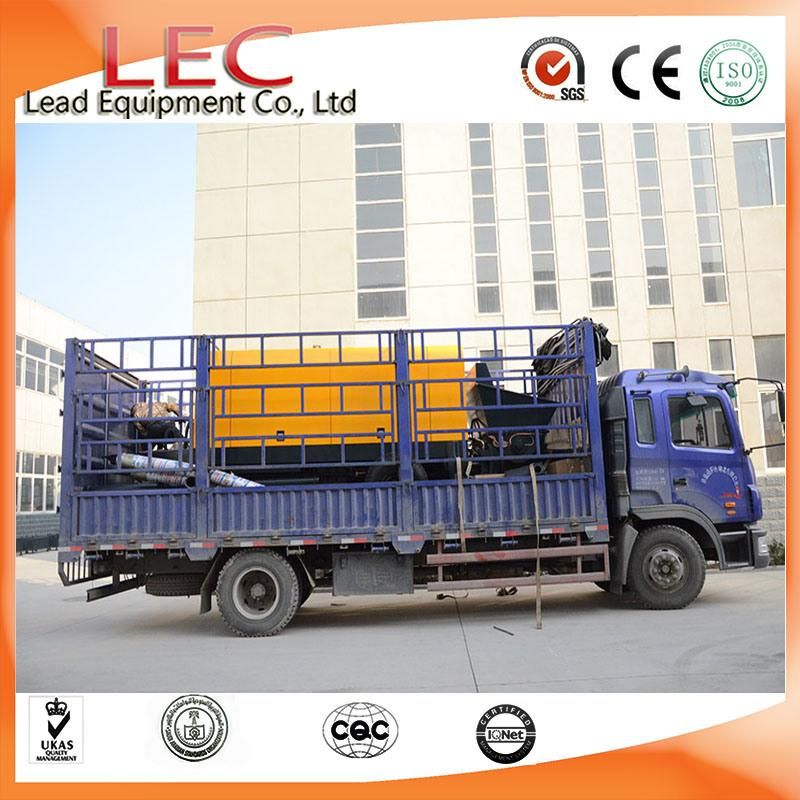

Package of small concrete pump :
Packing: In Nude,One unit/20GP
Delivery time: Usually in 15 working days for the small concrete pump .
Our Advantages and services:
Factory directly supply.
Professional sales team and experienced workers.
Competitive price according to good raw material purchasing ability,and high work efficiency
Best manufacturer in China.
Good after-sales service
Spare Parts Supply Timely
FAQ of small concrete pump
Q1: What's the form of distribution valve for concrete pump?
A: Its S valve.
Q2: What about the output you can supply?
A: The output we can supply is from 12CBM/hour to 80CBM/hour.
Q3:The matched pipes or hoses can't meet to our requirement, how can we want more pipes or hoses?
A: Easy, you could tell us before you book it, and we will calculate the cost of the extra ones.
Q4: If over the guarantee, we need spare parts, how?
A: Here, we are always here offer service in 24hours every day.
Related concrete pump data
For more information about Diesel Mini Small Trailer Concrete Pump for sale, please feel free to contact us.
