• Model NO.：SWPU80,90
• Usage：Special Excavator, Marine Excavator, GM Excavator
• Bucket：Backhoe
• Transmission：Hydraulic Transmission
• Drive Type：Internal Combustion Drive
• Bucket Capacity：1.0~1.5m³
• Size：Medium-Sized
• Certification：ISO9001: 2000
• Condition：New
• Product Name：Pontoon Undercarriage
• Brand：Sinoway
• Track Width：1700mm
• Chain Number：2 or 3
• Weight：22 Ton
• Pontoon Size：9.5 M
• Manhole：Optional
• Track Slipper：Aluminum Alloy
• Transport Package：Container
• Specification：ISO9001
• Trademark：SINOWAY
• Origin：China
• HS Code：84292090
• Production Capacity：50 Units,Month
• Package size per unit product：1000.00cm * 500.00cm * 184.00cm
• Gross weight per unit product：18000.000kg

Basic Info.

Model NO. SWPU80/90 Usage Special Excavator, Marine Excavator, GM Excavator Bucket Backhoe Transmission Hydraulic Transmission Drive Type Internal Combustion Drive Bucket Capacity 1.0~1.5m³ Size Medium-Sized Certification ISO9001: 2000 Condition New Product Name Pontoon Undercarriage Brand Sinoway Track Width 1700mm Chain Number 2 or 3 Weight 22 Ton Pontoon Size 9.5 M Manhole Optional Track Slipper Aluminum Alloy Transport Package Container Specification ISO9001 Trademark SINOWAY Origin China HS Code 84292090 Production Capacity 50 Units/Month

Packaging & Delivery

Package size per unit product 1000.00cm * 500.00cm * 184.00cm Gross weight per unit product 18000.000kg

Product Description

Highlights
Durable Hydraulic Undercarriage Pontoons
The hydraulic undercarriage pontoons are extremely important to an amphibious excavator, Sinoway is pride of his abundant experience on manufacturing pontoons that last. According to your application requirement and working conditions, we areable to design and produce an amphibious excavator specially for your working area covering swamps, salty land, off-shore, river area and so forth.

Well protected hydraulics
hydraulic hosed are well protected by the full sealed container which minimize the possibility of damage these parts when working in swamp or water area.

Three-piece welding
The pontoons are now welded with three-piece steel sheet structure in stead of normal four-piece, two bent steel plates are connected on the top, thus the eliminating of long welding seam makes the whole pontoon even durable and neater.

Heavy duty chain link and wearproof liner
Sinoway swamp buggy comes with steel track cleats with specially design to against wearing and distortion. The material of the track plates is wear.proof steel plate, with extra toughness, special stud plate structure inside the track cleat to make it strong enough to supporting the pontoons and upper excavator.

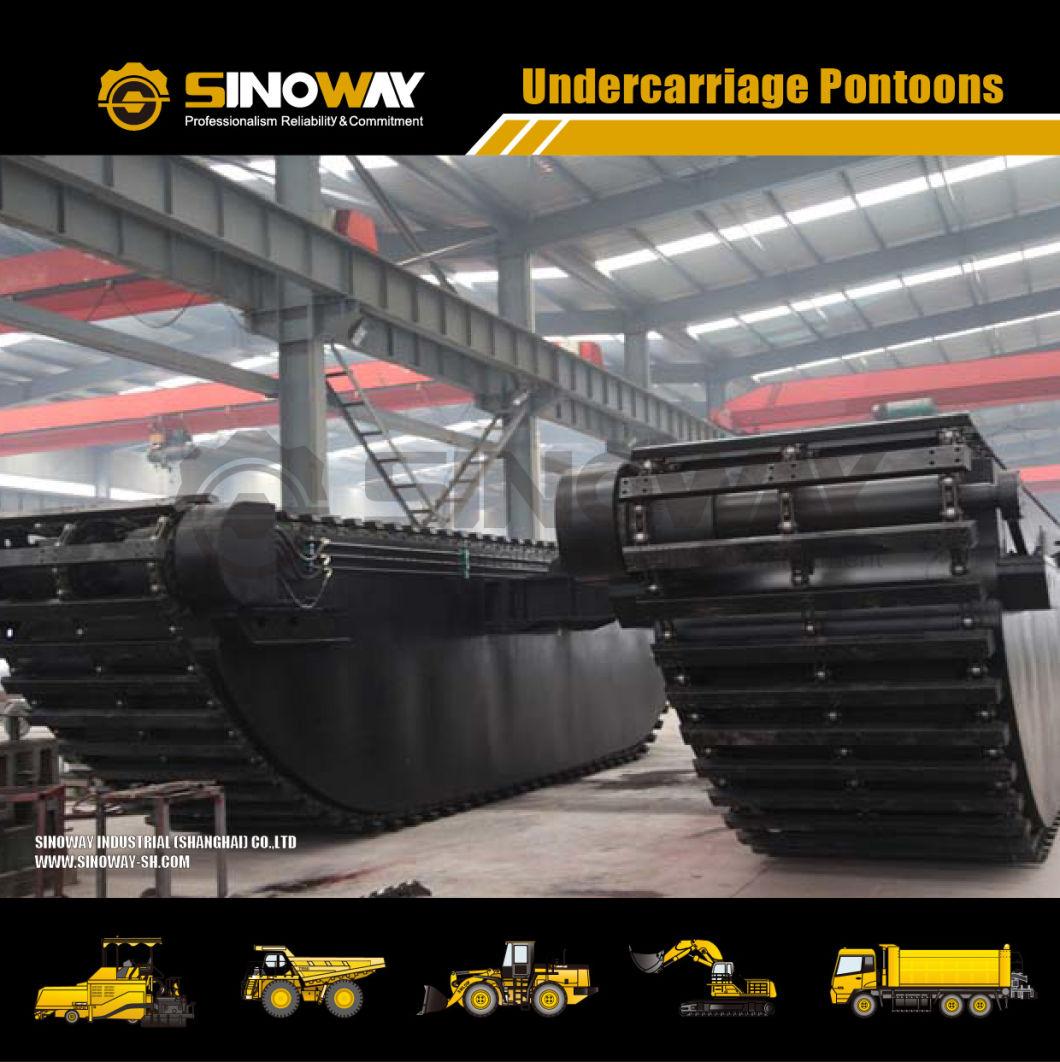

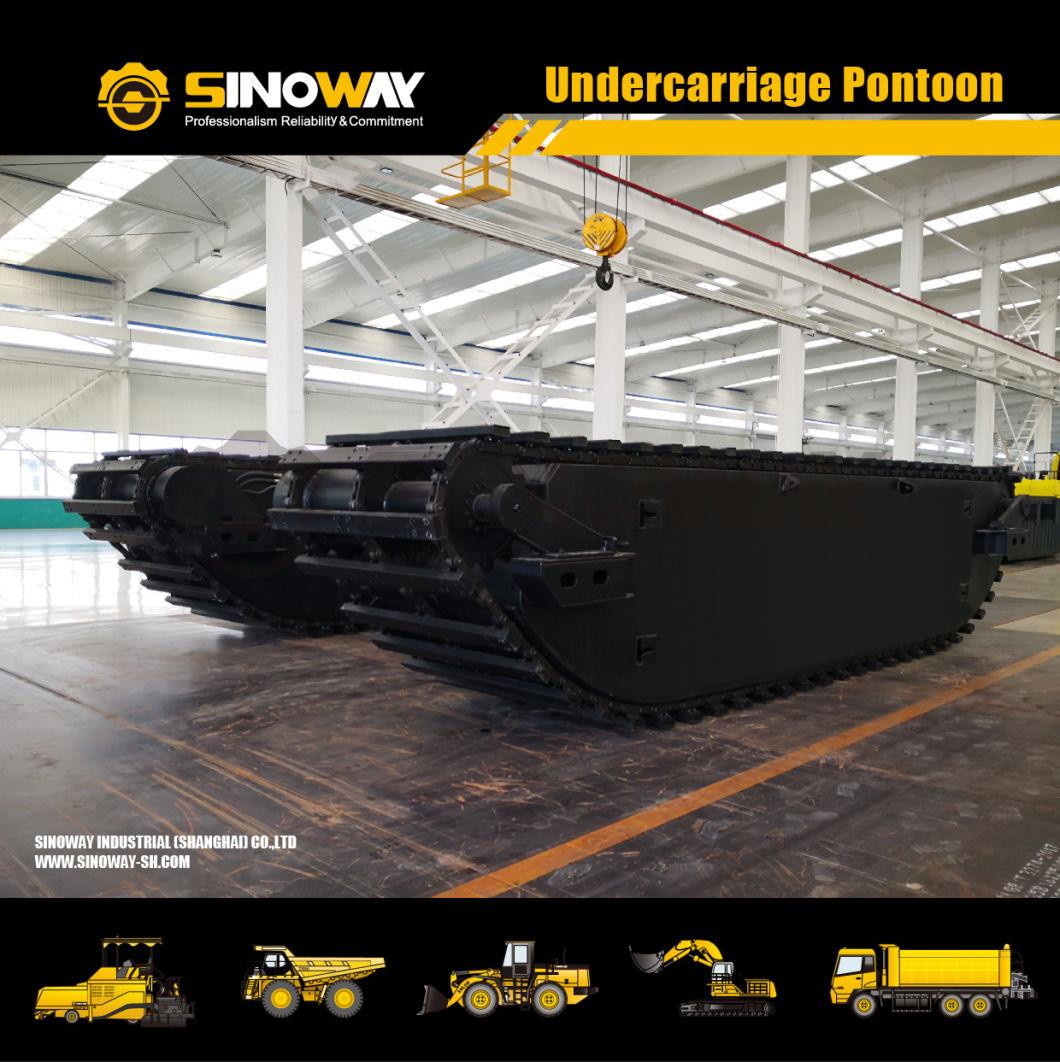

Product Show





Specifications

Pontoon	SWPU60	SWPU70	SWPU80	SWPU90	SWPU100
Pontoon length	6.7 m	7.1 m	8.5 m	9.5 m	10.2 m
Pontoon width	1.3 m	1.5 m	1.5 m	1.5 m	1.7 m
Pontoon height	1.4 m	1.5 m	1.5 m	1.5m	1.76 m
Track material	Steel or PE	Steel or PE	Steel or PE	Steel or PE	Steel or PE
Track width	1270mm	1454mm	1700mm	1700mm	1700mm
Chain numbers	2	2	3	3	3
Matching upper excavator	8 ton (CAT 308)	13~15ton (CAT 311,312,314)	20~23ton (CAT 320)	24~26ton (CAT 321,324)	25~28ton (CAT 324,329)
