• Model NO.：250*48.5*84
• Links：84(Can Be Customized)
• Length：4074mm
• Warranty：12 Months Under Normal Use
• Color：Black
• Weight：94.92kgs
• Material：Rubber and Steel
• Transport Package：Wood Pallet or Bare Packaging
• Specification：250*48.5*84
• Trademark：No Marks or As Buyer′s Requests
• Origin：Shanghai, China
• HS Code：8434499900
• Production Capacity：3000 Pieces,Month

Basic Info.

Model NO. 250*48.5*84 Links 84(Can Be Customized) Length 4074mm Warranty 12 Months Under Normal Use Color Black Weight 94.92kgs Material Rubber and Steel Transport Package Wood Pallet or Bare Packaging Specification 250*48.5*84 Trademark No Marks or As Buyer′s Requests Origin Shanghai, China HS Code 8434499900 Production Capacity 3000 Pieces/Month

Product Description

Specifications:
Commodity: Excavator Track(250*48.5*84)

Size:Width250*Pitch48,5*Links84

Weight:94.92kg


Applicable machines	Yanmar Excavators
Material	rubber and steel
Specification	250*48.5*84
Installation position	Installed on the Yanmar Excavators

Adaptation Models:

Model	Size
VIO20 (YANMAR)	250X48,5X80
SV20 (YANMAR)	250X48,5X84
VIO20 GLOBAL (YANMAR)	250X48,5X84
VIO20.1 (YANMAR)	250X48,5X84
VIO20.2 (YANMAR)	250X48,5X84
VIO20.3 (YANMAR)	250X48,5X84
VIO20CR (YANMAR)	250X48,5X84
VIO20PR.1 (YANMAR)	250X48,5X84
SV22 (YANMAR)	250X48,5X84Y
VIO20.4 (YANMAR)	250X48,5X84Y

The characteristics of rubber tracks

1. Rubber tracks cause less damage to roads than steel tracks, and less rutting on soft

ground than steel tracks

2. A benefit to equipment operating in congested areas, rubber tracks make less noise than

steel tracks

3. Rubber tracks permit machines to travel at a higher speed than steel tracks

4. Rubber tracks insulated machine and operator from vibraion, exteding the service life of

machine and decreasing operator's fatigue

5. The ground pressure of rubbr tracks equipped machinery can be fairly low, about 0.14-2.30

kg/m2, a major reason for its use on wet and soft terrain.

6. The added traction of rubber tracked vehicles permits them to pull twice the load of wheeled

vehicles of the same weight.

7. Rubber tracks' pulling performance being twice that of wheels, it permits the lighter vehicles

equip with rubber track to do the same pulling work than that of wheeled vehicles.


The notices of using rubber tracks

1. Adjust the tension of the rubber crawler so that the height, the variable range is 10-20mm

when the machine is lifted. Readjust when the tension decreases. (Be careful because the

rubber crawler may come off if the tension is too low).

2. Avoid projection from the frame around the rubber crawler, especially on its inner

circumference. (Rubber crawlers are easily deformed; If it comes into contact with the frame,

an accident such the rubber being cut can occur).

3. Avoid sharp projections when traveling.

4. Avoid turning too fast on concrete roads with a high coefficient of frction because this can

cause accidents such as cutting the rubber.

5. Be careful that no oil, etc adheres to the rubber track. If it does, wipe it off immediately.

6. When storing for long periods, keep indoors, away from direct sunshine and rain.

7. Replace as soon as possible when abrasion of sprockets is observed

We also have other kinds of and sizes of rubber tracks, if you have interest in it, do not hesitate

to send me a message and I will be very glad to be at your service.

Looking forward to receiving your enquiry.

Parameters

Width*Pitch length(mm)	Number of Links	Width*Pitch length(mm)	Number of Links	Width*Pitch length(mm)	Number of Links
130*72	28-53	300*52.5K	72-84	400*72.5KW	68-92
150*60	28-49	300*52.5KW	72-92	400*74	68-76
150*72	29-40	KB300*52.5	72-92	400*75.5K	74
170*60	30-40	KB300*52.5N	72-98	B400*86	52-55
180*60	30-40	JD300*52.5N	72-98	400*90	42-56
180*72	30-58	300*53K	80-84	Y400*142	36-37
180*72K	30-37	300*55	70-86	400*144	36-41
B180*72K	34-51	300*55.5K	76-82	Y400*144K	36-41
B180*72A	30-51	300*71K	72-55	420*100	50-58
H180*72	30-50	300*109N	25-42	450*71	76-88
190*60	30-40	K300*109	37-41	DW450*71	76-88
190*72	34-39	300*109WK	35-42	450*73.5	76-84
200*72	34-47	B300*84	78-52	450*76	80-84
200-*72K	37-47	T300*86K	48-52	450*81N	72-80
230*48	60-84	320*52.5	72-98	450*81W	72-78
230*48K	60-84	B320*52.5	68-98	KB450*81.5	72-80
230*72	42-56	320*54	70-84	K450*83.5	72-74
230*72K	42-56	B320*86	49-52	B450*84	53-56
230*96	30-48	320*90	52-56	B450*86	52-55
230*101	30-36	320*100	38-54	450*90	58-76
250*47K	84	320*100W	37-65	KU450*90	58-76
250*48.5K	80-88	Y320*106K	39-43	T450*100K	48-65
250*52.5K	72-78	350*52.5	70-92	K450*163	38
250*72	47-57	350*54.5K	80-86	485*92W	74
B250*72	34-60	B350*55K	77-98	500*90	76-82
B250*72B	42-58	350*56	80-86	500-92	72-84
E250*72	37-58	350*75.5K	74	500*92W	78-84
250*96	35-38	350*90	42-56	500*100	71
250*109	35-38	350*100	46-60	K500*146	35
260*55.5K	74-80	350*108	40-46	600*100	76-80
Y260*96	38-41	350*109	41-44	600*125	56-64
260*109	35-39	Y370*107K	39-41	700*100	80-98
280*72	45-64	400*72.5N	70-80	750*150	66
Y280*106K	35-42	400*72.5W	68-92	800*125	80
300*52.5N	72-98	Y400*72.5K	72-74
300*52.5W	72-92	KB400*72.5K	68-76

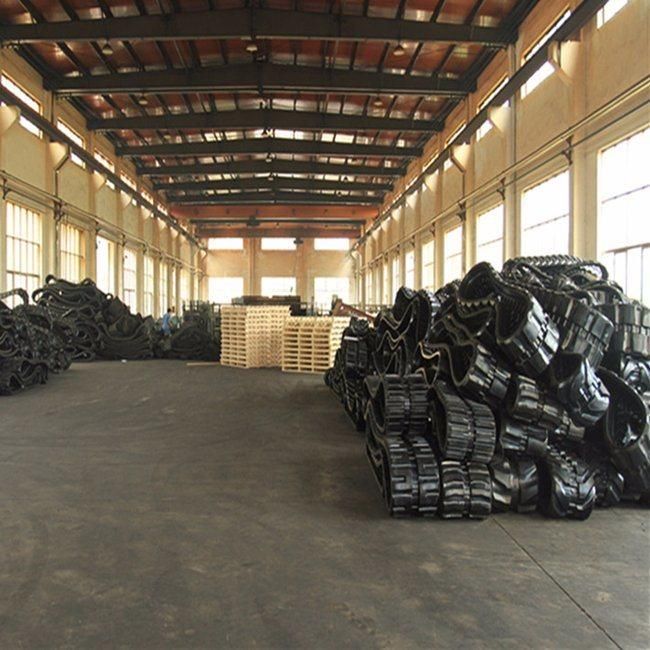

Warehouse
