• Model NO.：SD26
• Engine Power：206kw
• Certification：CE, ISO9001: 2000
• Condition：New
• Color：Yellow
• Ground Pressure (Kpa)：77
• Engine Model：Weichai Wp12
• Rated Power/Rated Speed (Kw/Rpm)：206,1800
• Forward Speed (Km/H)：F1: 0-3.8 F2:0-6.8 F3:0-11.7
• Reversing Speed (Km/H)：R1:0-4.5 R2:0-8.1 R3:0-13.9
• Center Distance of Track (mm)：2000
• Width of Track Shoes (mm)：560
• Ground Length(mm)：2730
• Fuel Tank (L)：450
• Blade Type：Straight-Tilt
• Ripper Type：Single Shank,3 Shanks
• Ripping Depth (mm)：695,666
• Transport Package：Nude Package,RO-RO,Bulk Shipment,Suitable Containe
• Specification：5495*3725*3402
• Trademark：shantui
• Origin：China
• HS Code：8429521200
• Production Capacity：300piece,Month

Basic Info.

Model NO. SD26 Engine Power 206kw Certification CE, ISO9001: 2000 Condition New Color Yellow Ground Pressure (Kpa) 77 Engine Model Weichai Wp12 Rated Power/Rated Speed (Kw/Rpm) 206/1800 Forward Speed (Km/H) F1: 0-3.8 F2:0-6.8 F3:0-11.7 Reversing Speed (Km/H) R1:0-4.5 R2:0-8.1 R3:0-13.9 Center Distance of Track (mm) 2000 Width of Track Shoes (mm) 560 Ground Length(mm) 2730 Fuel Tank (L) 450 Blade Type Straight-Tilt Ripper Type Single Shank/3 Shanks Ripping Depth (mm) 695/666 Transport Package Nude Package/RO-RO/Bulk Shipment/Suitable Containe Specification 5495*3725*3402 Trademark shantui Origin China HS Code 8429521200 Production Capacity 300piece/Month

Product Description

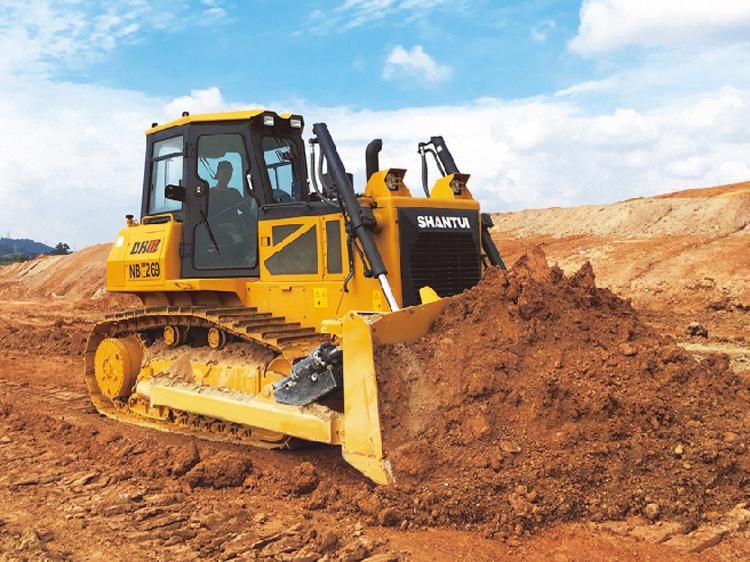

China Shantui Bulldozer SD26 with 23tons operating weight Factory Direct Sell Price



Product Description:Easy maintenances

The structural parts inherit the excellent quality of Shantui mature products.

The electric harnesses adopt corrugated pipes for protection and deconcentrators for branching, featuring high protection grade.

The openable large-space side hoods make the repairs and maintenance easier.

All lubricating and maintenance points of machine are directed to the outer side of machine body to achieve convenient and rapid maintenances.

Working adaptability

Shantui's mature product chassis system is applicable to diversified severe working conditions, featuring high stability and reliability.

Long ground length, high ground clearance, stable driving, and good trafficability.

The straight tilting blade, semi-U blade, U-blade, angle blade, coal blade, rock blade, environmental sanitation blade, ripper, and traction frame can be installed depending on specific working condition to achieve higher working adaptability. The optional LED working lamps improve the illumination capability during nighttime operations to achieve higher safety and reliability.

Driving/Riding Environment

The hexahedral cab provides super-large interior space and broad vision and the ROPS/FOPS can be installed depending on specific needs to ensure high safety and reliability.

The intelligent display and control terminal and the A/C and heating system are installed to provide more abundant personalized driving/riding experience and enable you to understand system status at any time, featuring high intelligence and convenience.

Transmission system

The curves of drive system and engine are perfectly matched to achieve more extensive high-efficiency zone and higher transmission efficiency.

Shantui's self-made drive system features stable performance and reliable quality and has been long proved by the market.

Power System

The installed Weichai engine conforms to the China-III non-road machinery emission regulation, featuring strong power, high efficiency and energy-saving, and low maintenance cost.

The rated power reaches 175kW, featuring high torque reserve coefficient.

The engine intake system adopts radially sealed intake system.


PARAMETER

Parameter name	SD26	SD26E(LONG TRACK)	SD26F(FOREST LOGGING)	SD26S(LGP)
Performance parameters
Operating weight (Kg)	23400	24600	24700	25700
Ground pressure (kPa)	77	72	66	41
Engine
Engine model	WEICHAI WP12	WEICHAI WP12	WEICHAI WP12	WEICHAI WP12
Rated power/rated speed (kW/rpm)	206/1800	206/1800	206/1800	206/1800
Overall dimensions
Overall dimensions of machine (mm)	5495*3725*3402	5495*3725*3402	5495*3725*3402	6225*4365*3402
Driving performance
Forward speed (km/h)	F1: 0-3.8 F2:0-6.8 F3:0-11.7	F1: 0-3.8 F2:0-6.8 F3:0-11.7	F1: 0-3.8 F2:0-6.8 F3:0-11.7	F1: 0-3.8 F2:0-6.8 F3:0-11.7
Reversing speed (km/h)	R1:0-4.5 R2:0-8.1 R3:0-13.9	R1:0-4.5 R2:0-8.1 R3:0-13.9	R1:0-4.5 R2:0-8.1 R3:0-13.9	R1:0-4.5 R2:0-8.1 R3:0-13.9
Chassis System
Center distance of track (mm)	2000	2000	2000	2250
Width of track shoes (mm)	560	560	560	910
Ground length(mm)	2730	3050	2730	3480
Tank capacity
Fuel tank (L)	450	450	450	450
Working device
Blade type	Straight-tilt	Straight-tilt	Straight-tilt	Straight-tilt
Ripper type	Single shank/3 shanks	Single shank/3 shanks	Single shank/3 shanks	--
Ripping depth (mm)	695/666	695/666	695/666	--
