• Model NO.：SWG180
• Walking Mode：Wheeled
• Type：Medium-sized Grader
• Blade Width：4268mm
• Engine Power：180 HP
• Operating Weight：15.2 Ton
• Tire Size：17.5-25

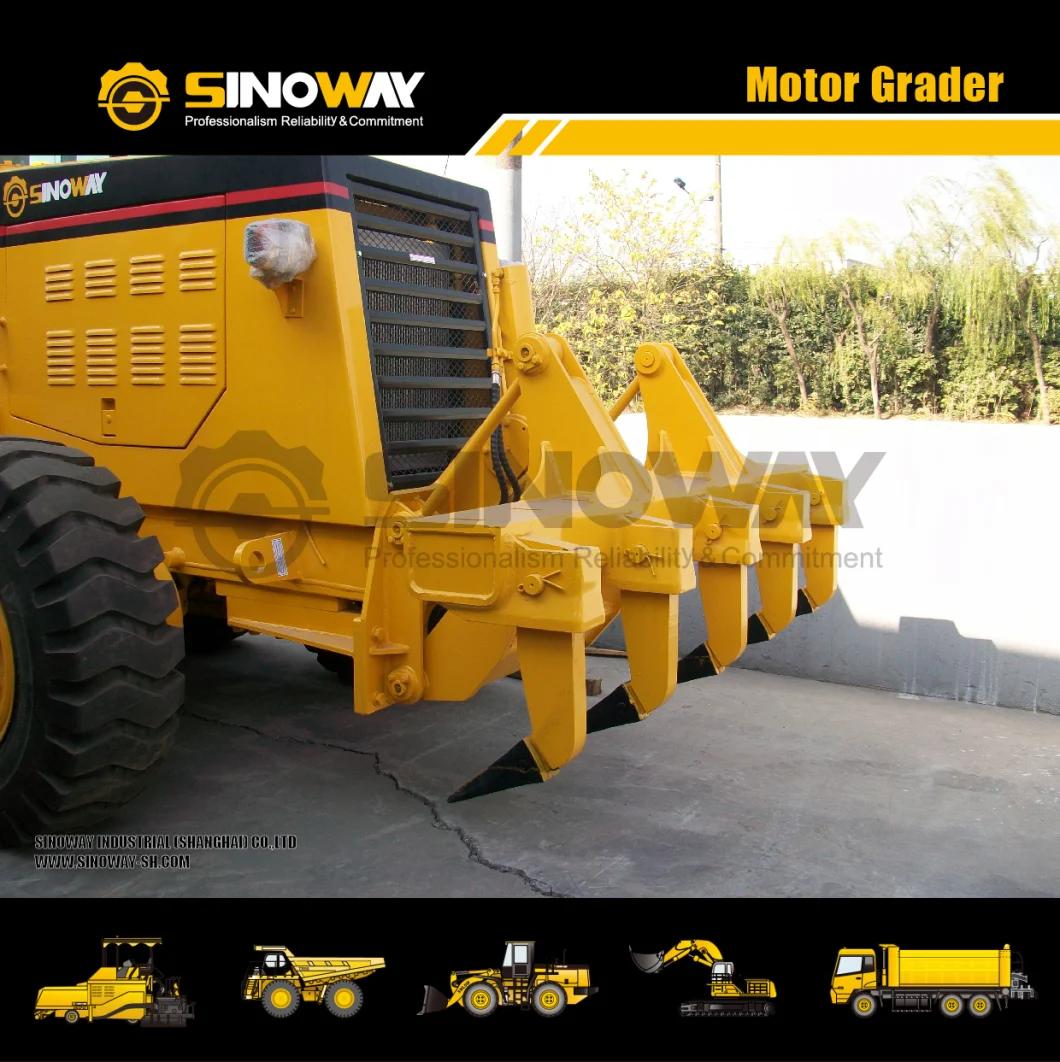

• Rear Ripper：Optional
• Front Dozer：Optional
• Color：Customized
• Transport Package：Nude
• Specification：ISO
• Trademark：SINOWAY
• Origin：China
• HS Code：84294090
• Production Capacity：500 Unit Per Year

Basic Info.

Model NO. SWG180 Walking Mode Wheeled Type Medium-sized Grader Blade Width 4268mm Engine Power 180 HP Operating Weight 15.2 Ton Tire Size 17.5-25 Rear Ripper Optional Front Dozer Optional Color Customized Transport Package Nude Specification ISO Trademark SINOWAY Origin China HS Code 84294090 Production Capacity 500 Unit Per Year

Product Description

Main Features

Equipped with reliable Shanghchai engine.
Sing-handle electro-hydraulic controlled power shift T/M, 6 forward & 3 reverse shifts maks operation easy and convenient.
Hydraulic lock auto lock/unlock NO-SPIN differential ensure stability and powerful traction.
The international matching hydraulic parts are adopted,with reliable operation.
Box-typed frame and advanced T/M enable it to complete heavy duty work.
The manipulation table and seats are adjustable. The arrangement of the manipulation handle and instruments are reasonable,with convenient application,and the comfort of driving is improved .
The cab is grand and nice,with wide eyeshot and good sealing .
The front bulldozing plate, rear scarification device,front scarification harrow and automatic leveling device can be added.

Product Show




Specifications

Engine
Model	SC8D190
Type	Six-cylinder,water-cooled turbocharged,mechanical injection
Rated power	140KW
Rated speed	2200rpm
Transmission System
Torque conveter type	3 elements, single stage
Torque ratio	2.52
Cooling type	Oil cooled, pressure circulation
Gearbox type	Power shift
Gear shifts(Forward/Reverse)Travelling speed(km/h)	F6/R3
Forward/Reverse I	6.5/6.5
Forward/Reverse II	11.4/14.6
Forward/Reverse III	24.8/30
Forward IV	24.8
Forward V	30
Forward VI	49.2
Steering System
Front wheel steering angle	49º(L/R)
Articulated steering angle	26º(L/R)
Drive type	Dual action cylinder
Axle
Drive type	Four wheel drive(6×4)
Front axle ground clearance	610mm
Front wheel lean	32º(L/R)
Oscillation	±15º
Drive axle	Imported No-SPIN differential
Working Equipment
Control system	Hydrostatic drive system
Hydraulic pump	Gear pump
Control valve	HUSCO
Control pressure	18MPa
Hydraulic oil cylinder	HYUNDAI
Max. tractive force	80.5KN
Ground penetration	535mm
Blade width	4268mm
Blade cycling	360º
Max. bank cutting angle	90º(L/R)
Operating weight	15200kg
Braking System
Service brake	Hydraulic assist actuated on inner-expanding drum brake
Parking brake	Mechanical and inner-expanding brake
Dimensions
Overall length	9140mm
Overall width(wheel outside)	2600mm
Overall height	3370mm
Wheel base	6150mm
Front tread	2120mm
Rear tread	2120mm
Tyre size	17.5-25
Service Capacities
Fuel tank	350L
Engine crank case	27L
Hydraulic tank	70L
Gear box	45L
Rear axle	18L
Balance box	42L(each)
Worm gear case	3L
Tandem Drive
Type	Swing type with roller chain transmission
Speed ratio	18.03
