• Model NO.：856H
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Medium-sized Loader
• Operating Weight：17000-17800 Kg
• Standard Bucket：3.0 M3
• Gross Power：162 Kw (220 HP) @ 2200 Rpm
• Net Power：162 Kw (220 HP) @ 2000 Rpm
• Total Cycle Time：10 S
• Bucket Breakout Force：172 Kn
• Model：Cummin S 6lt9.3
• Emissions：EPA Tier 2 , EU Stage II
• Length with Bucket Down：8357 mm
• Width Over Tires：2750 mm
• Tipping Load-Full Turn：10800 Kg
• Dump Reach, Full Height Discharge：1126 mm
• Dump Clearance, Full Height Discharge：3100mm
• Turning Radius, Outside of Tire：6205 mm
• Transport Package：Nude Package
• Specification：5 ton wheel loader
• Trademark：Liugong
• Origin：China
• Production Capacity：500,Month

Basic Info.

Model NO. 856H Load and Unload Mode Front Discharge Walking Mode Wheeled Type Medium-sized Loader Operating Weight 17000-17800 Kg Standard Bucket 3.0 M3 Gross Power 162 Kw (220 HP) @ 2200 Rpm Net Power 162 Kw (220 HP) @ 2000 Rpm Total Cycle Time 10 S Bucket Breakout Force 172 Kn Model Cummin S 6lt9.3 Emissions EPA Tier 2 / EU Stage II Length with Bucket Down 8357 mm Width Over Tires 2750 mm Tipping Load-Full Turn 10800 Kg Dump Reach, Full Height Discharge 1126 mm Dump Clearance, Full Height Discharge 3100mm Turning Radius, Outside of Tire 6205 mm Transport Package Nude Package Specification 5 ton wheel loader Trademark Liugong Origin China Production Capacity 500/Month

Product Description

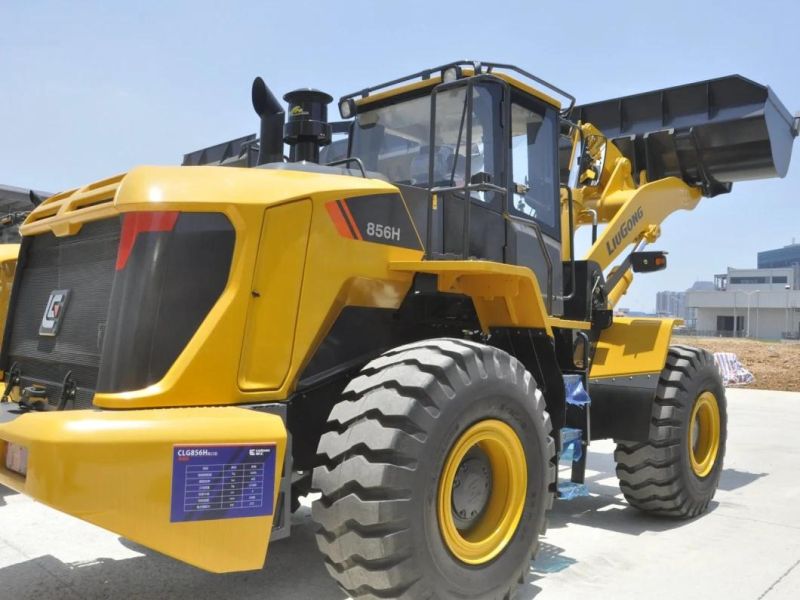

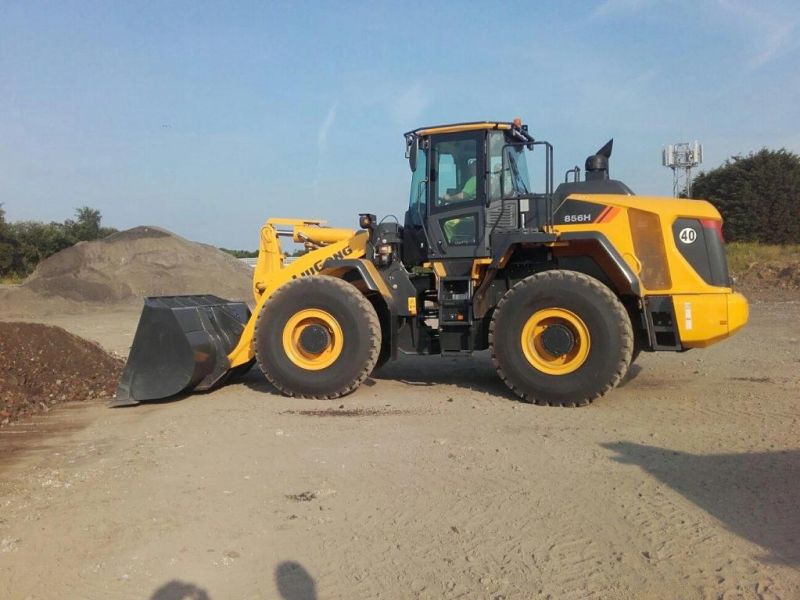

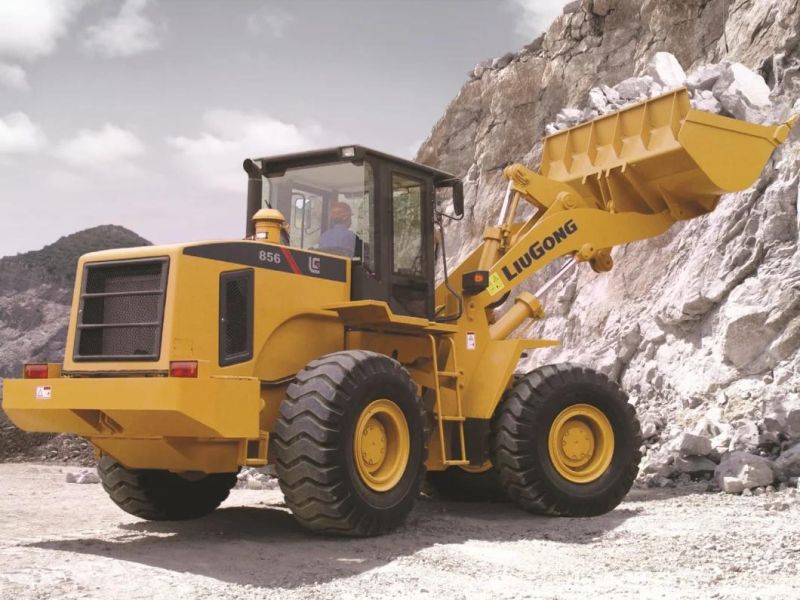

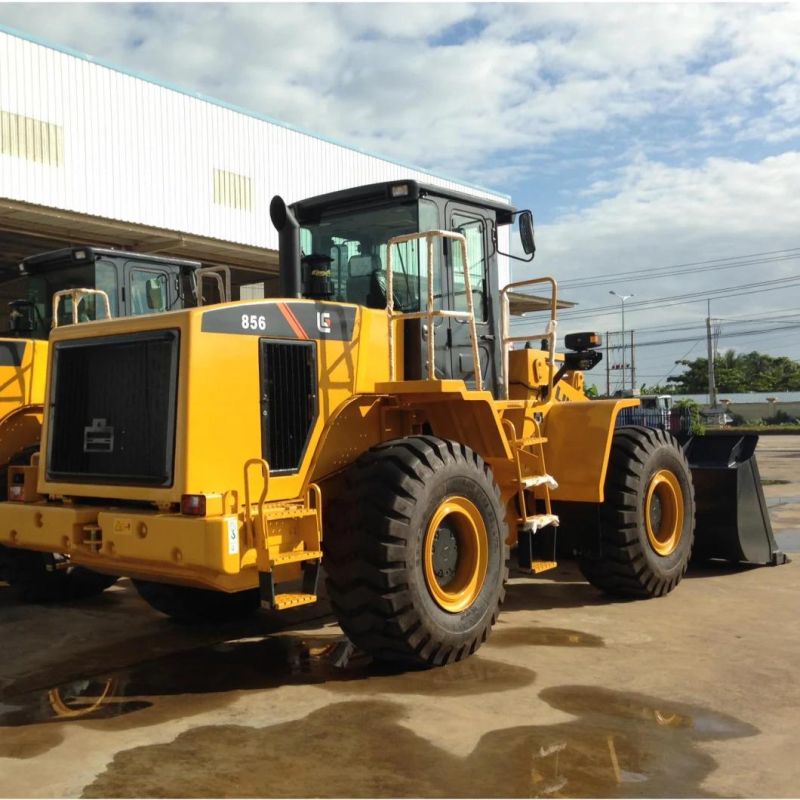

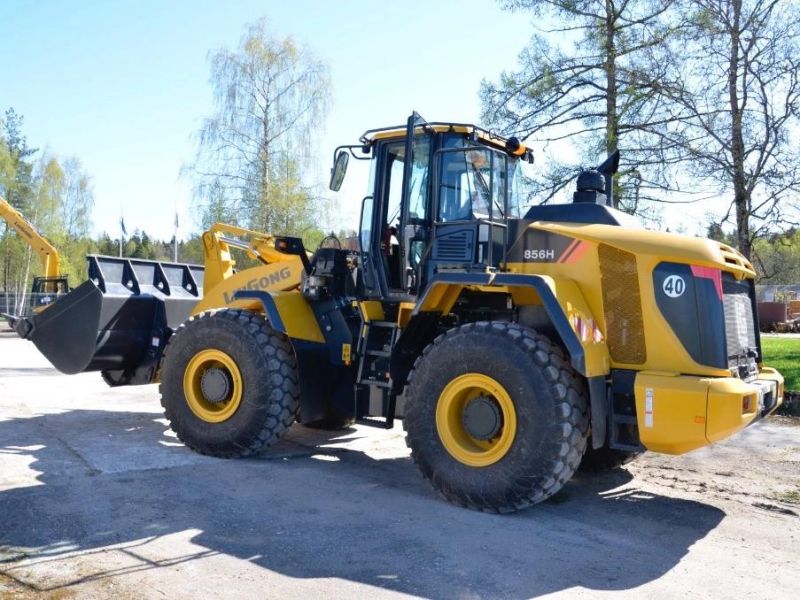

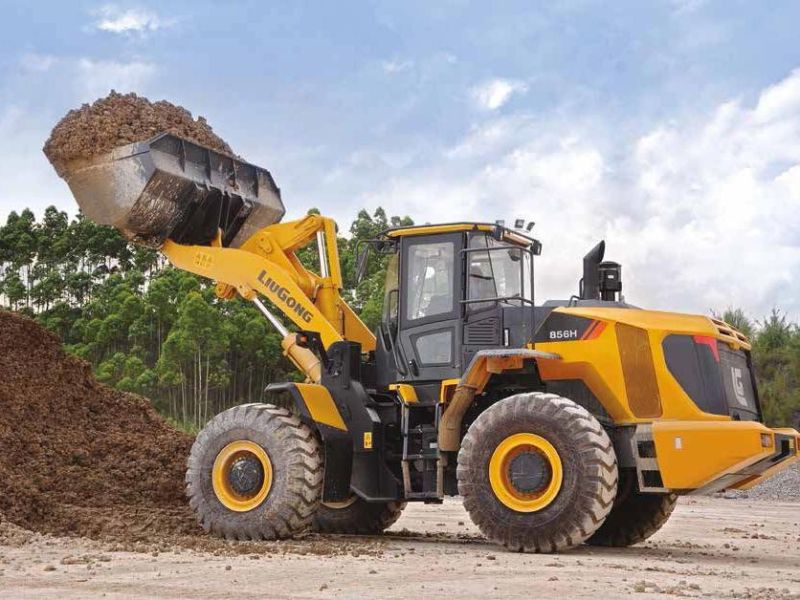

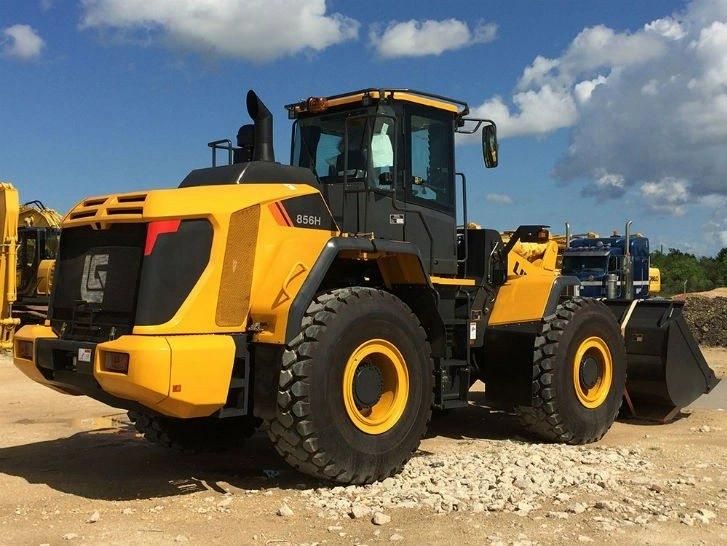

China New Earth Moving Machinery Front Loader 5 Ton LIUGONG 856h CLG856H 3cbm Wheel Loader for sale


• The hydraulic system has a dual-pump confluence with steering always in priority, reducing energy loss.
• ROPS/FOPS certified cab for operator safety and reliable operation in tough conditions. Fully-sealing and micro-pressuring system ensures the cab is clean and quiet.
• Single layer radiator and big range fin spacing for high efficiency and easy maintenance.
• Optional multiple attachments, including: multiple buckets, pallet fork, handing arm, grapple and snow blade greatly expands the applications of the wheel loader.

856H---Satge II:

Operating weight	17000-19300 kg
Standard bucket	3.0 m3
Gross power	162 kW (220 hp) @ 2000 rpm
Net power	148 kW (201 hp) @ 2200 rpm
Rated load	5000 kg
Total cycle time	10 s
Tipping load-full turn	10800 kg
Bucket breakout force	172 kN
Dump clearance, full height discharge	3100 mm
Dump reach, full height discharge	1126 mm
Model	6LT9.3
Emissions	EPA Tier 2 / EU Stage II
Cooling system	Charge air cooling
Length with bucket down	8357 mm
Width over tires	2750 mm
Cab height	3450 mm
Turning radius, outside of tire	6205 mm
Bucket capacity	2.6-5.6 m3
General Purpose	3.0 m3
Light material	4.2, 5.2, 5.6 m3
Heavy-rock	2.7 m3



Operating weight	17000-19300 kg
Standard bucket	3.0 m3
Gross power	162 kW (220 hp) @ 2000 rpm
Net power	148 kW (201 hp) @ 2200 rpm
Rated load	5000 kg
Total cycle time	10 s
Tipping load-full turn	10800 kg
Bucket breakout force	172 kN
Dump clearance, full height discharge	3100 mm
Dump reach, full height discharge	1126 mm
Model	6LT9.3
Emissions	EPA Tier 2 / EU Stage II
Cooling system	Charge air cooling
Length with bucket down	8357 mm
Width over tires	2750 mm
Cab height	3450 mm
Turning radius, outside of tire	6205 mm
Bucket capacity	2.6-5.6 m3
General Purpose	3.0 m3
Light material	4.2, 5.2, 5.6 m3
Heavy-rock	2.7 m3

856H---Satge IIIA:


Operating weight	17000-18425 kg
Standard bucket	3.0 m³
Gross power	162 kW (220 hp) @ 2000 rpm
Net power	154 kW (209 hp) @ 2000 rpm
Rated load	5000 kg
Total cycle time	10.2 s
Tipping load-full turn	10800 kg
Bucket breakout force	179 kN
Dump clearance, full height discharge	3100 mm
Dump reach, full height discharge	1126 mm
Model	Cumminz QSL9.3
Emissions	EPA Tier 3 / EU Stage IIIA
Cooling system	Charge air cooling
Length with bucket down	8357 mm
Width over tires	2750 mm
Cab height	3450 mm
Turning radius, outside of tire	6205 mm
Bucket capacity	2.6-5.6 m³
General Purpose	3.0 m³
Light material	4.2, 5.2, 5.6 m³
Heavy-rock	2.7 m³

856H---Satge IV / Tire 4F:


Operating weight	11811-19200 kg
Standard bucket	3.2 m³
Maximum gross power	168 kW (228 hp) @ 2000 rpm
Maximum net power	160 kW (218 hp) @ 2000 rpm
Rated load	5000 kg
Total cycle time	10.3 s
Tipping load-full turn	11500 kg
Bucket breakout force	175 kN
Dump clearance, full height discharge	2955 mm
Dump reach, full height discharge	1129 mm
Model	Cumminz QSB6.7
Emissions	EPA Tier 4F / EU Stage IV
Cooling system	Charge air cooling
Length with bucket down	8318 mm
Width over tires	2750 mm
Cab height	3450 mm
Turning radius, outside of tire	6205 mm
Bucket capacity	2.6-5.6 m³
General Purpose	3.0 m³
Light material	4.2, 5.2, 5.6 m³
Heavy-rock	2.7 m³
