• Model NO.：LTS208H
• Compaction Depth：30cm
• Engine Type：Diesel Engine
• Travel Speed：30cm,s
• Centrifugal Force：18KN
• Certification：ISO 9001:2000, ISO 9001:2008
• Condition：New
• Operation Weight：8000kg
• Static Linear Load：235n,Cm
• Vibration Amplitude：0.4mm
• Vibration Frequency：43Hz
• Color：Yellow
• Max. Travel Speed：15km,H
• Turning Radius：5000mm
• Vibration Drum Width：1700mm
• Engine：Cummins
• Transport Package：Nude Packing
• Specification：5040*1880*2570mm
• Trademark：LUTONG
• Origin：China
• Production Capacity：200units,Month

Basic Info.

Model NO. LTS208H Compaction Depth 30cm Engine Type Diesel Engine Travel Speed 30cm/s Centrifugal Force 18KN Certification ISO 9001:2000, ISO 9001:2008 Condition New Operation Weight 8000kg Static Linear Load 235n/Cm Vibration Amplitude 0.4mm Vibration Frequency 43Hz Color Yellow Max. Travel Speed 15km/H Turning Radius 5000mm Vibration Drum Width 1700mm Engine Cummins Transport Package Nude Packing Specification 5040*1880*2570mm Trademark LUTONG Origin China Production Capacity 200units/Month

Product Description

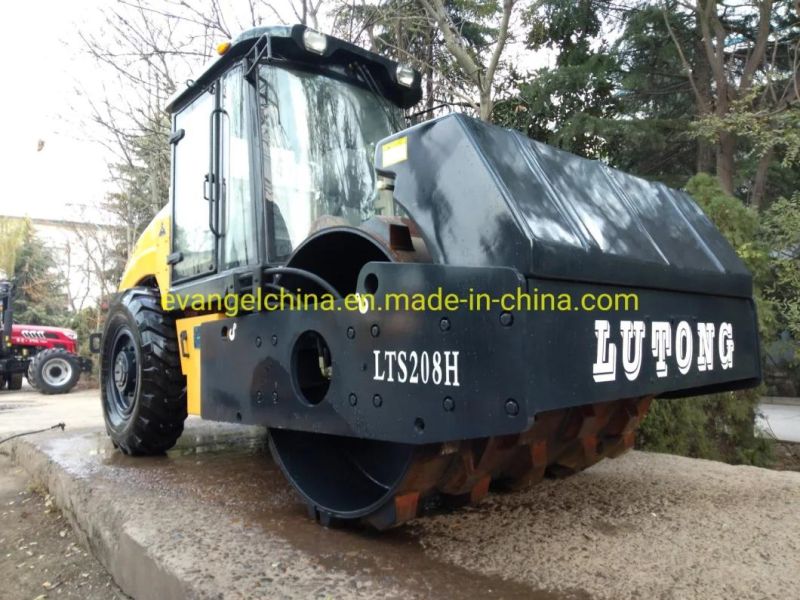

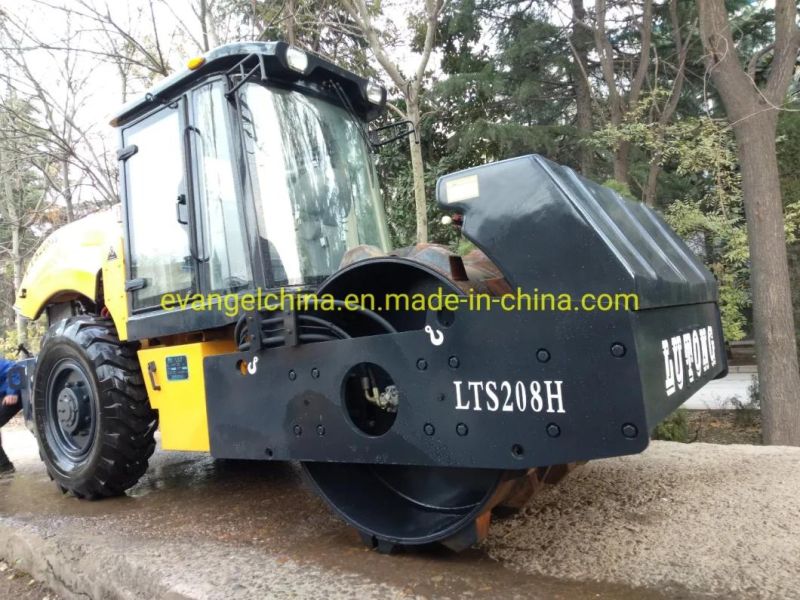

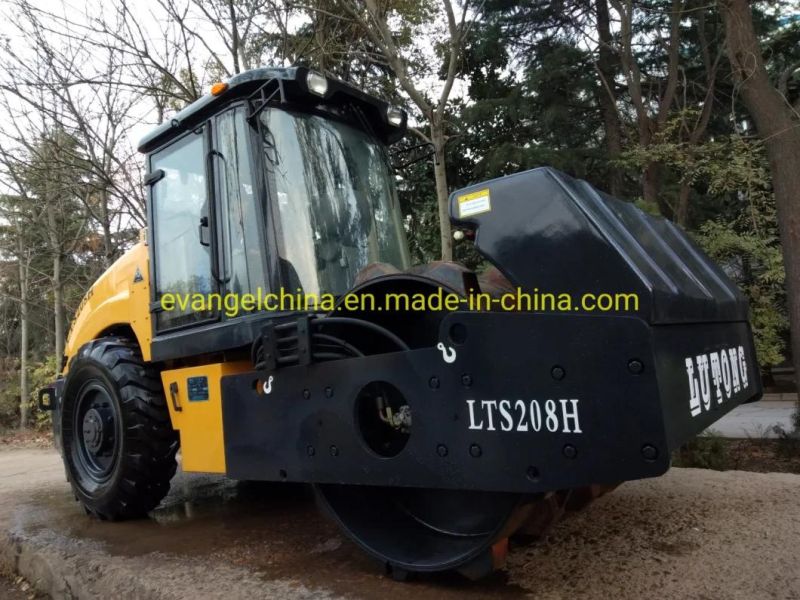

8000kg small hydraulic single drum road roller LTS208H

Hydraulic single rear tyre drive vibratory roller is manufactured according to the international advanced technology and by use of imported components from abroad. The machine is super heavy-duty vibratory roller, possesses a great working mass and strong centrifugal force. It is the best compaction equipment of high quality and high effect in the large-scale mechanized construction. This machine is suitable for non-cohesive materials, such as graves, macadam, macadam-aggregate mixtures and sandy soil etc. Also it can effect good compaction in cohesive material, There-fore the machine an ideal equipment for expressway. mining road, embankment, sea port and industrial sites.

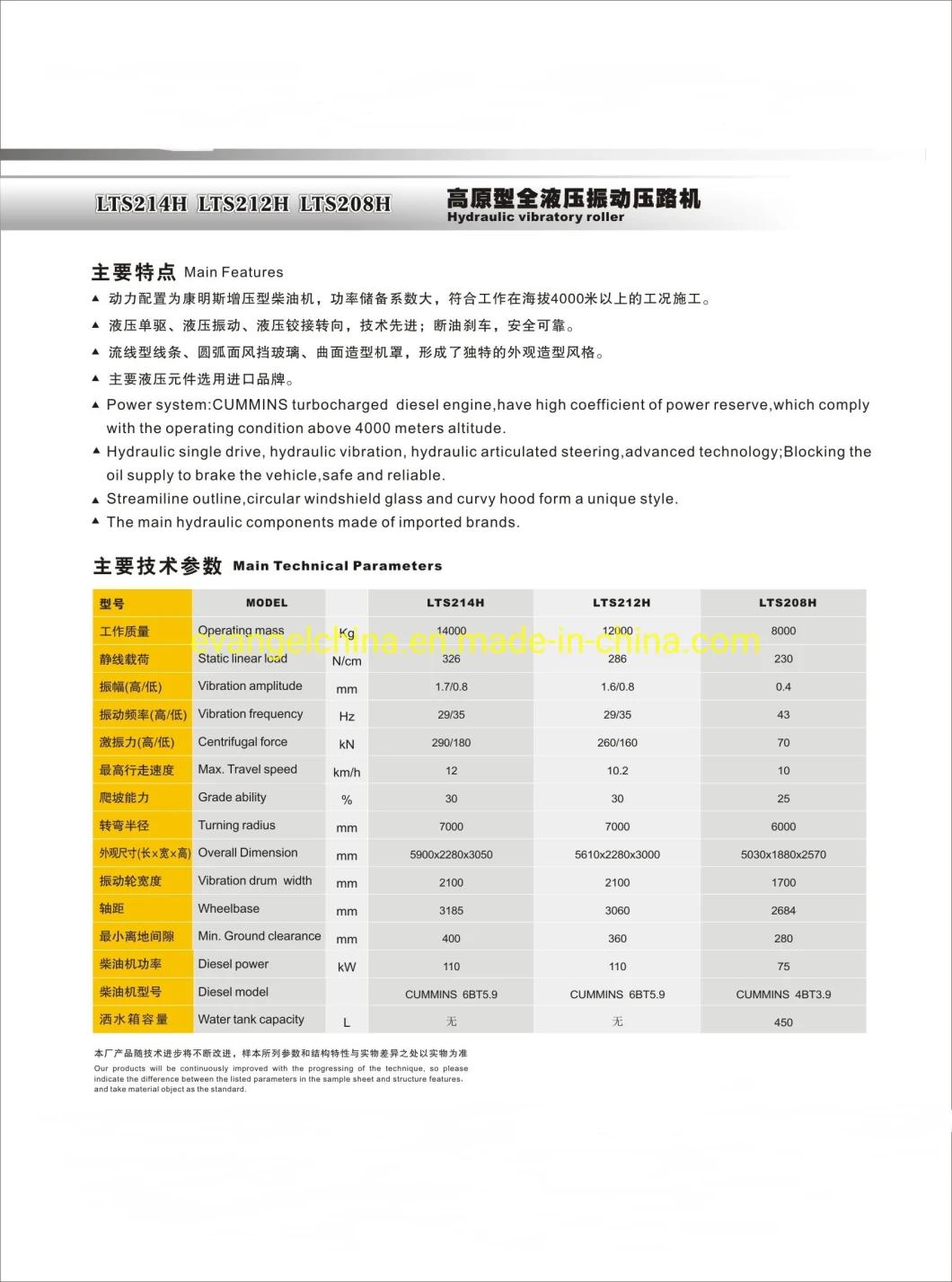

Main Features
Power System: CUMMINS B-series turbocharged diesel engine, huge power man efficiency, compliance for the operating condition above 4000 meters altitude.
Hydraulic single drive,hydraulic vibration,hydraulic articulated steering,advanced technology;
Blocking the oil supply to brake the vehicle,safe and reliable.
Streamline outline, circular windshield glass and curvy hood form a unique style.
The main hydraulic components made of imported brands.

Operation weight: (kg)	8000
Static linear load: (N/cm)	235
Vibration amplitude: (mm)	0.4
Vibration frequency: (Hz)	43
Centrifugal force: (kN)	70
Max. travel speed: (km/h)	15
Grade ability: (%)	25
Turning radius: (mm)	5000
Vibration drum width: (mm)	1700
Wheelbase: (mm)	2750
Ground clearance: (mm)	320
Overall dimensions: (L×W×H) (mm)	5040×1880×2570

Engine

Engine Name	Chinese Cummins 4BT3.9-C100
Rated speed:(rpm)	2400
Rated power (KW)	75
Max. torque:(N.m/rpm):	330/1500
Rated fuel consumption:(g/kw.h)	≤228
Displacement: (L)	3.9

Core Components

Vibration pump	Gear pump, CPC4-40-B6F1-R (Installed with Engine)
Travel pump	SAUER Brand, 90R075 (Installed with Engine)
Vibration pump	Gear pump, GMC4-40-2H6F4-30 (Installed in vibrating housing)
Travel motor	SAUER Brand, 90M055 (Installed in driving axle)
Steering pump	QC18/16-EQ-JG
