• Model NO.：DH24B2
• Engine Power：147~515kw
• Certification：CE, ISO9001: 2000
• Condition：New
• Color：Orange
• Transport Package：Nude Package
• Specification：6095*3640*3192mm
• Trademark：SINOMADA
• Origin：China
• Production Capacity：100 Units,Month

Overview

Product Description

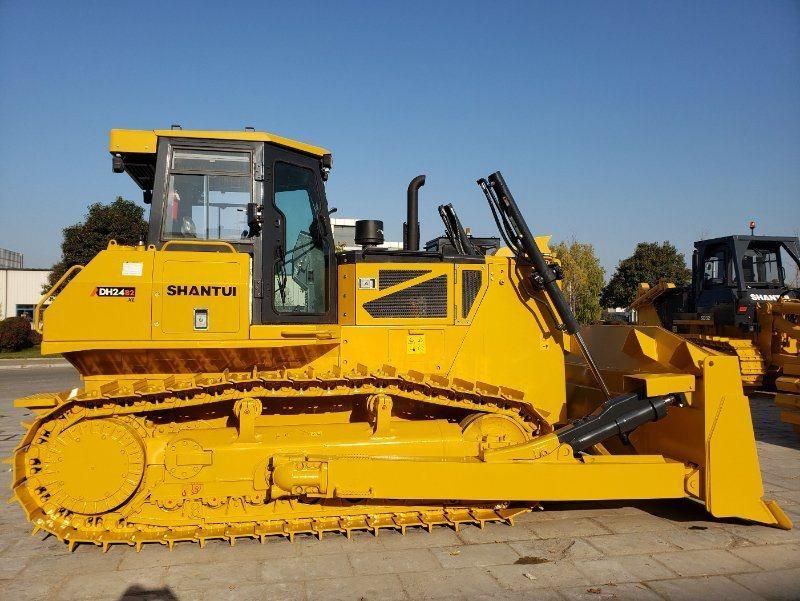

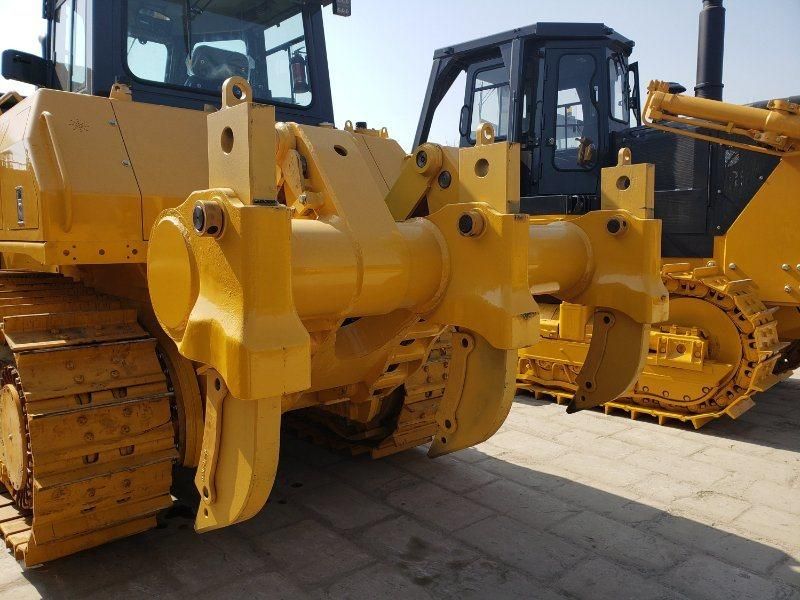

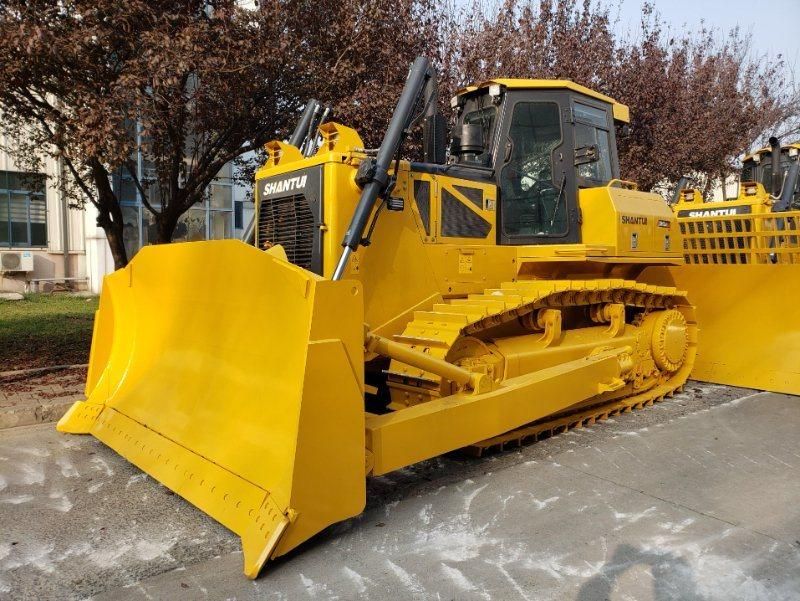

Detailed Photos

Product Parameters



PRODUCTDH24 B2 XLPERFORMANCE PARAMETERSOperatiing   Weight (kg)23850Rated horsepower (kw/hp)185/248Minimum turning radius (mm)4024Ground pressure (kpa)68.4ENGINEModelWeichai   WD12G250E202EmissionChina   IITypeIn-line,direct   injection,water cooled,4-cycles,turbochargedNo.of cylinders×Bore×stroke (mm×mm)6×126mm×155mmPiston displacement (L)11.596Horsepower/rpm (kw/rpm)185/248
   Maximum torque (N.m/r/min)1208/1300
   DIMENSIONSLength   (mm)6095Width (mm)3640Height (mm)3192
   TRAVELING PERFORMANCEForward/Reverse   (km/h)0-11Gradeability (deg)30Clearance (mm)450TRANSMISSIONTraveling   pump(Linde)Variable   displacement piston pumpTraveling motor(Linde)Variable   displacement piston motorPump for oil refillGear   pumpCouplingElastic   couplingFinal driver1   stage spur gear and 1stage planetary reductionBrakeWet,closed   brakeUNDERCARRIAGESuspensionOscillating   equalizer bar and pivot shaftTrack gauge (mm)2000Shoe width (mm)560/610(Optional)/660(Optional)Track length on ground (mm)3050Number of shoes (each side)41Pitch (mm)216Carrier rollers (each side)2Track rollers (each side)7(5   Single,2 Double)WORKING HYDRAULIC SYSTEMWorking   hydraulic pumpGear   pumpPPC pumpGear   pumpValveMulti-way   valveBore of blade lift cylinder (mm)118Bore of blade tilt cylinder (mm)180TANK CAPACITYFuel   tank capacity (L)390Working hydraulic tank capacity (L)95Transmission hydraulic tank capacity (L)85Working equipmnetBlade   width (mm)3640Blade height (mm)1580Blade capacity (m³)6.48
