• Model NO.：LW500FN
• Type：Medium-sized Loader
• Bucket Capacity：2.5-4.5m3
• Operation Mass：16900kg
• Dump Clearance at Maximum Lift：3150-3560mm
• Rated Power：162kw
• Transport Package：Comply with Export Packaging Requirements
• Specification：7910*3016*3515mm
• Trademark：XCMG
• Origin：Xuzhou, Jiangsu, China
• HS Code：87059091
• Production Capacity：10000,Year

DescriptionUnitParameter valueRated operating loadkg5000Bucket capacitym³2.5~4.5Machine weightkg16900Dump clearance at maximum liftmm3150~3560Reach at maximum liftmm1100~1190Wheel basemm2960Treadmm2250Height of hinge at maximum lift heightmm4112Working height(fully lifted)mm5510Max.breakout forcekN170Hydraulic cycle time-raises≤6Total hydraulic cycle times≤10.5Min. turning radius over tyresmm5950Articulation angle°35Gradeability°28Tyre size 23.5-25-16PROverall machine dimension L×W×Hmm7910×3016×3515Model WD10G220E21Rated PowerkW162Fuel TankL250Hydraulic TankL210Travel SpeedI-gear(F/R)km/h13/18II-gear(F/R)km/h40

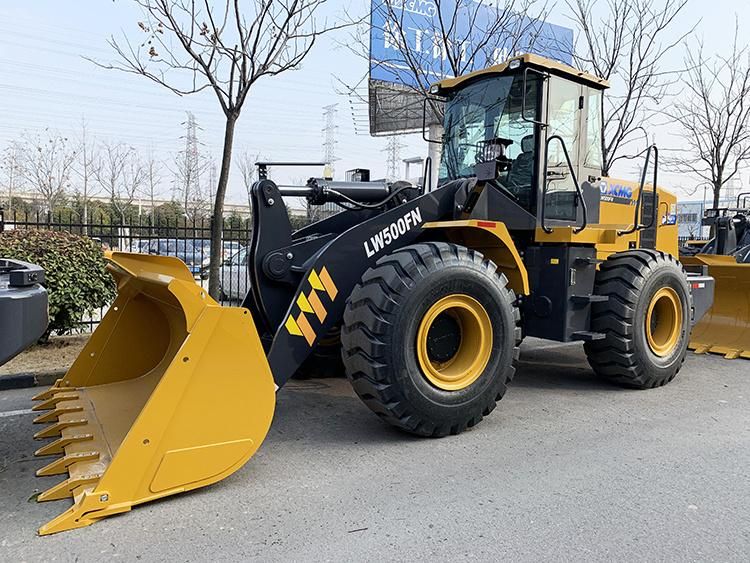

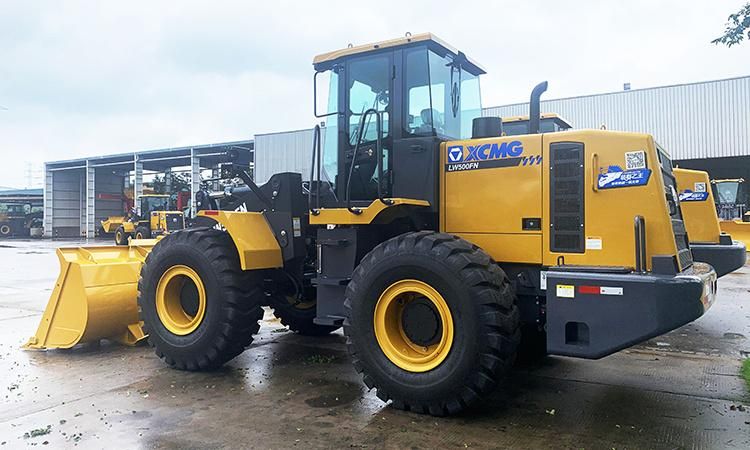

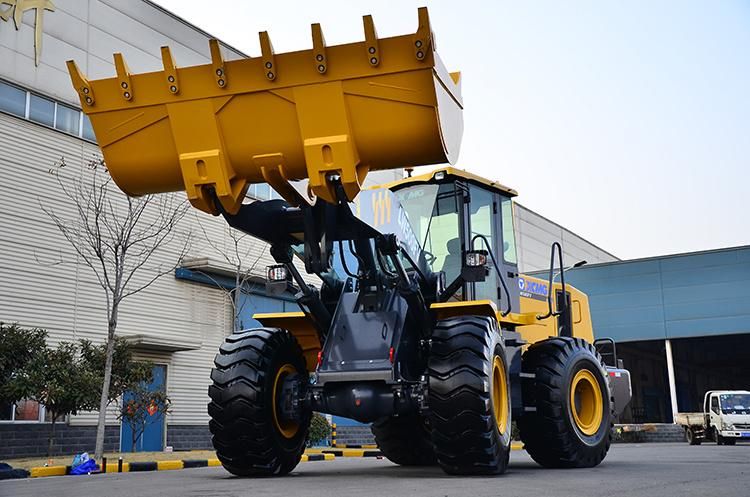

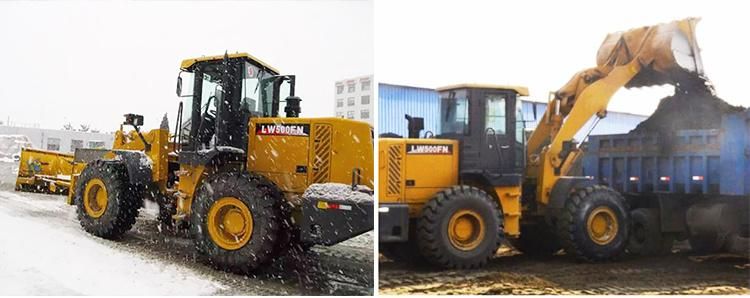

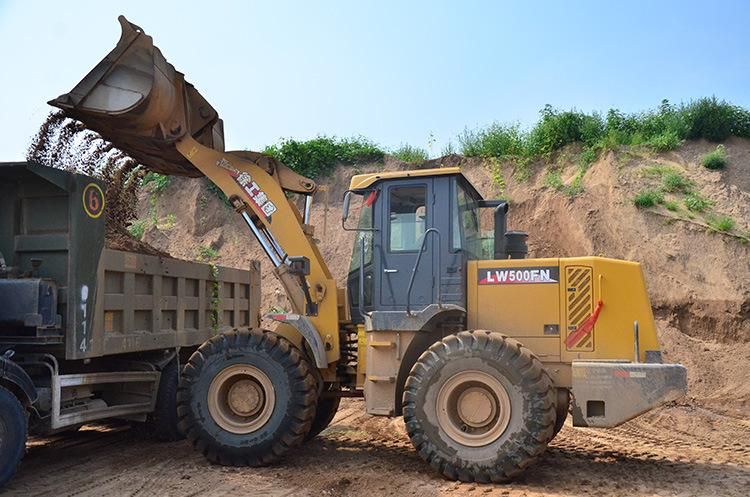

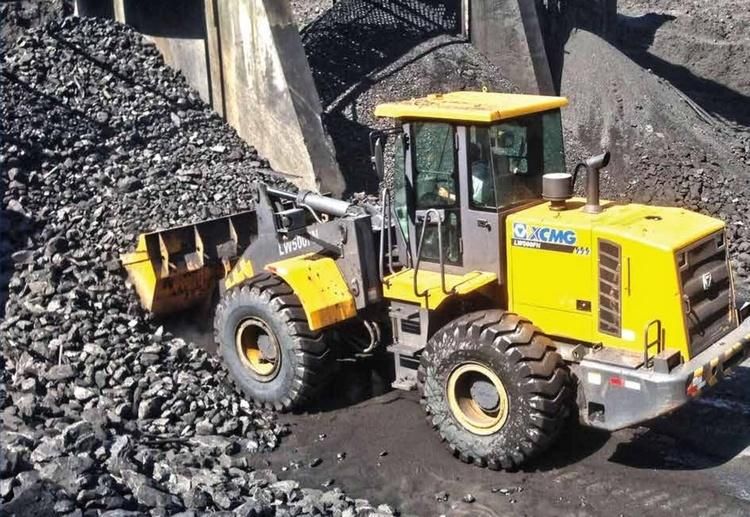

[Product Picture]

[Company Information]






[FAQ]
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
3: What about the delivery time?
A: 7-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
