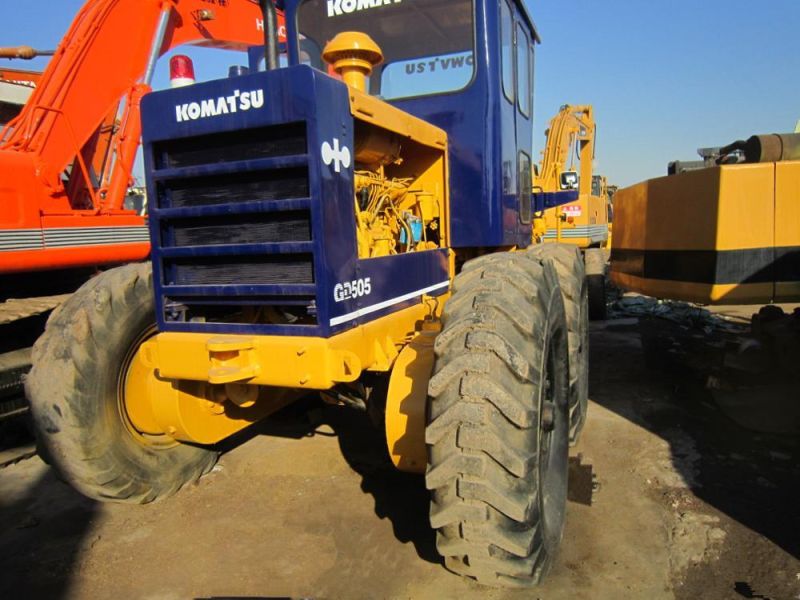

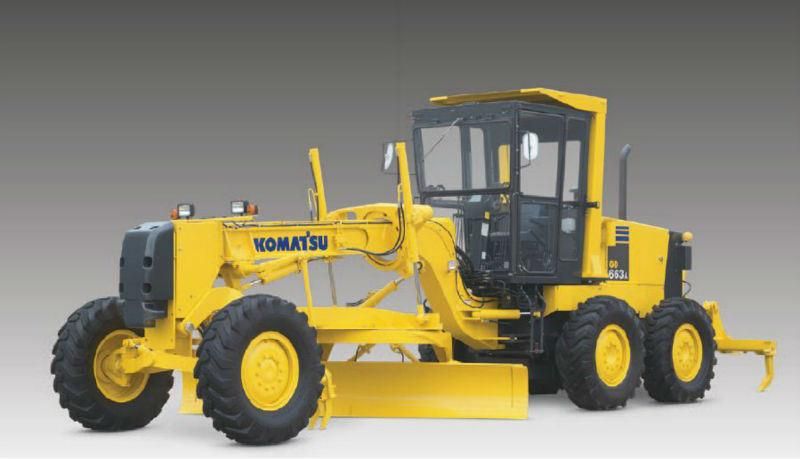

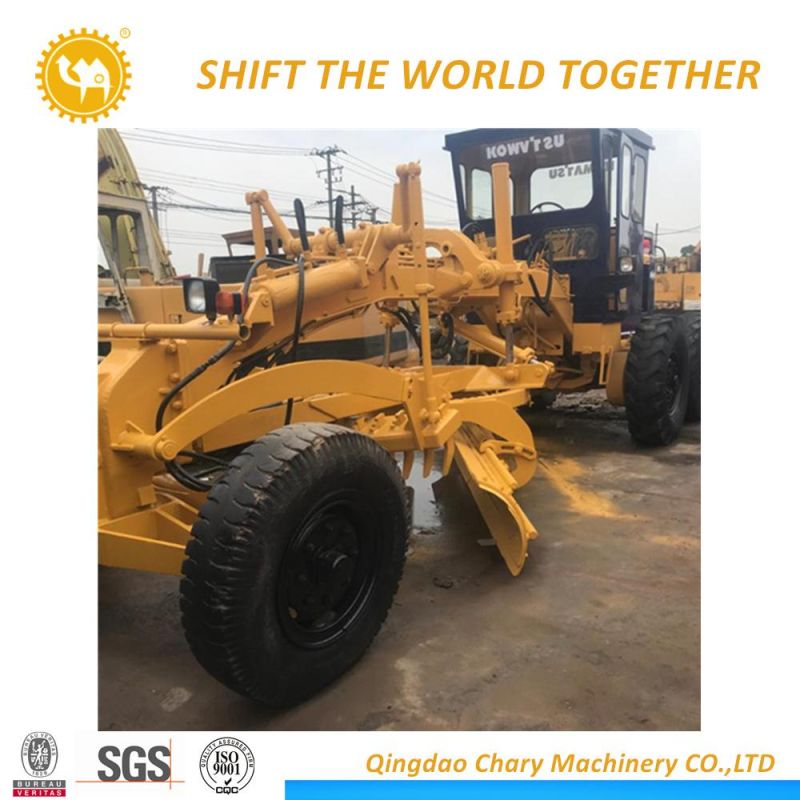

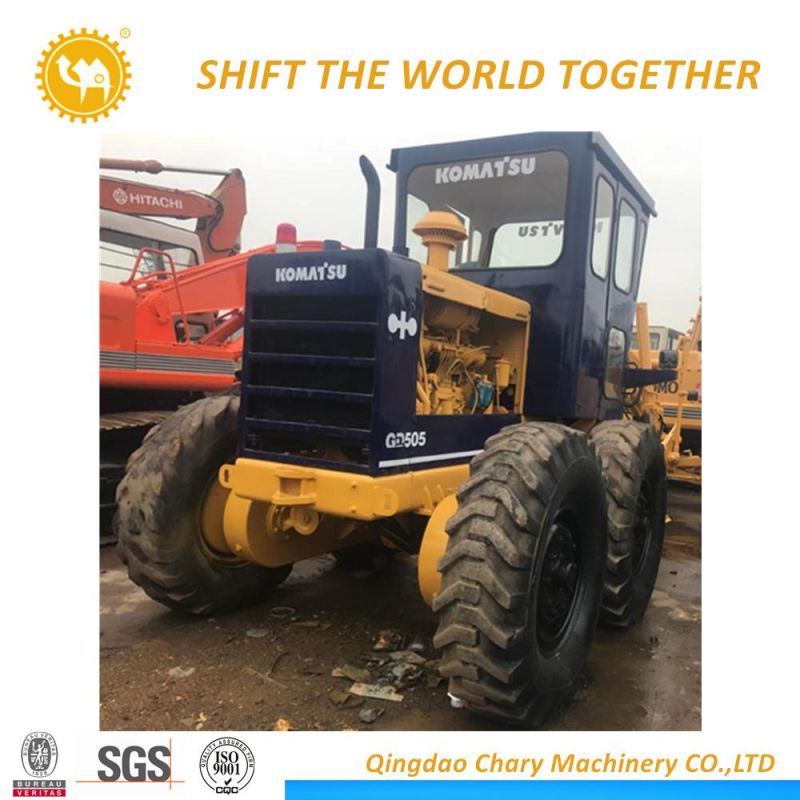

• Model NO.：motor grader
• Use：Road Construction
• Product Name：Used Motor Grader
• Delivery Time：Shipped in 30 Days After Payment
• Color：Yellow or Customers′ Optional
• Relief Valve Pressure：2150 Psi 14823.7 Kpa
• Overall Weight (Kg)：15930 Weight
• Pump Flow：193.1 L,Min
• Name：Second Hand Komatssu
• Operating Weight：12700 Kg Kgs
• Fuel Capacity：285L
• Transport Package：Nude
• Specification：8703*2630*3360
• Trademark：Komatsu
• Origin：China
• HS Code：8429209000
• Production Capacity：500 Unit,Month

direct drive power shift ,NUMBER OF GEARS - FORWARD-6gears /Reverse-6 gears

Qingdao Chary Machinery CO., LTD
Call: +86 150 5328 9929


Control System

• 7 position link bar with electric over hydraulic control allows ease of operation from within the cab
• Optimum blade reach capability, quick DCM re-positioning for greater reach for better working on high bank side slope
• The link bar is essential for extending reach capability when cutting a bank slope or back slope of a ditch
• Replaceable bushings reduce service time and cost

Blade Float

• Standard blade float function allows blade to lower without hydraulic pressure for increased versatility
• Blade float is engaged by pushing the left and right lift cylinder controls all the way forward past the detent
• Provides protection for machine and pavement during snow removal and snow plowing

Hydraulic System

• Proportional Priority Pressure Compensating (PPPC) Valves contain specifically cut spools for motor grader applications, continuously matching of hydraulic flow and pressure to power demands, allowing ease of multi-function control for optimizing working efficiency
• World-class variable displacement piston pump, efficiently reduces power consumption and hydraulic system heat, improving fuel efficiency
• Load-sensing hydraulic system provides consistent and precise blade movement, improving finishing performance
• Inboard lock check valves within PPPC, prevents inadvertent cylinder movement and potential leaks
• Qingdao Chary Machinery CO., LTD
  Call: +86 150 5328 9929

Drawbar

• A-frame tubular design drawbar provides maximum strength and durability
• Replaceable drawbar draft ball (bolted - not welded) for less service time and cost
• Easy removal of wear shims to adjust drawbar

Front Frame

• Flanged box section design removes welds from high stress areas, improving reliability and durability
• Continuous top and bottom plate construction provides consistency and strength, improving front frame durability
• Hydraulic hose routing minimizes exposure to damage and provides quick access for service
• Maintenance-free bushings improve durability and reduce overall service cost

Control Layout

• Short throw levers are efficiently spaced, allowing ease of multi-function control
• Short lever travel (40mm) with low lever effort reduces operator fatigue
• Qingdao Chary Machinery CO., LTD
  Call: +86 150 5328 9929

Large Cab

• High performance dashboard with 3 levels alarming monition system
• Cab mounted on the front frame provides exceptional view to blade and front axle even during articulation
• Large cab with 1.9m height and 30% larger space than most competitors, provides exceptional comfort

Experience
10 years experience of production,sales,research and development in the field of special trucks.

Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.

Qingdao Chary Machinery CO., LTD
Call: +86 150 5328 9929


Good quality
Has solid technology, advanced equipments ;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with SGS,BV certifcate as well.

Chassis supply

We have a very good long term cooperation relationship with chassis manufacturer, Such as SINOTRUK, BEIBEN, FAW, FOTON, IVECO, SHACMAN, SHANTUI, CIMC, DONGFENG and so on.

(1) More than 300 workers ,large and advanced production;
(2) Have professional engineer,can offer the best solutions;
(3) With keeping good relation with SINOTRUK, FOTON, ISUZU, DFAC, FOTON, SHACMAN chassis factory.
(4) Build strict QC team to guarantee the quality;
(5) Own good sales team, can offer warm follow-up service.

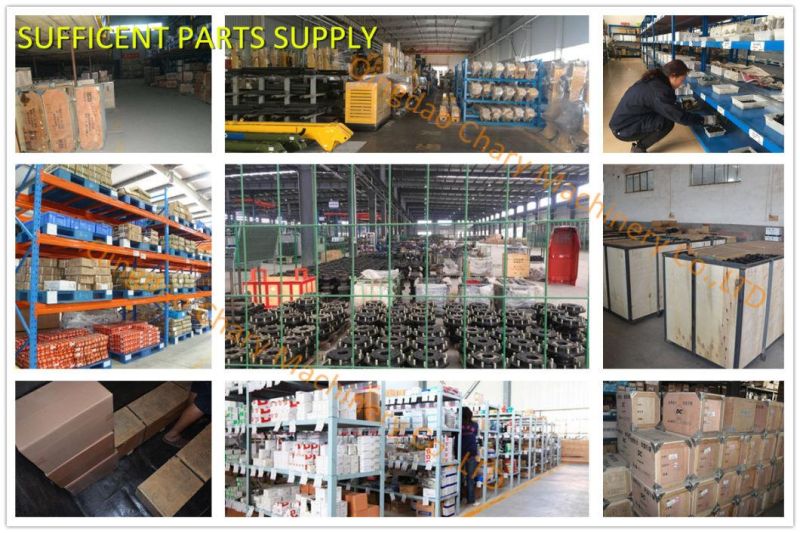

(6) Spare Parts Supply:

Qingdao Chary Machinery CO., LTD
Call: +86 150 5328 9929


We have our own spear parts departments,have strong production and distribution capability. We can satisfy your demand within 2-7 days. We always do our best to solve the problems, and put our customers' interests in the first place. And We can Supply Spare Parts For Many Brands, Such as SINOTRUK, BEIBEN, FAW, FOTON, IVECO, SHACMAN, SHANTUI, CIMC, DONGFENG and so on.

1, How to purchase the trailer truck from your company?
You can choose the model from our website, also you can tell our sales manger your specific requirements and we will recommend the suitable model to you. After confirming the model and price, we can sign the contract.

2,How to ensure product quality?
Firstly,we passed the international quality system certification. Secondly, Made in China Group has conducted field certification for our factory. Finally,You can entrust third party individuals or organizations to inspect our products before delivery.
 Qingdao Chary Machinery CO., LTD
Call: +86 150 5328 9929


3, How to visit your factory?
After you arriving at China, you can fly to Qingdao airport. Qingdao airport is located in Qingdao City, Shandong Province. Our driver will meet you at Qingdao airport and take you to our factory by car.
