• Model NO.：pd150
• Weights：1500kg
• Size：6.0*2.0*1.5m
• Maximum Operating Pressure：21MPa
• Hole Range：110-155mm
• Rod Length：3000mm
• DTH Hammer：4,5inch
• Drilling Depth：30m
• Adapter Excavator：15t
• Transport Package：Standard Boxes
• Specification：CE, SGS, ISO: 9001
• Trademark：Prodrill
• Origin：China
• HS Code：8401200000
• Production Capacity：100sets,Month

Basic Info.

Model NO. pd150 Weights 1500kg Size 6.0*2.0*1.5m Maximum Operating Pressure 21MPa Hole Range 110-155mm Rod Length 3000mm DTH Hammer 4/5inch Drilling Depth 30m Adapter Excavator 15t Transport Package Standard Boxes Specification CE, SGS, ISO: 9001 Trademark Prodrill Origin China HS Code 8401200000 Production Capacity 100sets/Month

Product Description

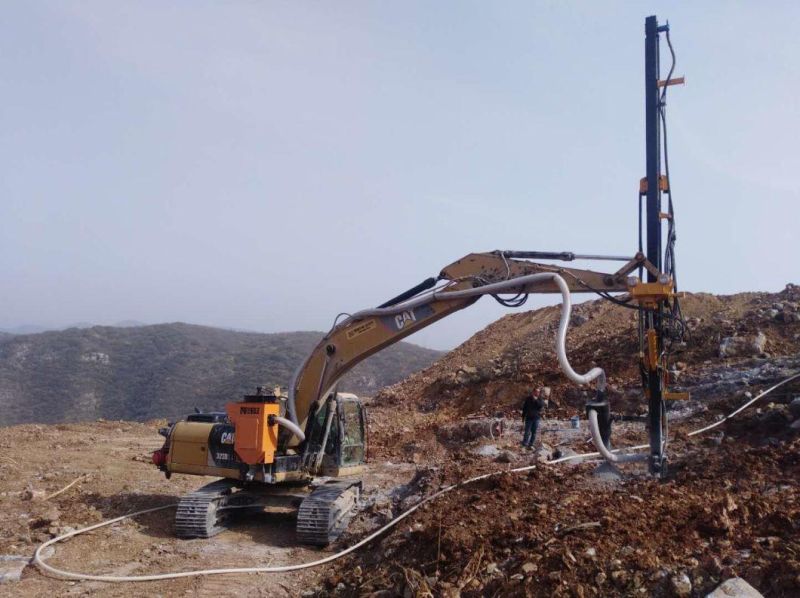

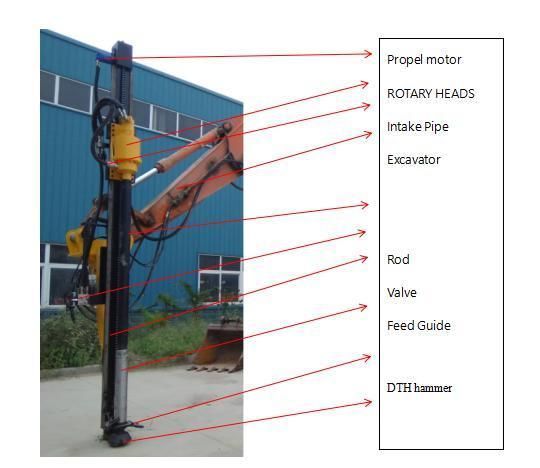

PD-150 Rock Drill Excavators Attachments (DTH)

1.Main features

1.High-end configuration: Imported hydraulic valve block.2.All the operations are controlled by the electrical-controlled appliance, and it is safe and comfortable for handlers working in the cab.3.There is a Diesel-moving screw compressor mounted in the cab at the rear counterweight, independent drive, strong wind pressure, air volume, without digging machine itself affect the system, slag better.



FAQ

Terms  & Conditions of Ordering:

1 .Payment Terms:

T/T (Telegraphic Transfer) or Western Union

2. Delivery Term:

Based on order quantity, normally it takes 25 days for production.

Only 2 or 3 days if we have stock on your request size.

3. Transportation:

Sample order: we suggest Courier express or by air

Bulk order: we suggest by air or by sea.

4. Quality & Service:

A. There will be strict inspection and testing for every order before shipping out.

B Our sales team and Technical Support will response for your question within 24 hours (Holidays Excluded)

C. Free replacement will provide once the failure confirmed caused or our product quality; Not satisfied with a refund.

About us





Exhibition & Customer
